Features:

• 1U Rack Mount Computer
• 4 x 3.5" Hot-Swap Drive Bays
• 1U 4-port 12Gbps Backplane
• 2 x Full-height & Full-length Expansion Slots
  1 x Low-profile Expansion Slot
• 4x 40x56mm Counter-rotation PWM Fans
• 2x 40x56mm Fans for AOC Cooling (Optional)
• Supermicro CSE-815BTQC-R860W Chassis
• 860W Redundant 80 Plus Platinum Power Supply
• 25.6" Depth Rack Mount Computer
• Due to the height of the chassis, the Motherboard I/O panel is not included

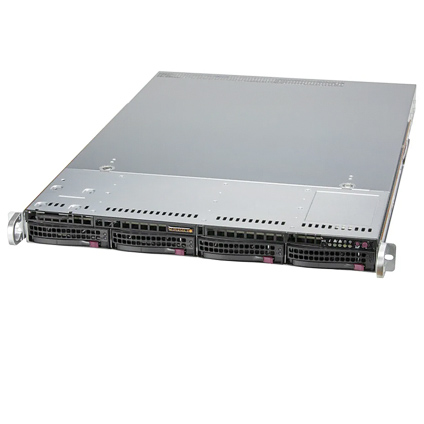

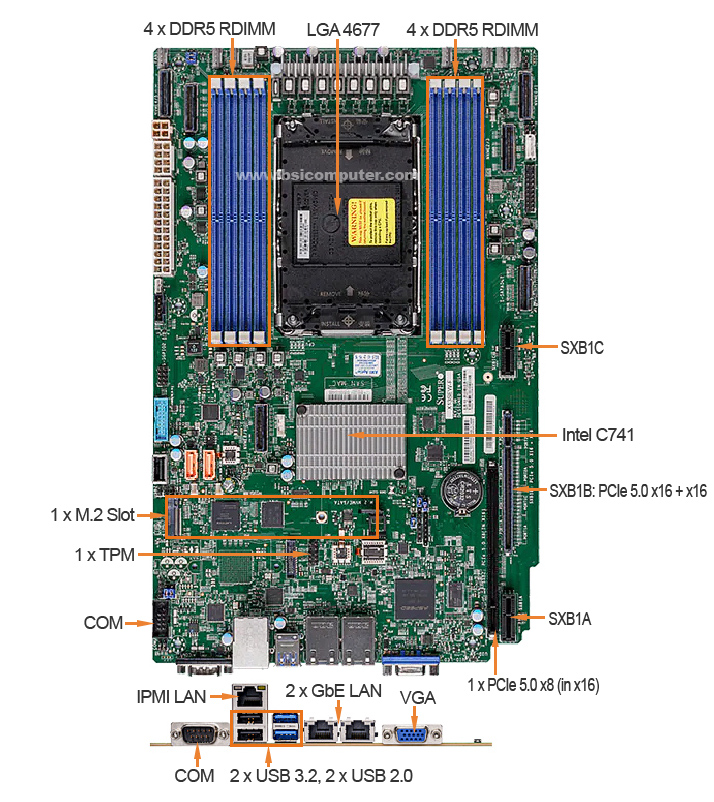

The RMS185 is a powerful and space-efficient 1U server computer optimized for X13 WIO (W series) motherboards, supporting board sizes up to 12.3" x 13.4". Designed for demanding enterprise workloads, it features four 3.5" hot-swap SAS/SATA drive bays connected via a 12Gbps backplane, with support for SAS or enterprise-grade SATA hard drives to ensure optimal reliability and performance. The system includes a Platinum-level 860W redundant power supply with a compact 54.5mm width for high efficiency and uninterrupted operation. Expansion capabilities include two full-height, full-length slots and one low-profile slot, offering flexibility for additional networking or storage controllers. Cooling is managed by four 40x56mm counter-rotating PWM fans, providing strong and adaptive airflow to maintain stable performance in high-density rack environments.
