Features:

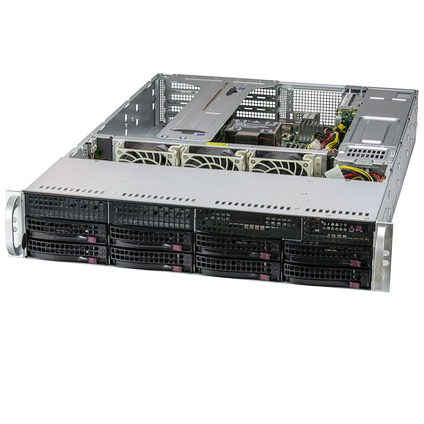

• 2U Rack Mount Computer
• ATX/E-ATX Form Factor
• 8 x 3.5" Hot-Swap SAS/SATA Drive Bay
• 2 x Fixed 3.5" Drive Bays
• Broadcom MegaRAID 9560-8i 8-Port Tri-Mode Controller Card
• 2 x 2.5" Rear Hot-Swap Drive Bays (Optional)
• 1 x Slim DVD+/-RW Optical Drive (Optional)
• 3 x Low-profile Expansion Slots with Riser Card Required
• 4 x Full-height, Full-length Expansion Slots with Riser Card Required
• 3x 80mm Heavy Duty Fans with PWM Fans Speed Control
• Supermicro CSE-825B2TQC-R920W Chassis
• 920W Redundant Single Output Power Supply Platinum Level
• 25.5" Depth Rack Mount Chassis

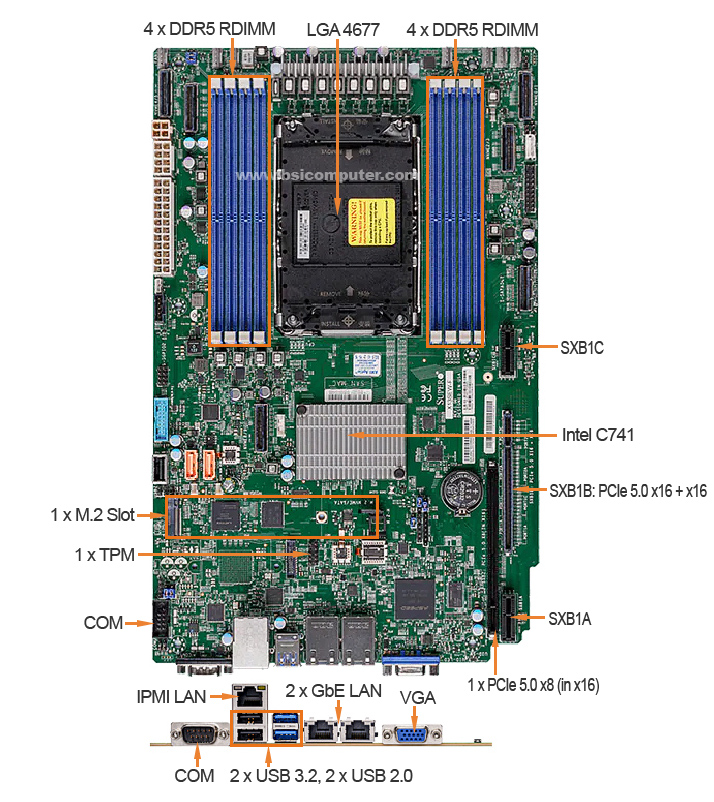

The RMS285 is a high-performance server computer engineered for enterprise and data center environments, optimized for X13 WIO (W series) motherboards. It supports 5th and 4th Gen Intel Xeon Scalable processors in a single LGA-4677 (Socket V0) configuration, with CPU TDP up to 350W. Powered by the Intel C741 chipset, the system accommodates up to 2TB of DDR5-5600 ECC RDIMM memory across eight DIMM slots. Storage flexibility is exceptional, featuring eight 3.5" hot-swap SAS3/SATA bays, two fixed 3.5" bays, and an optional dual 2.5" rear HDD kit, supporting 12Gbps SAS3 and hybrid drives. Expansion is provided through four full-height and three low-profile PCI slots, plus M.2 and NVMe connectivity via PCIe 5.0 interfaces. The system includes dual Intel I210 1GbE LAN ports, 10 SATA3 ports, and versatile I/O including VGA, COM, TPM header, and multiple USB 3.2/2.0 ports. Cooling is handled by three heavy-duty 80mm PWM fans, and power is supplied by a 1U 920W Platinum-level redundant PSU, ensuring efficiency and reliability for mission-critical applications.
