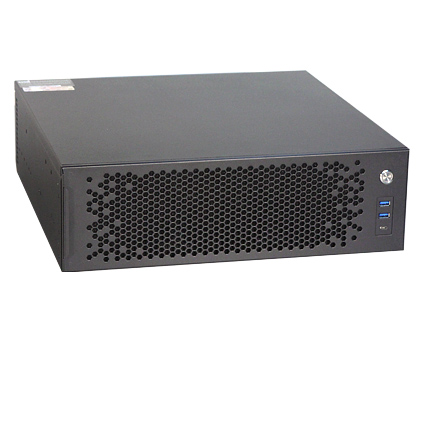

RMS3170-AMD 3U Rackmount Computer

Features:

  • 3U Rack Mount Industrial Computer
  • E-ATX/SSI-EEB/SSI-CEB/ATX Motherboard (12.8" x 13", 12" x 13", 12" x 10.5", 12" x 9.6")
  • 6 x 2.5" Drive Bays
  • 8 x Full Height Expansion Slots

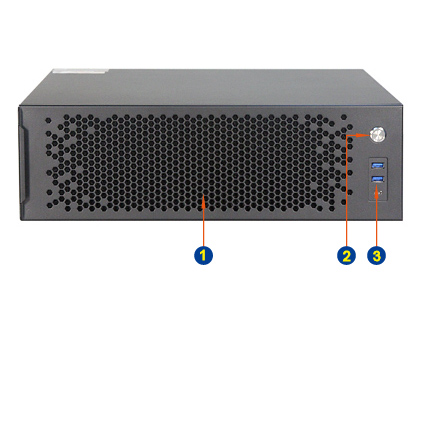

  • Front Control: Power On/Off, 2 x USB 3.0
  • Server Grade All-In-One(AIO) Liquid Cooler (Optional)
  • 850W/1000W SFX Power Supply
  • Material of Chassis: ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel, Made in USA
  • 17.04" Depth Rack Mount PC

The RMS3170-AMD is a robust rackmount chassis designed for high-performance computing applications, offering broad compatibility with SSI-EEB, SSI-CEB, eATX, and XL ATX motherboards up to 13 inches deep. Engineered for efficient airflow, it supports mounting for up to three 120mm fans and accommodates air coolers up to 110mm in height. Its flexible storage bracket allows configurations of up to three 3.5" HDDs, eight 2.5" SSDs, or a mix of both, ensuring adaptable storage solutions. The chassis also includes eight PCIe slot cutouts for expansion cards and GPUs up to 115mm tall and supports a single SFX or SFX-L power supply. Proudly made in the USA from domestic materials, the RMS3170-AMD is backed by a guaranteed availability of over eight years, making it ideal for long-term deployments.

Need a Custom Solution Not Offered Online? Click the Button Below.

Base Configurations

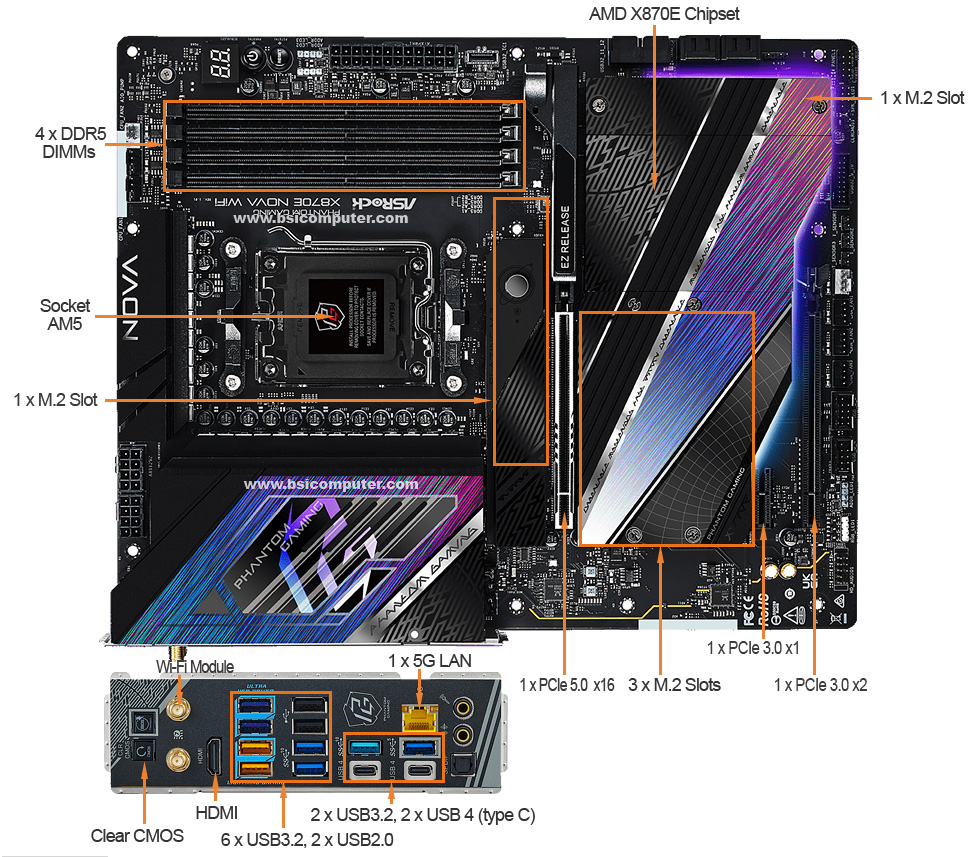

3U Rackmount Computer with ASRock X870E Nova WiFi Motherboard


  • ASRock X870E Nova WiFi ATX Motherboard
  • AMD AM5 Socket for Ryzen Processors
  • AMD X870E Chipset
  • DDR5 Memory
  • M.2 NVME Solid State Drive
  • 4 x M.2 Slots
  • 2 x USB4 Ports (40Gbps, Type-C)
  • Built-in 5GbE LAN

Configured:

$1,619.00

Customize

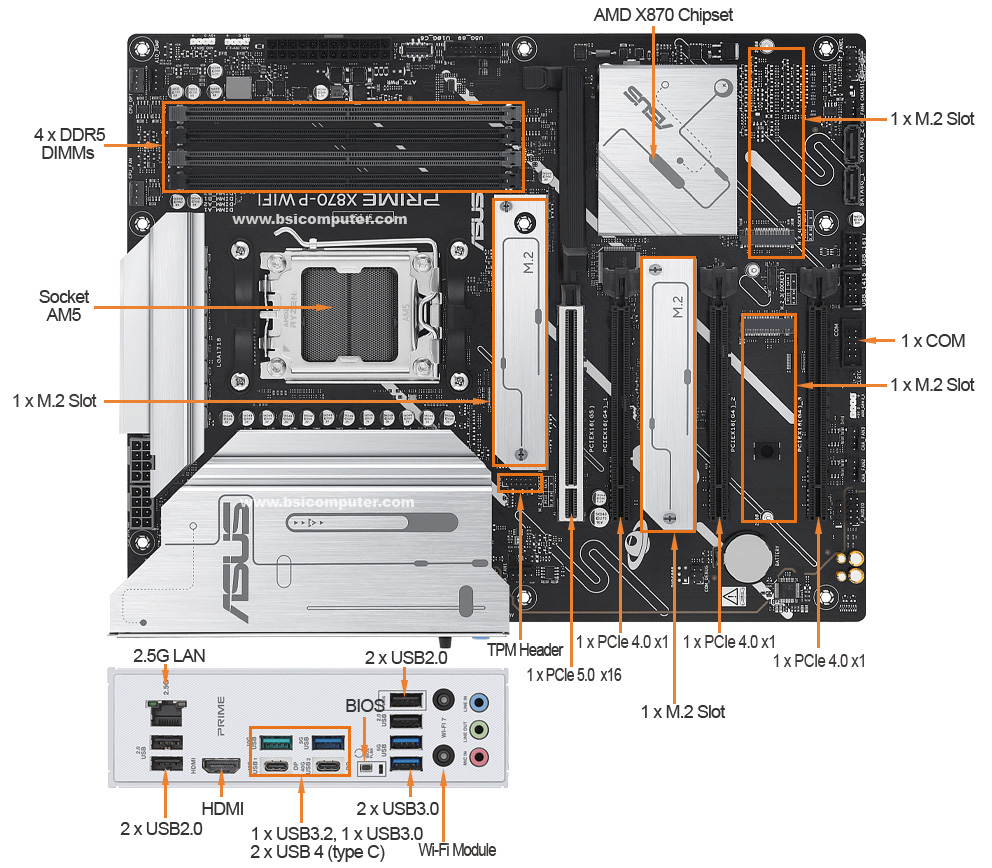

3U Rackmount Computer with ASUS PRIME X870-P WIFI Motherboard


  • ASUS PRIME X870-P WIFI ATX Motherboard
  • AMD AM5 Socket for Ryzen Processors
  • AMD X870 Chipset
  • DDR5 Memory
  • M.2 NVME Solid State Drive
  • 4 x M.2 Slots
  • 2 x USB4 Ports (40Gbps, Type-C)
  • 1 x TPM Header
  • Built-in 2.5GbE LAN

Configured:

$1,479.00

Customize

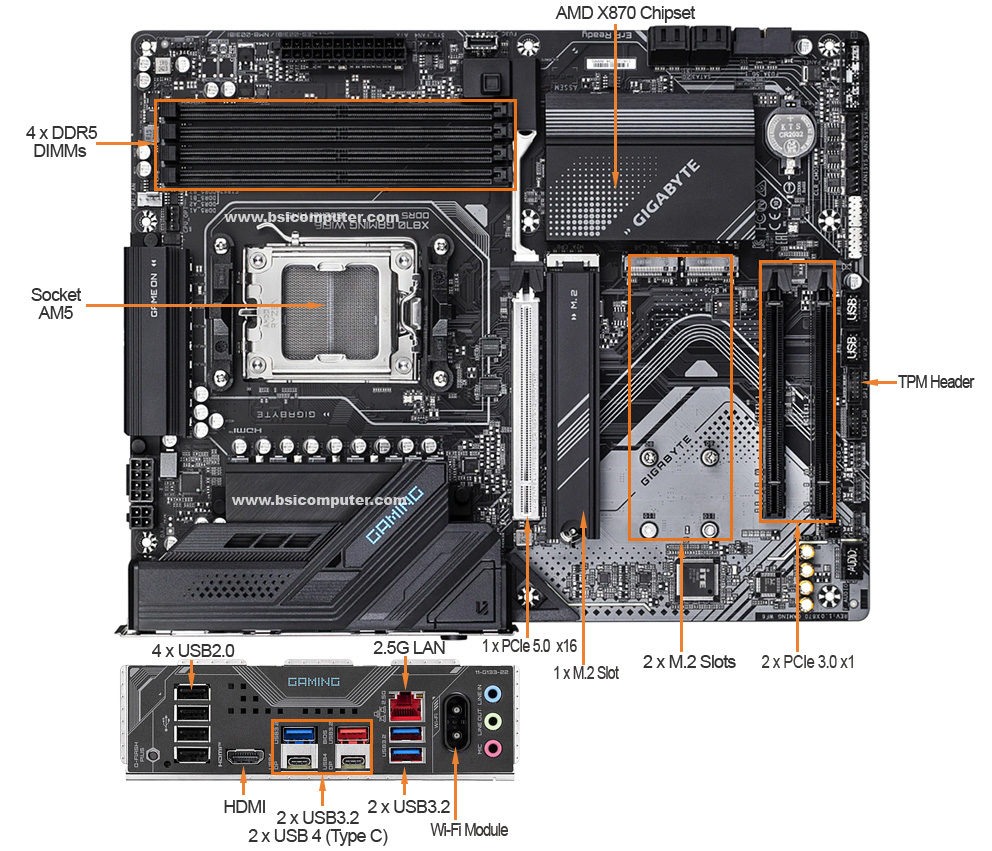

3U Rackmount Computer with Gigabyte X870 GAMING WIFI6 Motherboard


  • Gigabyte X870 GAMING WIFI6 ATX Motherboard
  • AMD AM5 Socket for Ryzen Processors
  • AMD X870 Chipset
  • DDR5 Memory
  • M.2 NVME Solid State Drive
  • 3 x M.2 Slots
  • 2 x USB4 Ports (40Gbps, Type-C)
  • 1 x TPM Header
  • Built-in 2.5GbE LAN

Configured:

$1,395.00

Customize
