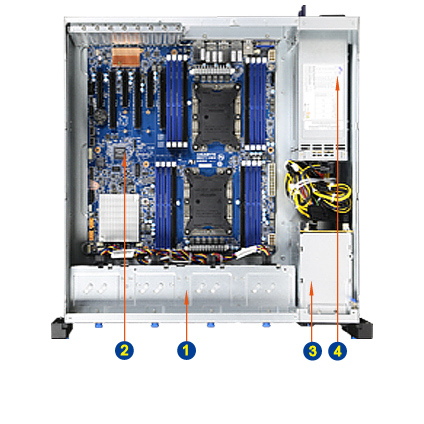

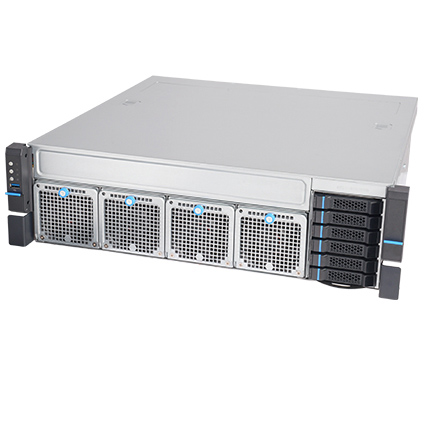

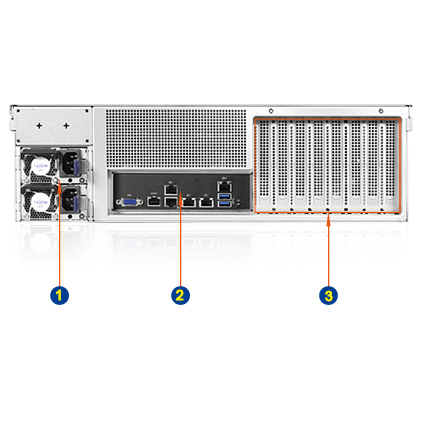

RMS362 3U Industrial Rack Mount Computer
Features:
- 3U Rack Mount Industrial Computer
- EATX/ATX Motherboard (Support 12" x 13", 12" x 10.5", 12" x 9.6")
- 6 x 2.5" Hot-swap Drive Bays
- 8 x Full Height Expansion Slots

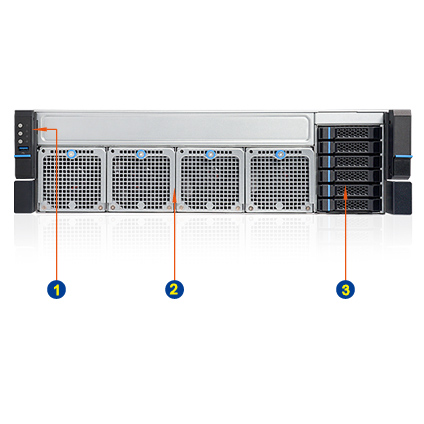

- Front Control: Power On/Off, System Reset, UID, 1 x USB 3.0
- 4 x Hot-swap 80mm 11000 RPM Cooling Fans
- 1600W Redundant Power Supply
- 17.72" Short-depth Rack Mount PC
The RMS362 computer chassis is a compact yet highly adaptable solution, measuring just 450mm in ultra-short chassis length, making it ideal for various environments where space is at a premium. This chassis is perfectly suited for footprint minimization while offering exceptional versatility. It boasts an optimized I/O design, specifically tailored for machine learning applications in edge sites. The RMS362 features up to eight full-height PCIe expansion slots, providing ample room for GPU and FPGA accelerator cards. Additionally, it's equipped with the latest tool-less design, simplifying upgrades and maintenance. With tool-less storage, HDD trays, system fans, and PCIe riser brackets, this chassis ensures ease of use and efficient configuration adjustments for your computing needs.
Need a Custom Solution Not Offered Online? Click the Button Below.
Base Configurations

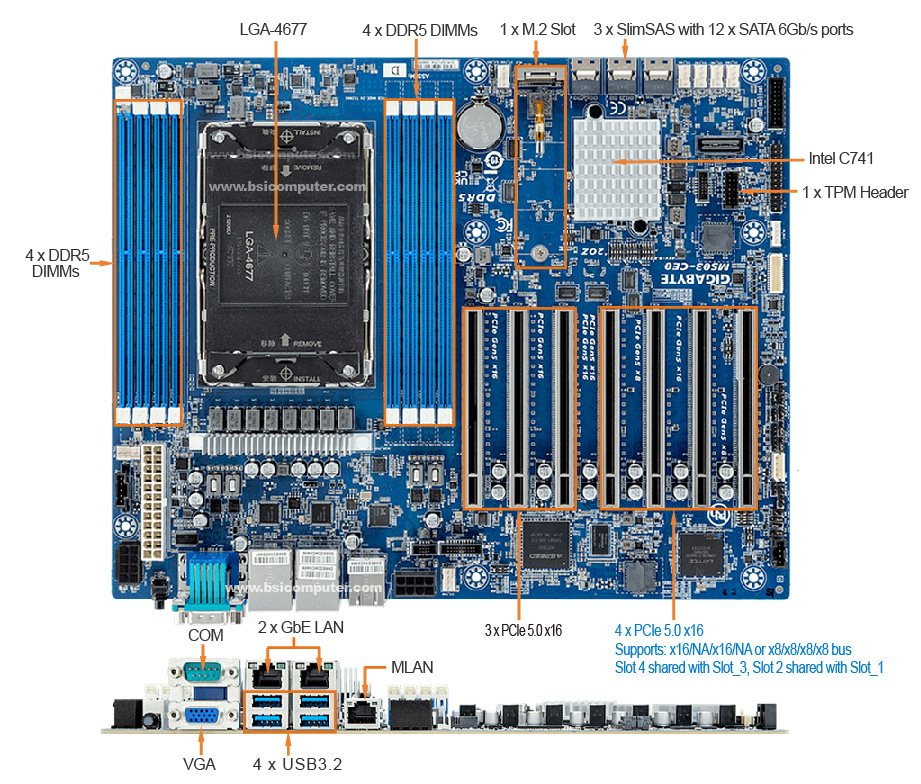

- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN

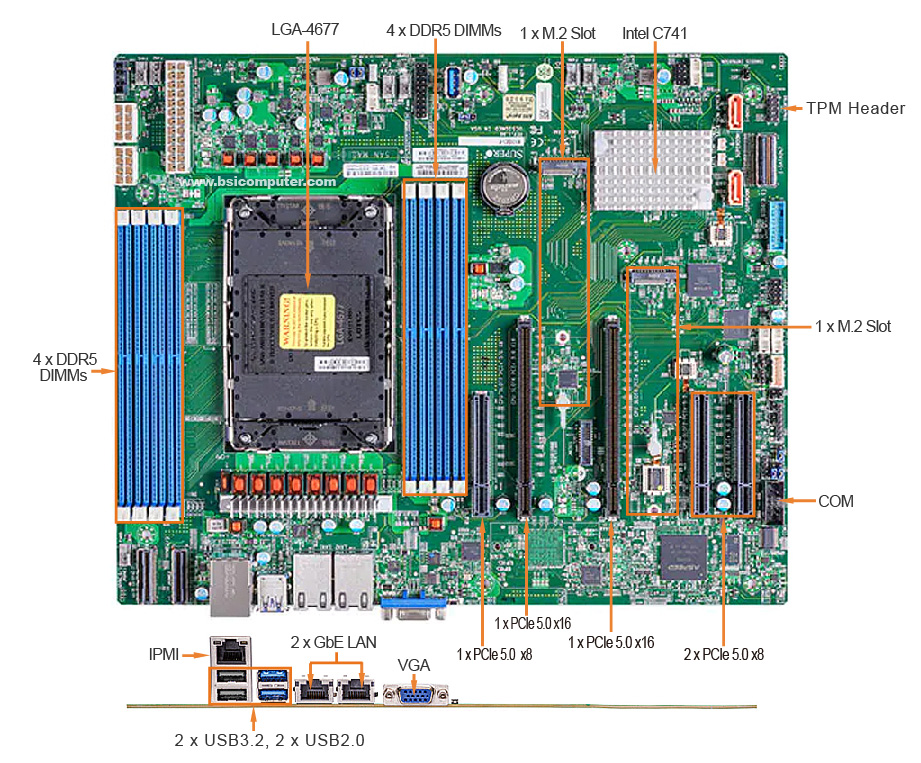

- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)

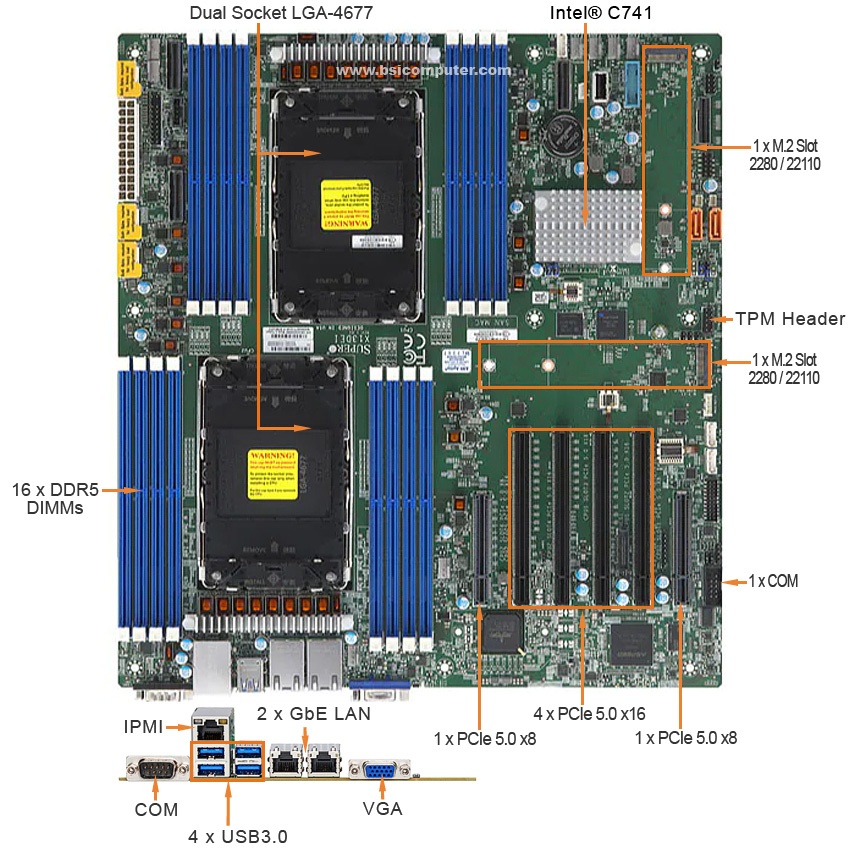

- Supermicro X13DEI Motherboard
- 2x 4th/5th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13DEI-T, Optional)

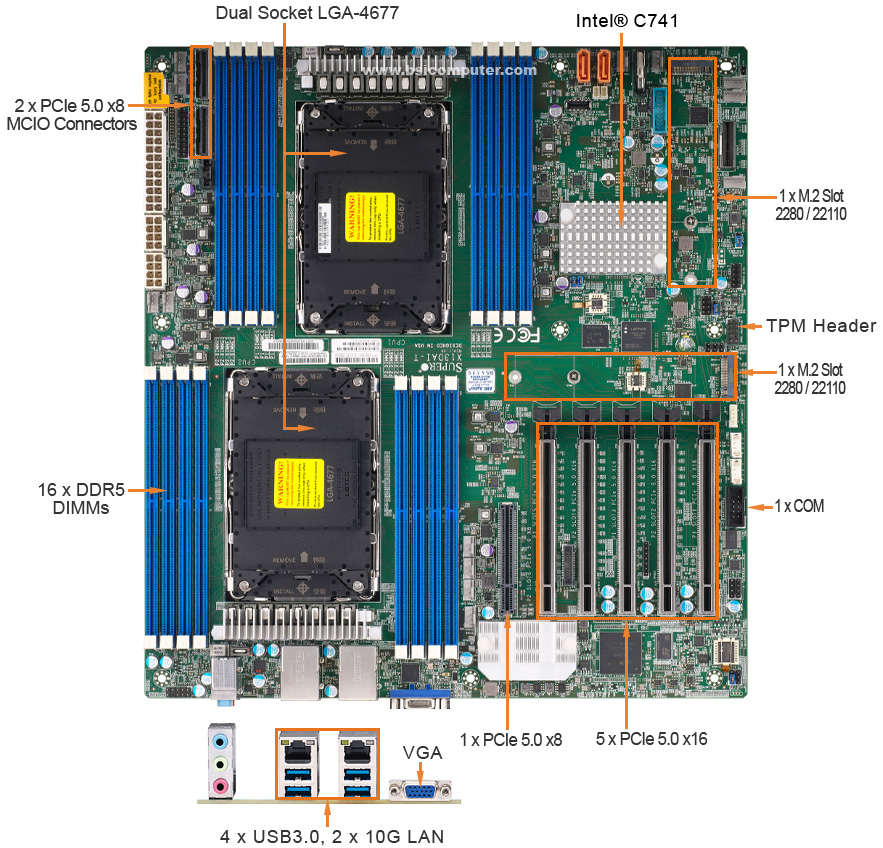

- Supermicro X13DAI-T Motherboard
- 2x 4th/5th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 2 x PCIe 5.0 x4 M.2 Slots
- 4 x NVMe Ports PCIe 5.0 x4 via 2 MCIO Connectors
- 5 x PCIe 5.0 x16, 1 x PCIe 5.0 x8
- 1 x TPM Header
- Built-in 2 x 10G LAN

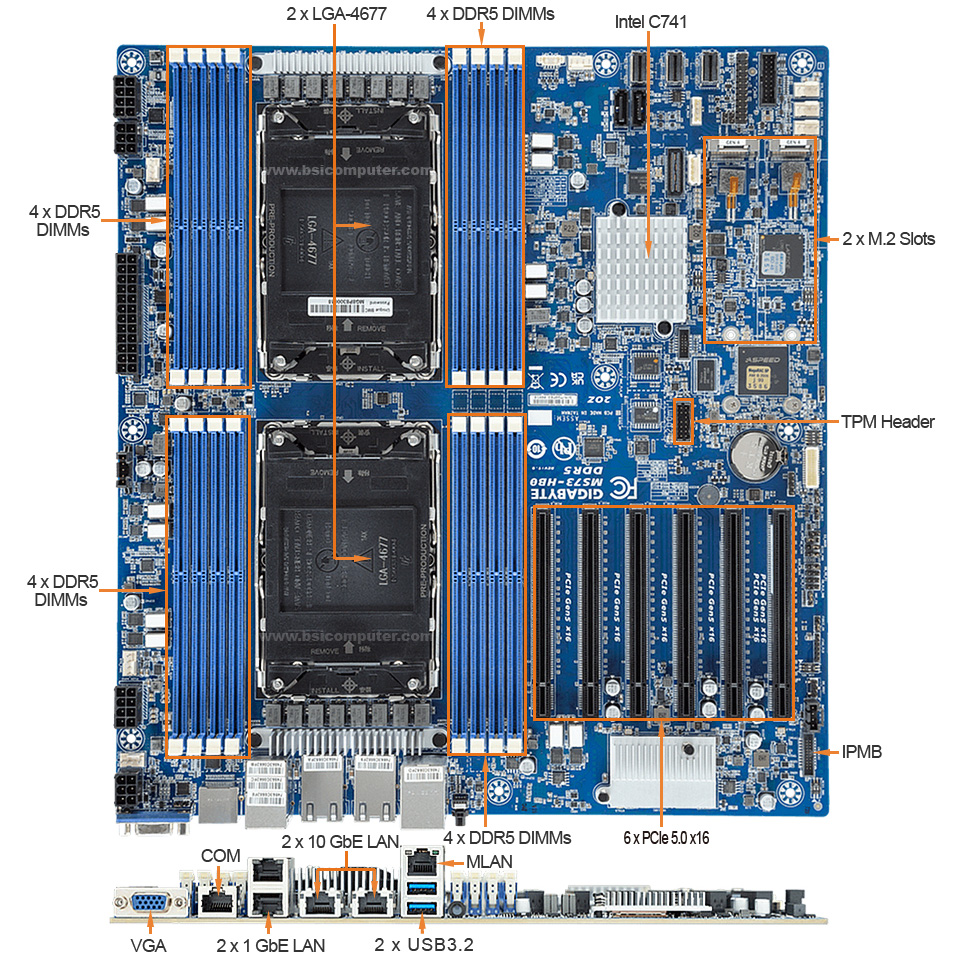

- GIGABYTE MS73-HB0 Motherboard
- 2 x 4th/5th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 1 x TPM Header
- Built-in 2 x 10GbE LAN, 2 x 1GbE LAN, 1x MLAN
