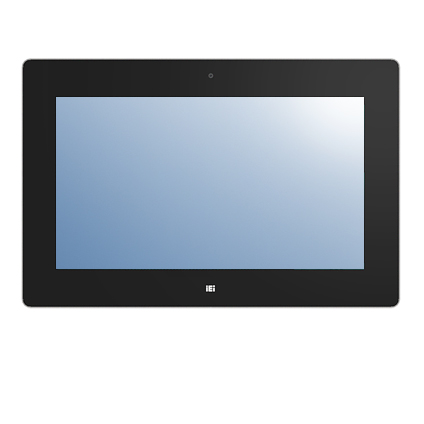

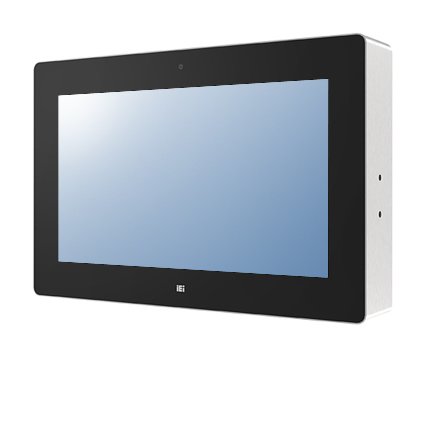

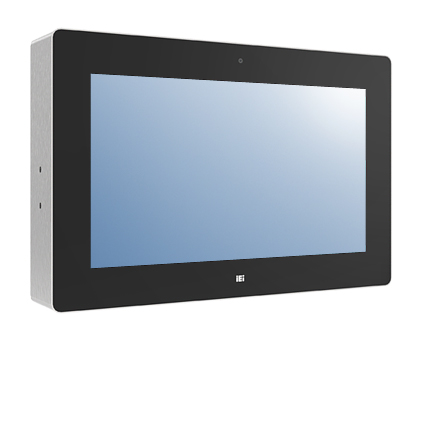

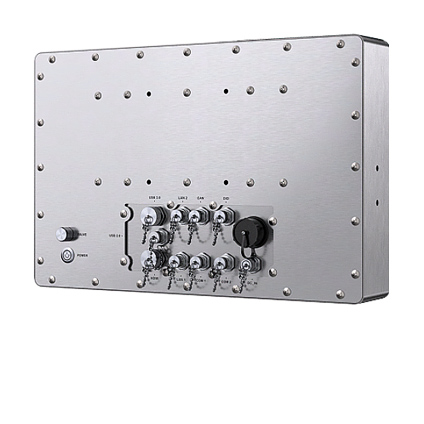

SHIELD-185 18.5" Stainless Steel Industrial Panel PC
Features:
- 18.5" 1920 x 1080 500 nits FHD Display with Projected Capacitive Multi-touch Screen
- Anti-UV / Anti-glare Coating, Support Gloves, Surface Hardness: ?7H
- 304 Stainless Steel Housing
- Full Body IP66 Rate with M12 Fully Waterproof Interface
- Intel Atom X7433RE / X7835RE Processor
- 1 x SO-DIMM DDR5-4800 up to 16GB (Pre-installed 8GB)
- 1 x M.2 M-Key 2280 (PCIe Gen3 x2)
- High-speed Transmission Fiber Optic Module (Optional)
- WiFi 6E and Bluetooth 5.2 (Optional)
- 10~28V Wide Voltage Input
- Wide Operating Temperature Range: -22°F to +131°F
The SHIELD-185 is a compact yet powerful 18.5-inch stainless steel panel PC built for industrial durability. It features an Intel Atom x7 processor (up to 3.4 GHz) with DDR5-4800 RAM (up to 16GB, ECC supported) and M.2 SSD storage, ensuring efficient performance. The full HD (1920x1080) 500-nit LCD comes with PCAP touch (anti-UV/AR coating) and is housed in an IP66-rated enclosure, operating in extreme temperatures (-30°C to 55°C). Connectivity includes dual 2.5GbE LAN, Wi-Fi 6E/BT 5.2 (optional), RS-232/422/485, CAN bus, GPIO, and USB 3.2 Gen1. Additional options include a wide-angle camera, 128GB eMMC, and expandability via M.2 slots. Certified for CE/FCC Class A, it supports wide-range DC 10-28V power and VESA/yoke mounting, making it ideal for rugged industrial automation and control applications.
