TANK-630-EHL Fanless Embedded PC
Features:
- Intel Celeron J6142 2.0 GHz Quad-core Processor
- 2 x DDR4 3200MHz SO-DIMM (8GB pre-installed)(Max. 32GB)
- 1 x 2.5'' SATA 6Gb/s HDD Bay
- M.2: 1 x 2280 M-key (PCIe Gen3 x2), 1 x 2230 A-key (PCIe Gen3 x1/USB 2.0), 1 x 2042/52/80 B-key (SATA/USB 2.0)

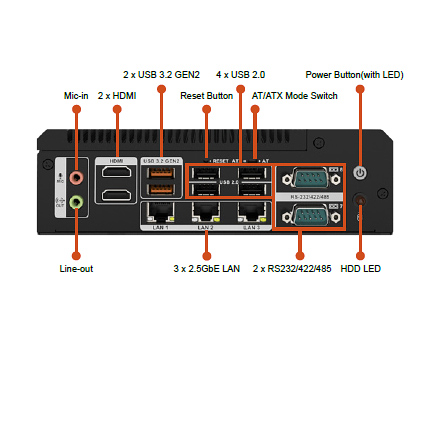

- Multiple COM Ports: 6 x RS-232 and 2 x RS-232/422/485
- 2 x HDMI dual independent display
- 3 x 2.5GbE LAN Ports
- CE/FCC compliant

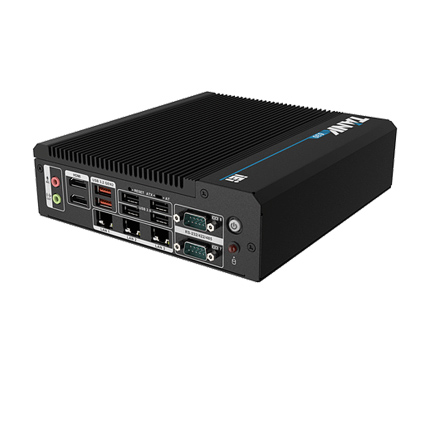

The TANK-630-EHL rugged embedded system is a robust computing solution designed for reliability in demanding environments. Powered by an Intel Celeron J6412 processor, this fanless system ensures efficient and stable performance. It boasts impressive connectivity with six RS-232 and two RS-232/422/485 COM ports, catering to diverse interfacing needs. With the capability of dual independent displays through 2 x HDMI ports, it facilitates versatile visual output. This system offers flexible storage options, supporting M.2 and a 2.5" SATA storage device. Moreover, its compliance with CE/FCC standards ensures adherence to regulatory requirements, making it a dependable choice for industrial applications.
Barebone & Base Configurations
- Intel Celeron J6142 2.0 GHz Quad-core Processor
- 8GB DDR4 SO-DIMM Memory
- 250GB M.2 Solid State Drive

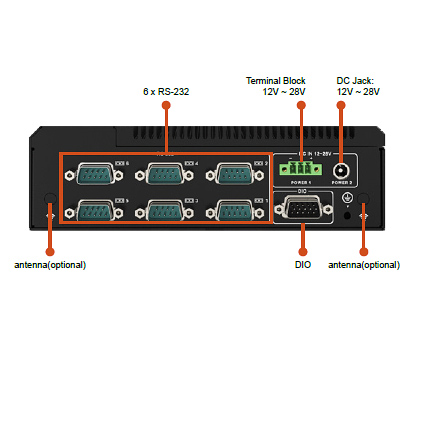

- 6 x RS-232, 2 x RS-232/422/485
- 2 x USB 3.2, 4 x USB 2.0
- 3 x 2.5 GbE LAN
- 2 x HDMI
- 1 x M.2 M-key, 1 x M.2 A-key, 1 x M.2 B-key
- 1 x DIO, 1 x TPM
- 10V-28V DC Power Input, 84W Power Adapter (Optional)
