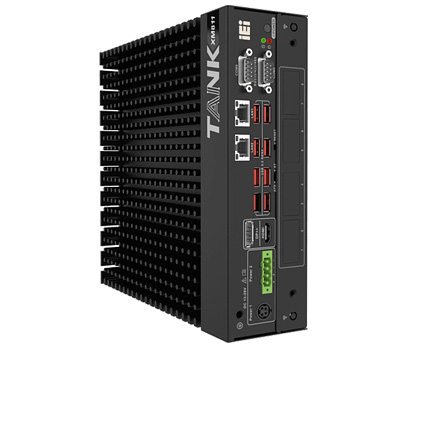

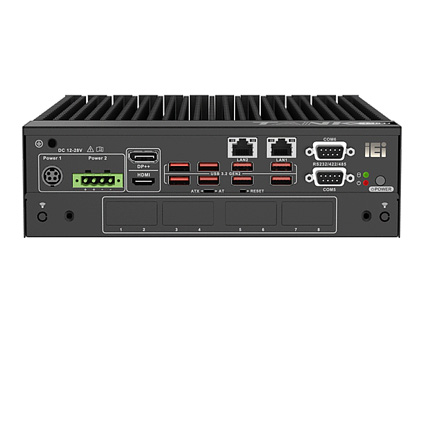

TANK-XM811 Ruggedized Fanless Embedded Computer


  • 12th Generation Intel® Core™ i5-12500TE/i7-12700TE/i9-12900TE Processor
  • Intel® R680E chipset
  • 2 x DDR4 SO-DIMM Memory (Max. 64GB)
  • 1 x 2.5” SATA 6Gb/s HDD/SSD Bay
  • 1 x PCIe x4 M.2 Slot, 2280 M-key
  • 1 x 2230 M.2 A-key (USB+PCIe x1, supports vPRO)

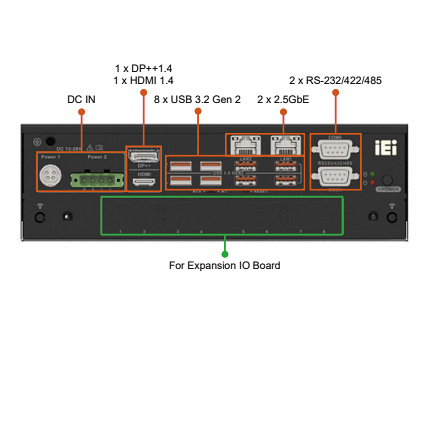

  • 2 x 2.5GbE LAN Ports
  • Multiple USB Ports and Serial Ports
  • Multiple Internal Expansion Boards for Flexible Selection
  • Various Optional Backplanes and Chassis
  • CE/FCC Compliant

The TANK-XM811 stands as a high performance fanless embedded computer. Powered by Intel® Core™ processors, including options like the i5-12500TE, i7-12700TE, and i9-12900TE, this compact system boasts up to 16 cores and clock speeds of up to 4.8GHz while maintaining a 35W TDP. With 2 x 2.5GbE ports, multiple USB and serial ports, and internal expansion boards, connectivity and customization options are abundant, ensuring seamless integration with peripherals and tailored functionality. Moreover, its compatibility with various optional backplanes and chassis allows for adaptability to specific needs. As a testament to its reliability, the TANK-XM811 holds CE/FCC compliance, underscoring its adherence to industry standards.

Barebone & Base Configurations

TANK-XM811 Fanless Embedded PC Configurations

  • Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
  • Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive

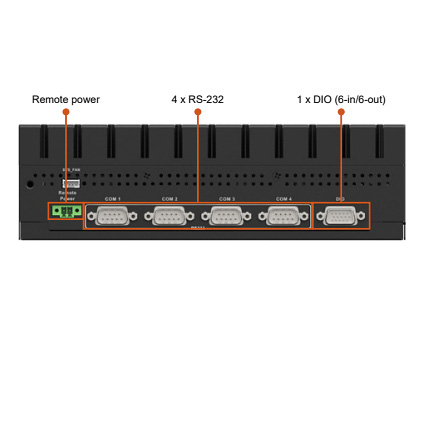

  • 4 x 232 (DB-9), 2 x 232/422/485 (DB-9)
  • 8 x USB3.2 Gen 2
  • M.2 Wireless Module Kit (Optional)

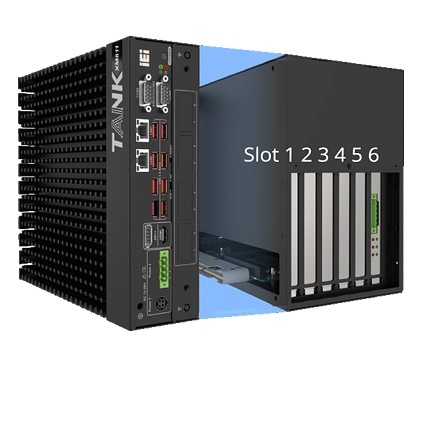

  • Expansion Backplane (Optional)
  • Expansion Chassis (Optional)
  • Internal Expansion Boards
  • 12-bit Digital I/O, 6-bit Input/6-bit Output
  • Built-in 1 x HDMI, 1 x DP++ and Audio
  • Built-in 2 x 2.5GbE LAN Ports
  • 12~28V DC Power Connector

Barebone Only:
