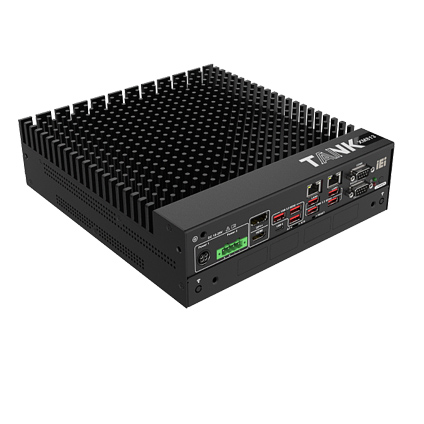

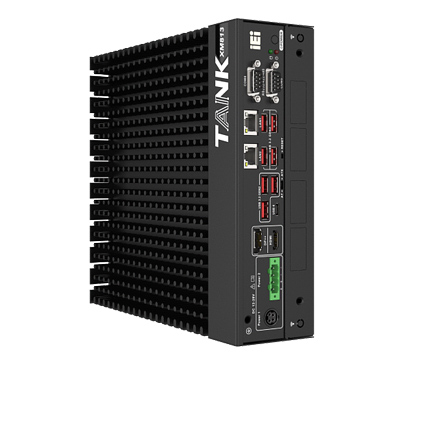

TANK-XM813 Ruggedized Fanless Embedded Computer

Features:

  • Intel Core Ultra 9 285T 1.4 GHz (up to 5.4 GHz, 24-core, 35W TDP)
  • Intel Core Ultra 9 285 2.5 GHz (up to 5.6 GHz, 24-core, 65W TDP)
  • Intel Core Ultra 7 265T 1.5 GHz (up to 5.3 GHz, 20-core, 35W TDP)
  • Intel Core Ultra 7 265 2.4 GHz (up to 5.3 GHz, 20-core, 65W TDP)
  • Intel Core Ultra 5 225T 2.5 GHz (up to 4.9 GHz, 10-core, 35W TDP)
  • Intel Core Ultra 5 225 3.3 GHz (up to 4.9 GHz, 10-core, 65W TDP)
  • Intel W880 chipset
  • 2 x DDR5 SO-DIMM Memory (16GB pre-installed, Max. 96GB)
  • 2 x 2.5” SATA 6Gb/s HDD/SSD Bay (RAID 0/1 Supported)
  • 1 x M.2 2280 M-key, 1 x M.2 2230 A-key
  • 2 x 2.5GbE LAN Ports
  • Multiple USB Ports and Serial Ports
  • Multiple Internal Expansion Boards for Flexible Selection
  • Various Optional Backplanes and Chassis
  • CE/FCC Compliant

The TANK-XM813 is a high-performance fanless embedded computer designed for demanding industrial and edge computing applications. At its core is an LGA1851 socket supporting next-generation Intel Core Ultra Processors (Series 2, Arrow Lake-S) with a maximum 65W TDP, providing powerful processing in a rugged, silent design. Connectivity is robust, featuring two 2.5GbE ports for high-speed networking, alongside multiple USB and serial ports for peripheral integration. Its flexibility is a key advantage, offered through multiple internal expansion boards and various optional backplanes and chassis, allowing for extensive customization. Furthermore, the system is CE/FCC compliant, ensuring it meets stringent electromagnetic interference and safety standards for deployment in diverse environments.

Barebone & Base Configurations

TANK-XM813 Fanless Embedded PC Configurations


  • Intel Core Ultra 5 225T 2.5 GHz (up to 4.9 GHz, 10-core, 35W TDP)
    Intel Core Ultra 5 225 3.3 GHz (up to 4.9 GHz, 10-core, 65W TDP)(Optional)
    Intel Core Ultra 7 265T 1.5 GHz (up to 5.3 GHz, 20-core, 35W TDP) (Optional)
    Intel Core Ultra 7 265 2.4 GHz (up to 5.3 GHz, 20-core, 65W TDP) (Optional)
    Intel Core Ultra 9 285T 1.4 GHz (up to 5.4 GHz, 24-core, 35W TDP)(Optional)
    Intel Core Ultra 9 285 2.5 GHz (up to 5.6 GHz, 24-core, 65W TDP) (Optional)
  • 16GB DDR5 SO-DIMM Memory
  • 500GB M.2 NVME Solid State Drive

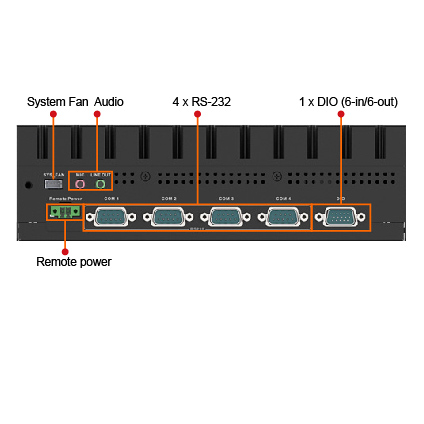

  • 4 x 232 (DB-9), 2 x 232/422/485 (DB-9)
  • 12-bit DIO (6-in/6-out) (DB15)
  • 7 x USB3.2 Gen 2
  • Expansion Backplane (Optional)
  • Expansion Chassis (Optional)
  • Internal Expansion Boards

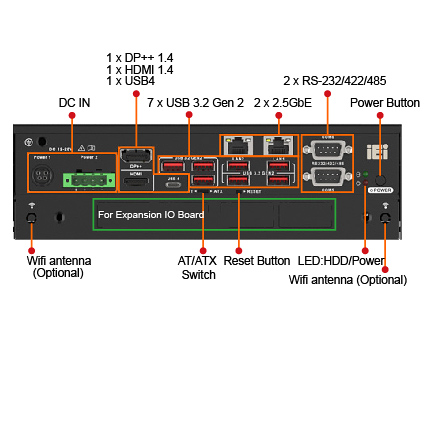

  • 1 x HDMI, 1 x DP++, 1 x USB4 (Display+USB 3.2 Gen 2x2) and Audio
  • 1 x 2230 A-key (USB+PCIe Gen3 x1, supports vPRO)
  • Built-in 2 x 2.5GbE LAN Ports
  • 12~28V DC Power Connector
  • 180W 90~264VAC Power Adapter

Barebone Only:

$1,609.00

Configured:

$1,705.00

Customize
