tBOX500-510-FL Vehicle and Marine Embedded PC
Features:
- CE (Class A), EN 50155, EN 50121-3-2 Certified; FCC, EN 45545-2, E-Mark, ISO 7637-2 DNV 2.4 and IEC 60945 Compliance
- 7th Gen. Intel® Core™ i7/i5/i3 & Celeron® Processors (Kaby Lake)
- 2 x DDR4-1866/2133 SO-DIMM, up to 32GB
- 2 x Swappable 2.5" SATA Drive Bays

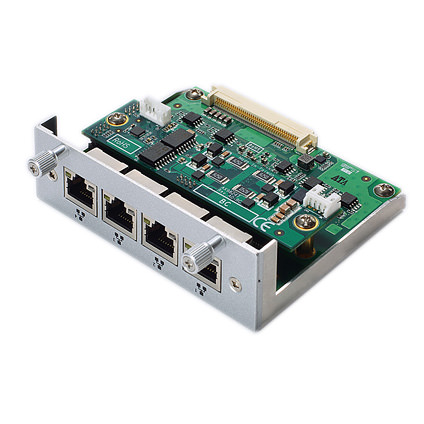

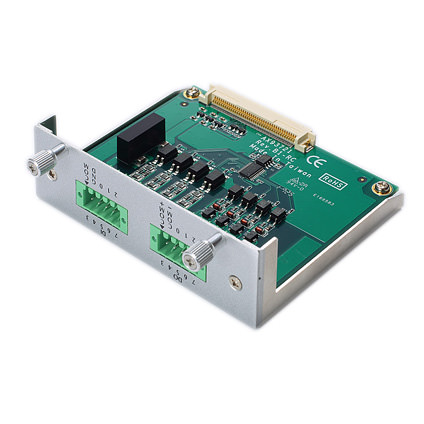

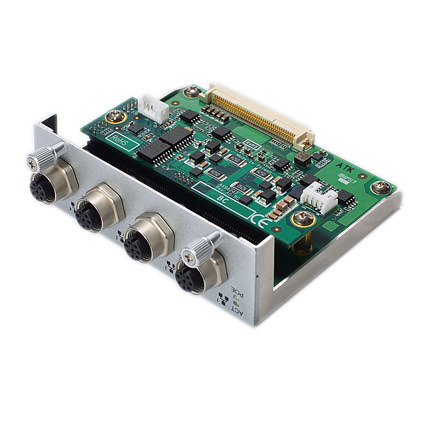

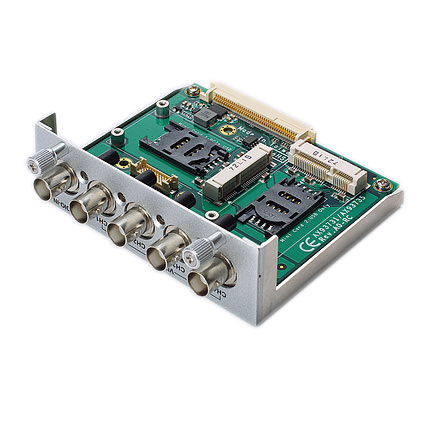

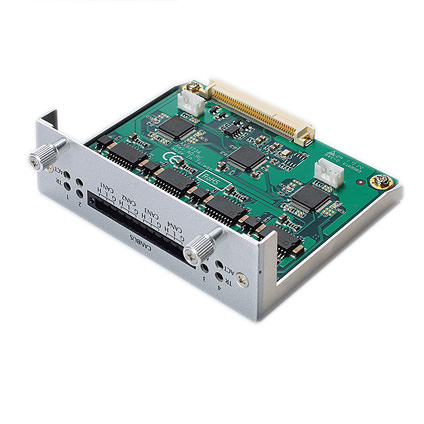

- 2x VAM Slots, Wide Selections (COM/LAN/DIO/PoE/CAN/BNC)
- External PoE PSU (Optional), up to 120W Power Supply
- Power Input: 24 ~ 110 VDC for Railway Version; 12/24 VDC for Vehicle Version; 24 VDC for Marine Version
- Intelligent Solution of Vehicle Power Management (ACC ignition)
- Fanless Design and Suitability for Wide Operating Temperatures from -40°F to +158°F

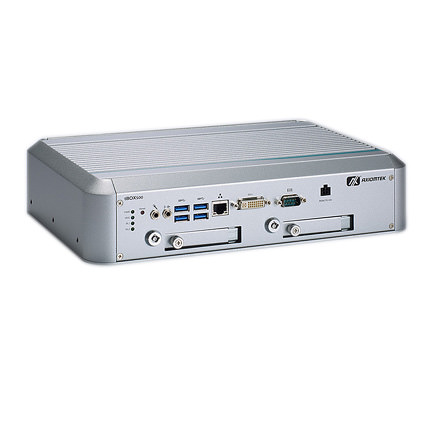

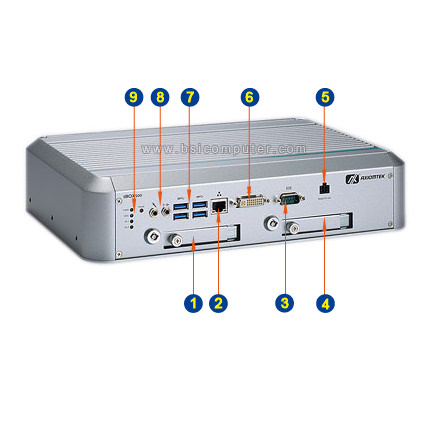

The tBOX500-510-FL is a fan-less embedded vehicle PC operating on a SoC chipset, which supports 7th generation Intel i3, i5, i7 and Celeron processors. The chassis for the system is constructed using Aluminum extrusion and heavy-duty steel having an IP rating of 30. The I/O for the unit is installed with COM ports as either DB9 serial console or RS-232/422/485. The interface is also equipped with USB 3.0, 10/100/1000 Mbps LAN, and DVI-I.
Memory for the system supports DDR4-1866/2133 SO-DIMM, up to a capacity of 32GB. As for storage options, the user is given two swappable 2.5" SATA drive to work with as well as an mSATA slot after using one of the three full-sized PCI Express Mini Card slot. Furthermore there are also two SIM card slots and two value-added module slots available for use. Additional power options are also provided to the user and have the choice between an M12 or Terminal block DC-in. If desired, the system also has an option of running on PoE power-in with a maximum power output of 120W. The operational temperature range for the system is dependent on what kind of hard drive is installed. If the user installs an SSD, the operational temperature ranges between -40°C and +70°C while for an HDD the range would be set between -25°C and +55°C. The tBOX500-510-FL has the option to wall mounted if the user wishes to do so.
Barebone & Base Configurations
- Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
Up to Intel® Core™ i5-7600U Processor (Optional) - 4GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 1 x RS-232/422/485
- 4 x USB 3.0
- 1 x GbE LAN
- 2 x Value-added Module Slots
- 3 x Full-size PCIe Mini Card Slots, 2 x SIM Card Slots
- Built-in DVI-I and Audio
- 9~36VDC Terminal Block Power Input, with ACC Ignition
- Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
Up to Intel® Core™ i5-7600U Processor (Optional) - 4GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 1 x RS-232/422/485
- 4 x USB 3.0
- 1 x GbE LAN
- 2 x Value-added Module Slots
- 3 x Full-size PCIe Mini Card Slots, 2 x SIM Card Slots
- Built-in DVI-I and Audio
- 14~32VDC Terminal Block Power Connector with GND
- Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
Up to Intel® Core™ i5-7600U Processor (Optional) - 4GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 1 x RS-232/422/485
- 4 x USB 3.0
- 1 x GbE LAN
- 2 x Value-added Module Slots
- 3 x Full-size PCIe Mini Card Slots, 2 x SIM Card Slots
- Built-in DVI-I and Audio
- 16.8~137.5VDC M12 A-code 5P Power Input
