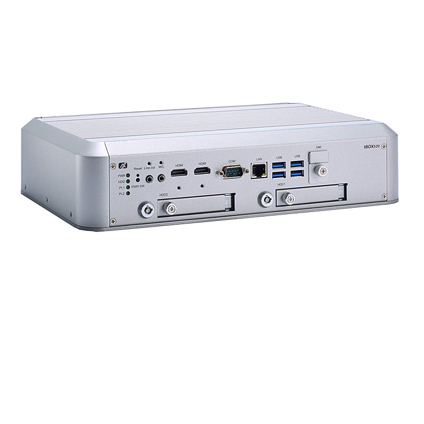

tBOX520 Fanless Embedded System with 12th Gen Intel Core i7/i5/i3 Processor for Railway
Features:
- CE, LVD, FCC, EN 50155, EN 45545-2 Certified
- 12th Gen Intel Core i7/i5/i3 or Celeron Processor (Alder Lake P)
- 2 x DDR5-4800 SO-DIMM, up to 64GB
- 2 x Swappable 2.5" SATA Drive Bays, 1 x M.2 Key M 2280 NVMe SSD (PCIe x4)

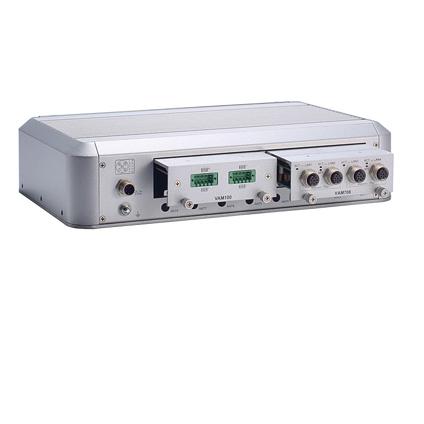

- Value-added Modules Available for Various I/O Requirements (COM/LAN/DIO/PoE/CAN/BNC)
- Intelligent Solution of Power Management (Smart Ignition)
- 24 to 110 VDC for Railway Applications
- Fanless Design and Suitability for Wide Operating Temperatures from -40°F to +158°F
The TBOX520 is a rugged, fanless embedded computer specifically certified for railway and transportation applications, holding CE, LVD, FCC, EN 50155, and EN 45545-2 approvals. Powered by 12th generation Intel Core i7/i5/i3 or Celeron processors (Alder Lake P), it supports a wide 24 to 110 VDC power input range to accommodate varying railway power systems. Value-added modules are available for flexible I/O expansion, including COM, LAN, DIO, PoE, CAN, and BNC ports. The system features intelligent power management via Smart Ignition and accommodates two swappable 2.5" SATA drives for easy storage maintenance in field environments.
Barebone & Base Configurations
- Intel Celeron Processor 7305E (8M Cache, 1.00 GHz)
Up to Intel Core i7 Processor (Optional) - 8GB DDR5 SO-DIMM Memory
- 500GB M.2 NVME Solid State Drive

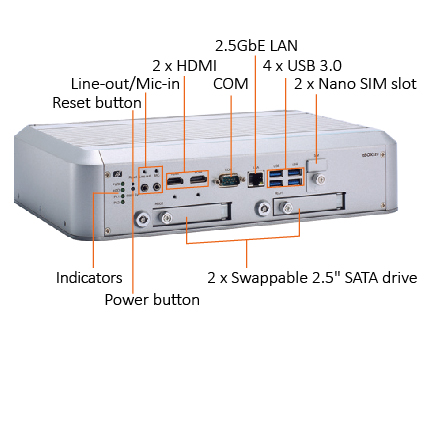

- 2 x Swappable 2.5" SATA Drive Bays (9.5 mm Height), Intel RAID 0/1 Supported
- 1 x RS-232/422/485
- 4 x USB 3.0
- 1 x 2.5GbE LAN

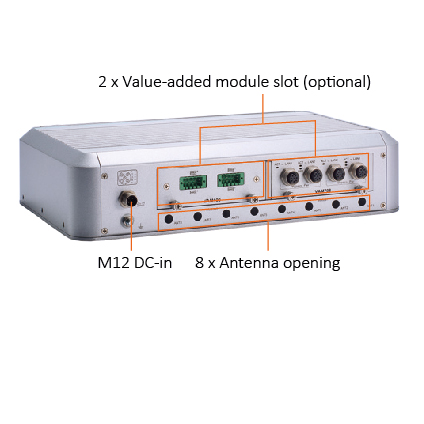

- 2 x Value-added Module Slots
- TPM 2.0
- 1 x M.2 Key A or E for Wi-Fi 6/Bluetooth (PCIe/USB)
- 1 x M.2 Key B 3052/3042 for 5G/LTE (4G) (PCIe/USB)
- 1 x Full-size PCIe Mini Card Slot, 2 x Nano SIM Slots
- Built-in 2 x HDMI and Audio (Line-out/Mic-in)
- 24 ~ 110 VDC Power Input
Configured: |
$2,115.00 |
