UST520 Transportation Embedded System

Features:

  • CE, FCC, E-Mark and R118 certified
  • LGA1700 14th/13th/12th Gen Intel Core i9/i7/i5/i3 or Celeron processor (35W)
  • Intel R680E Chipset
  • 2 x DDR5 SO-DIMM (Max. 64GB)
  • 2 x 2.5" Swappable SATA Drive Bays with Intel RAID 0/1 Supported
  • 4 x 2.5" Swappable SATA Drive Bays with Intel RAID 0/1/5/10 Supported (Optional)
  • Up to 4 convenient swappable SATA trays for high-capacity video recording
  • Qualified Intel ESQ for Metro AI Suite Devices
  • 8/16 2.5 GbE PoE port by M12/RJ-45 connector type for efficient camera network management
  • Intelligent solution of vehicle power management (smart ignition)
  • Fanless Design and Wide Operating Temperatures from -40°F to +158°F

Barebone & Base Configurations

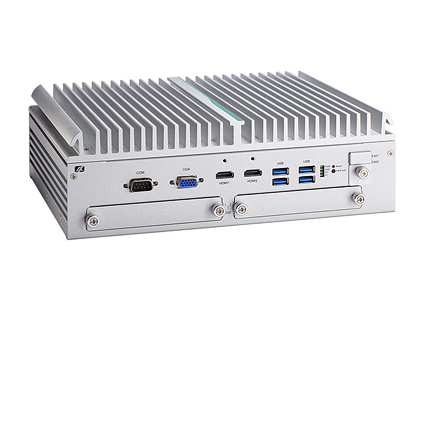

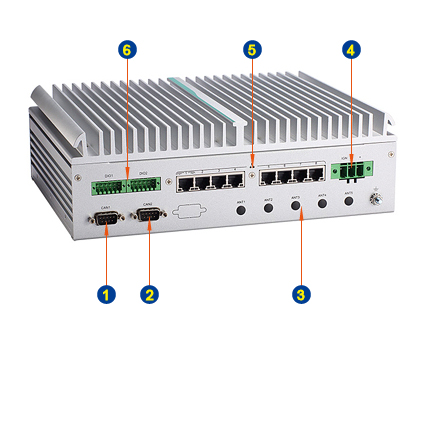

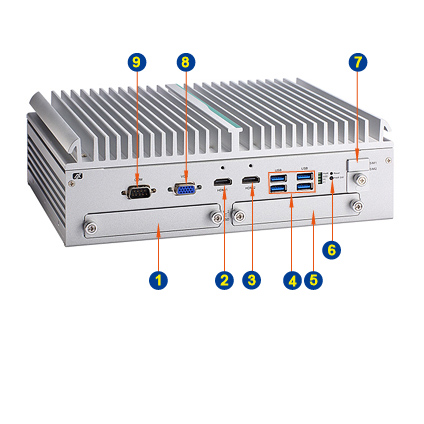

UST520 Fanless Embedded Vehicle PC with 2x SATA Drive Bays
UST520 Fanless Embedded Vehicle PC with 2x SATA Drive Bays


  • Intel Celeron Processor G6900T (4M Cache, 2.80 GHz)
    Up to Intel Core i9 Processor (Optional)
  • 8GB DDR5 SO-DIMM Memory
  • 500GB M.2 NVME Solid State Drive
  • 2 x 2.5" Swappable SATA Drive Bays with Intel RAID 0/1 Supported
  • 8 x PoE 2.5 GbE LAN (RJ-45)
  • 1 x RS-232/422/485, 4 x USB 3.2, 2 x CANbus, 1 x VGA, 2 x HDMI
  • TPM 2.0
  • 1 x M.2 3052 Key B (USB 3.0/2.0) for 5G/LTE
  • 1 x M.2 2230 Key E (PCIe/USB) for Wi-Fi/BT
  • 1 x Full-size PCI Express Mini Card slot (PCIe/USB) for LTE/GPS/Wi-Fi/I/O Expansion
  • 1 x Half-size PCI Express Mini Card slot (USB) for GPS
  • 12/24/48 VDC Terminal Block with Smart Ignition

Barebone Only:

 $2,395.00

Configured:

$2,985.00

Customize

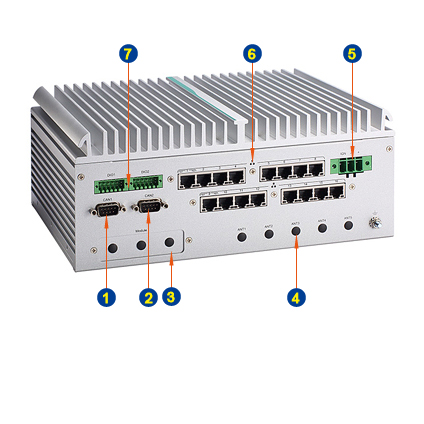

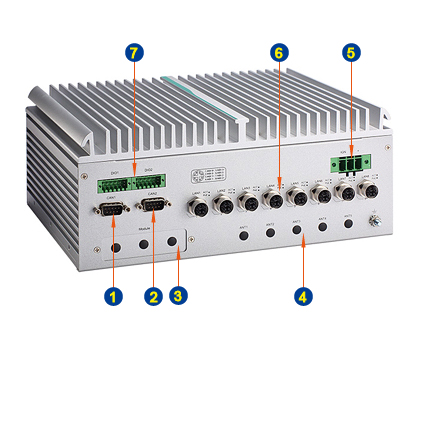

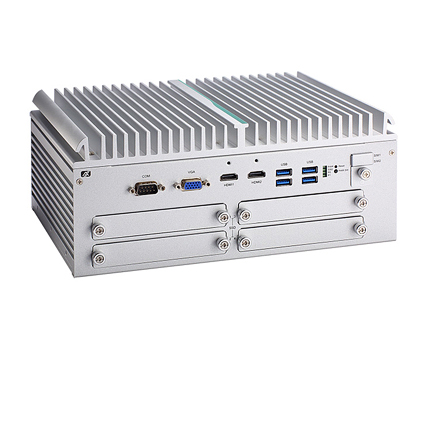

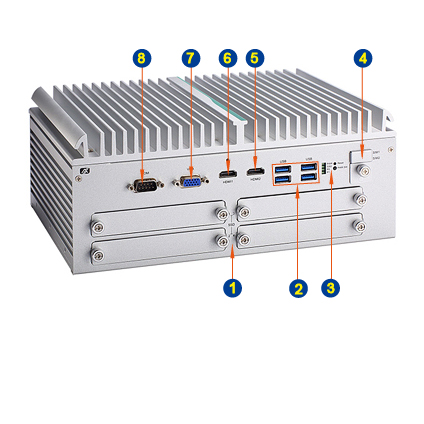

UST520 Fanless Embedded Vehicle PC with 4x SATA Drive Bays
UST520 Fanless Embedded Vehicle PC with 4x SATA Drive Bays


  • Intel Celeron Processor G6900T (4M Cache, 2.80 GHz)
    Up to Intel Core i9 Processor (Optional)
  • 8GB DDR5 SO-DIMM Memory
  • 500GB M.2 NVME Solid State Drive
  • 4 x 2.5" Swappable SATA Drive Bays with Intel RAID 0/1/5/10 Supported
  • 8 x PoE 2.5 GbE LAN (M12 X-code)
    16 x PoE 2.5 GbE LAN (RJ45, Optional)
  • 1 x RS-232/422/485, 4 x USB 3.2, 2 x CANbus, 1 x VGA, 2 x HDMI
  • TPM 2.0
  • 1 x M.2 3052 Key B (USB 3.0/2.0) for 5G/LTE
  • 1 x M.2 2230 Key E (PCIe/USB) for Wi-Fi/BT
  • 1 x Full-size PCI Express Mini Card slot (PCIe/USB) for LTE/GPS/Wi-Fi/I/O Expansion
  • 1 x Half-size PCI Express Mini Card slot (USB) for GPS
  • 12/24/48 VDC Terminal Block with Smart Ignition

Barebone Only:

 $2,945.00

Configured:

$3,535.00

Customize
