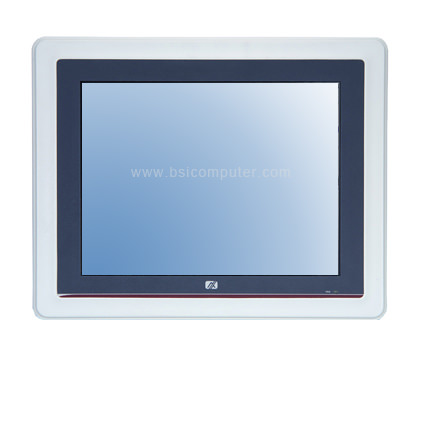

GOT5120T-845 - 12.1" Fanless Panel PC


  • 12.1" TFT LCD Display with LED Backlight
  • SVGA 800 x 600 w/ 450nits Brightness, Optional XGA 1024 x 768 w/ 500nits Brightness
  • Fanless Design with Intel® Celeron® N3060 1.6 GHz Processor (up to 2.48 GHz)
  • Supports 2.5" SATA SSD and mSATA Easy Access Storage Design

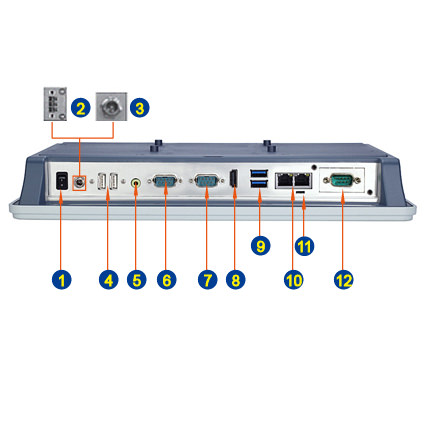

  • Supports 2x USB3.0, 2x USB2.0, 2x COM Ports, 2x Gigabit LAN Ports
  • Adjust RS-232/422/485 Setting via BIOS
  • Supports WLAN Module & Internal Antenna
  • 8-bit DIO Port (Programmable, DB9)
  • Easy for Expansion: 2x PCIe Mini Card Slots
  • Supports RFID (Optional)
  • Speakers (Optional)

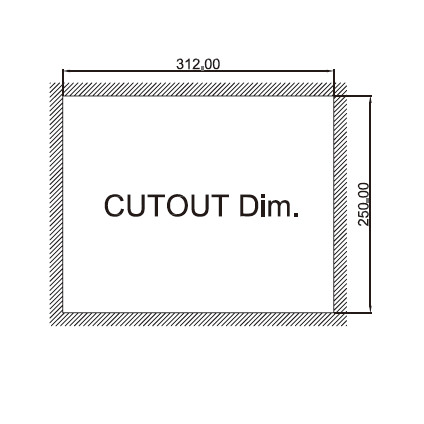

  • Supports Panel Mount, Wall Mount, VESA Arm, Desktop Stand (Optional)
  • Plastic and IP65-Rated Front Bezel

The GOT5120T-845 is a 12.1" XGA/SVGA TFT LCD display with a Fan-less design that supports Intel's Celeron® processor N3060 2 cores (up to 2.48 GHz) and a maximum of 8GB DDR3L-1600 SO-DIMM. The front Bezel is IP65 rated and surrounds the 5-wire resistive touch screen. Two full-size PCI Express Mini Cards are available for expansion as well as a 2.5" SATA SSD and mSATA with an easy access design. There are two Gigabit LANs, two RS-232 COM Ports (one of them being 422-485 selectable), two USB 2.0, two USB 3.0 and one HDMI.

The GOT5120T-845 measure 12.9" x 2.07" x 10.3" and can operate in temperatures ranging from 32°F ~ +122°F. The DC version operates on 24VDC with an over current protection fuse (optional). The AC version operates on 100-240V AC-DC 60W power adapter. The GOT can be used via Panel mount, Wall mount, VESA arm or Desktop stand.

Barebone & Base Configurations

GOT5120T-845 Fanless Panel PC

  • 12.1" 800 x 600 SVGA 450 nits TFT LCD with LED Backlight Touchscreen
  • 12.1" 1024 x 768 XGA 500 nits TFT LCD with LED Backlight Touchscreen (Optional)
  • Intel® Celeron® N3060 1.6 GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0
  • 1 x RS-232(DB9), 1 x RS-232/422/485 (DB9)
  • 8-bit DIO (Programmable, DB9)
  • 2x PCIe Mini Card Slot
  • Wireless Module (Optional)
  • DC Version: 24VDC Terminal Block Connector w/ Over Current Protection Fuse
  • AC Version: 60W 100-240V AC-DC Power Adapter w/ Screw Type Connector (Optional)

Barebone Only:
