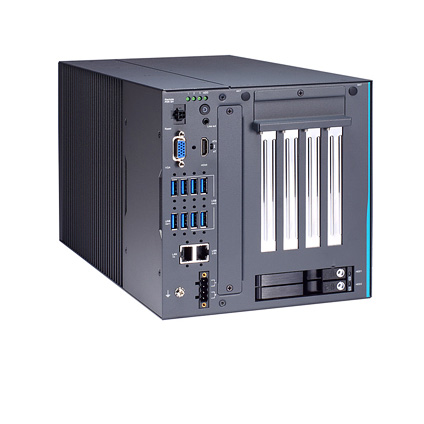

IPC970 Industrial Embedded PC with 10th Gen Intel® Xeon® or Core™ i7/i5/i3 Processor, Front-access I/O, and PCIe Slots


  • 10th Gen Intel® Xeon® or Core™ i7/i5/i3 processor, up to 80W
  • Intel® W480E chipset
  • 4 x DDR4-2933 MT/s ECC or non ECC U-DIMM socket, up to 128GB
  • 2 x 2.5" SSD/HDD Drive Bay (7/9.5mm Height, External)
    1 x SSD/HDD Drive Bay (Optional, 7/9.5/15mm Height, Internal)
    Supports RAID 0,1
  • 1 x M.2 Key M 2280 Socket (PCIe Gen3 x4) for NVMe SSD
  • Supports M.2 Key B Slot for 5G Wireless Connection
  • Supports M.2 Key E Slot for Wi-Fi Connection
  • Supports Power-on Delay Function
  • Supports TPM 2.0
  • Supports Intel® AMT

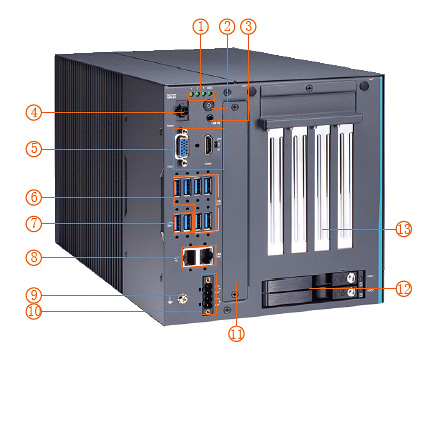

The IPC 970 is an industrial PC system that operates with the Intel WQ480E chipset and LGA1200 processor socket which can support the 10th generation intel core and Xeon processors from i3 to i7. For RAM, the board supports dual channel DDR4 DIMM 2933 MHz memory up to a maximum capacity of 128 GB. The board’s I/O interface is constructed with an HDMI port for display at a 4k resolution at 30Hz as well as a VGA port which supports 1920x1200. The I/O interface provided also provides users with access to six 2nd generation USB 3.2 ports, two 1st generation USB 3.2 and one 2.5GbE LAN I225-LM Ethernet port and one I219 LAN port.

Barebone & Base Configurations

IPC970 Fanless Embedded PC with Expansion Slot

  • 10th Gen Intel® Processor
  • 8GB DDR4 Memory
  • 250GB 2.5" SATA Solid State Drive
  • 1x M.2 M Key, 1x M.2 B Key, 1x M.2 E Key
  • 6x USB3.2 Gen 2, 2x USB3.2 Gen 1, 1x USB 2.0 (Internal, 180D type A for license key)
  • TPM2.0
  • Built-in VGA, HDMI and Audio
  • Built-in 1x Gigabit LAN, 1x 2.5GbE LAN
  • 24VDC Power Connector

Barebone Only:
