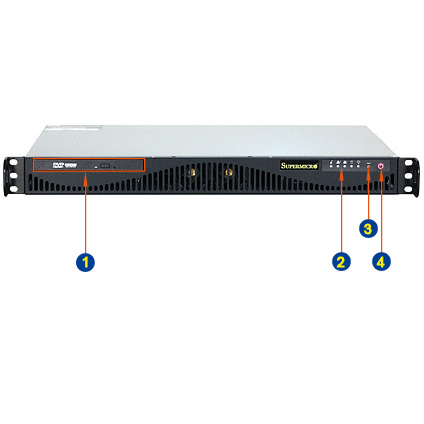

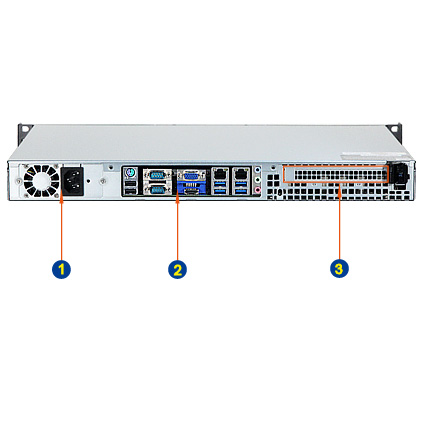

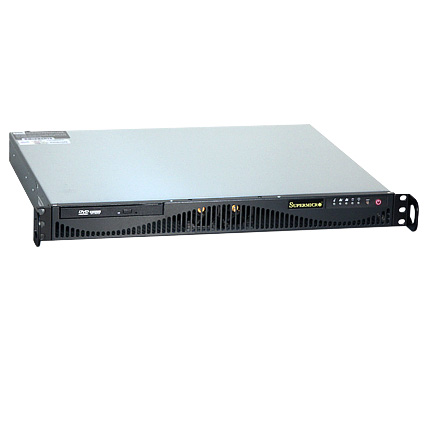

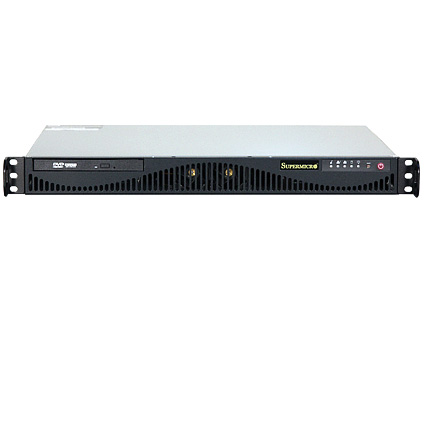

RMS110 1U 14.5" Short-Depth Rack Mount Computer
Features:
- 1U Rack Mount Computer
- ATX / Micro ATX Form Factor
- 1 x 3.5" Internal External Drive Bays
- 2 x Counter-Rotating Fans
- 1 x PCIe/PCI Expansion Slot
- Supermicro CSE-512F-350B Chassis
- Supermicro CSE-512F-600B Chassis (Optional)
- 14.5" Short-Depth Rack Mount Computer
- Due to the height of the chassis, the Motherboard I/O panel is not included

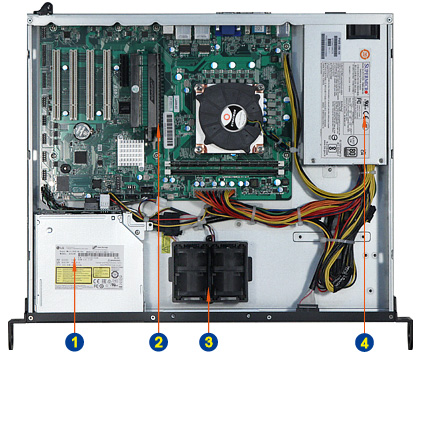

The RMS110 1U 14.5" short-depth industrial rack mount computer that is designed for high-density rack mount server applications. It features one 3.5" Internal drive bays for storage capacity, supports slim DVD+/-RW optical drive, and two counter-rotating fan. The RMS110 1U rack mount computer is equipped with 350W or 600/680W 1U multi-output 80 Plus Gold power supply.
The RMS110 is designed for small business; Web/Hosting; Email/Firewall/Print Server; Gateway and Compact Network Appliance applications.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Brand | Features |
|
|
|
|
|
|
Base Configurations

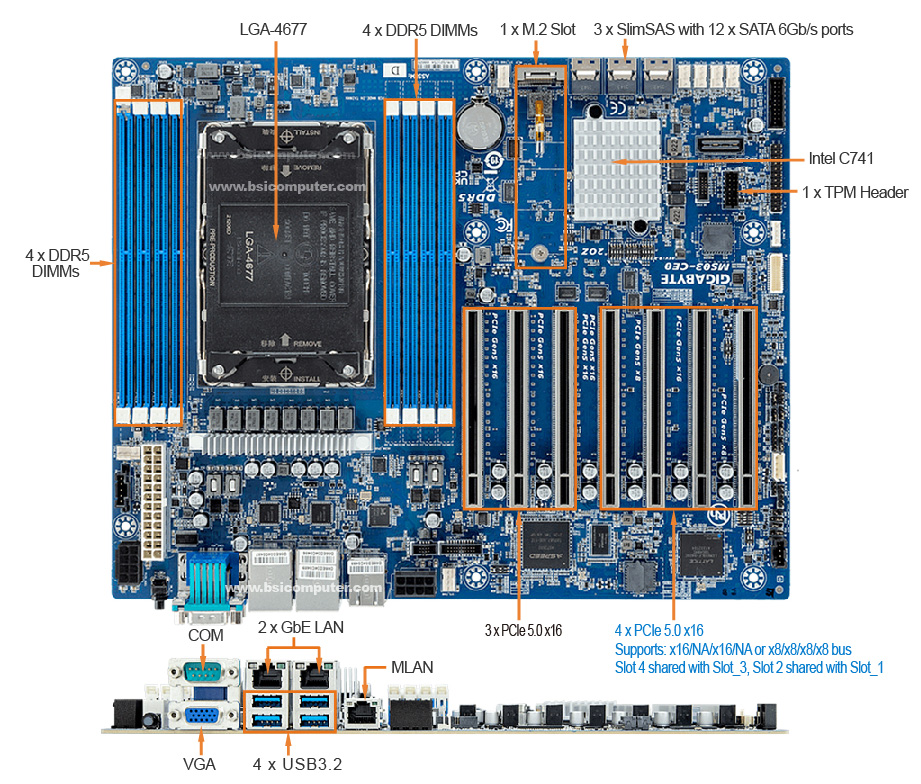

- Gigabyte MS03-CE0 Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 16GB DDR5 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in Video
- Built-in 2 x Gigabit LAN, 1 x MLAN
- 350W 80 Plus Gold Power Supply
- ASUS PRIME H770-PLUS D4 Motherboard
- 12th/13th Gen Intel Processor
- Intel H770 Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 1 x TPM Header
- Built-in HDMI, DisplayPort and Audio
- Built-in 1 x 2.5GbE LAN
- 350W 80 Plus Gold Power Supply

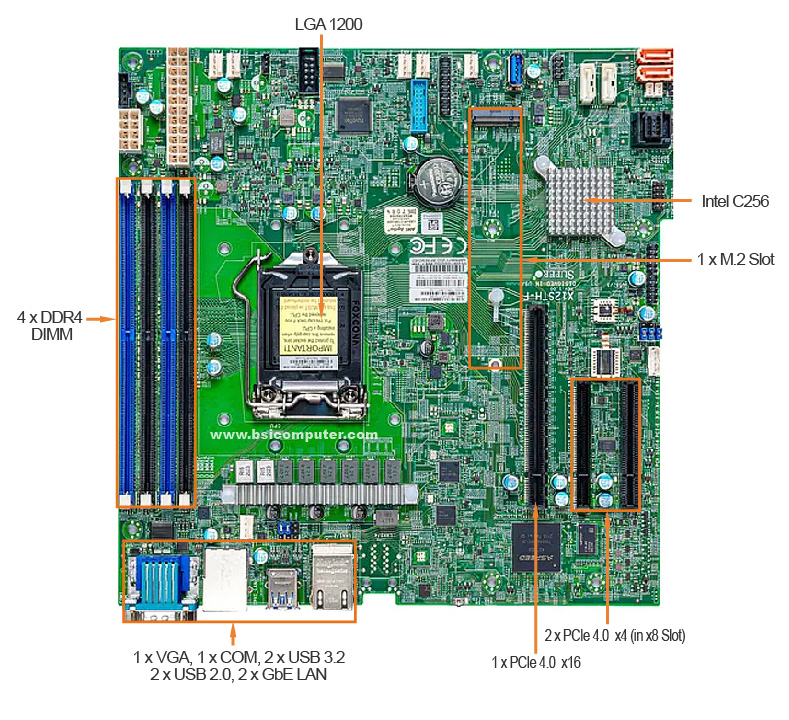

- Supermicro X12STH-F Motherboard
- Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor
- Intel C256 Chipset
- 16GB DDR4 ECC Memory
- 500GB M.2 NVME Solid State Drive
- 1 x TPM Header
- Built-in Video
- Built-in 2 x GbE LAN
- 350W 80 Plus Gold Power Supply

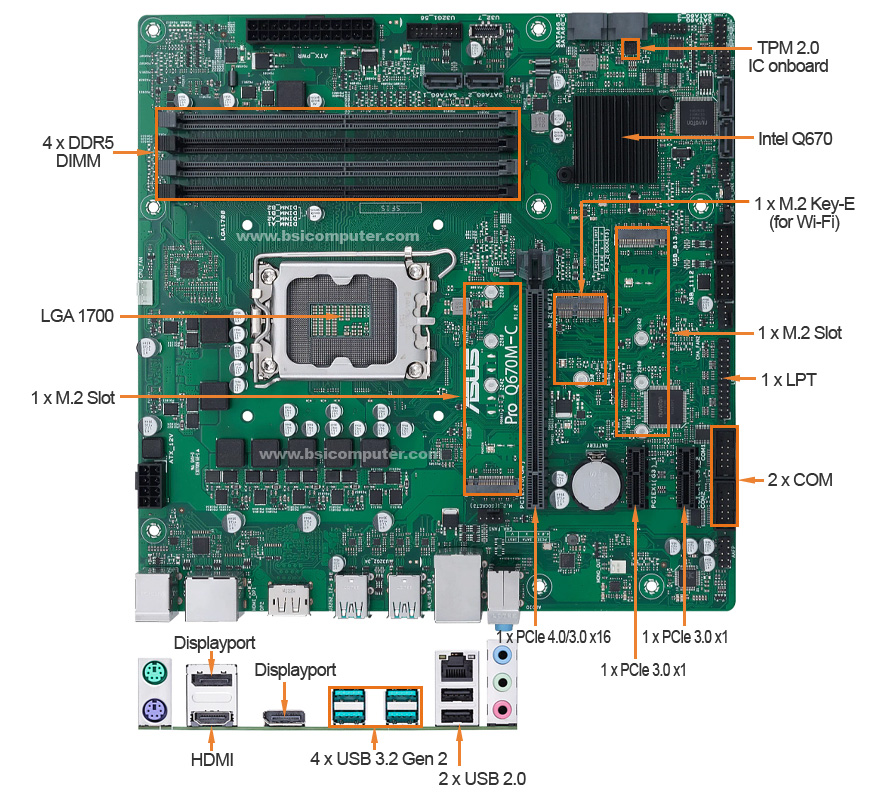

- ASUS PRO Q670M-C-CSM Motherboard
- 12th/13th Gen Intel Processor
- Intel Q670 Chipset
- 8GB DDR5 Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Slots, 1x M.2 Key E
- TPM 2.0 IC Onboard
- Built-in 1 x HDMI, 2 x DisplayPort and Audio
- Built-in 1 x GbE LAN
- 350W 80 Plus Gold Power Supply

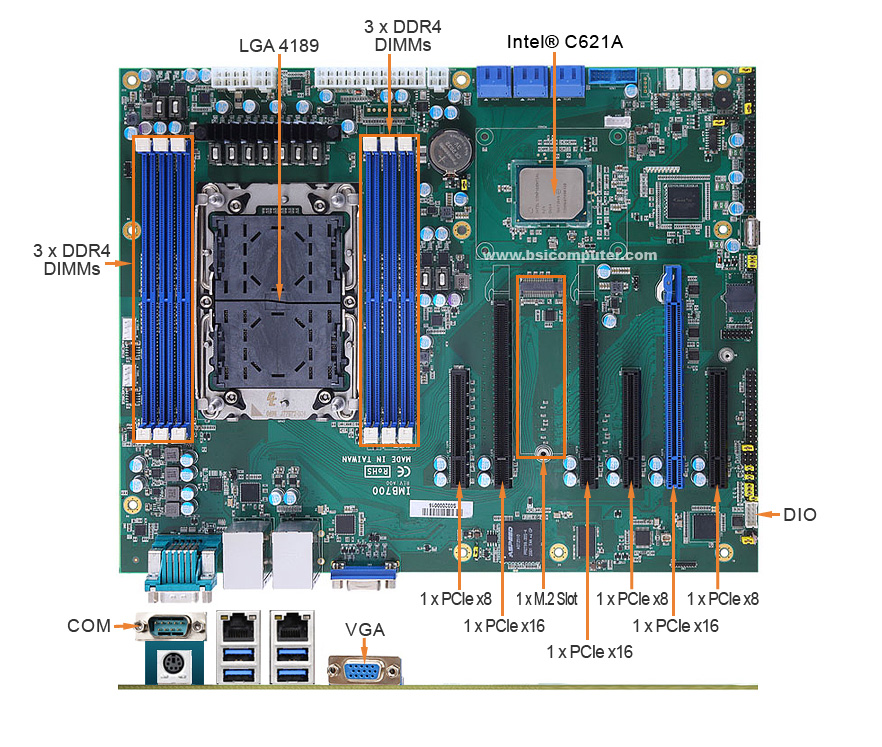

- IMB-C621AA Industrial Motherboard
- 3 to 5 Years Life Time
- 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 16GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Video
- Built-in Dual Gigabit LAN
- 350W 80 Plus Gold Power Supply

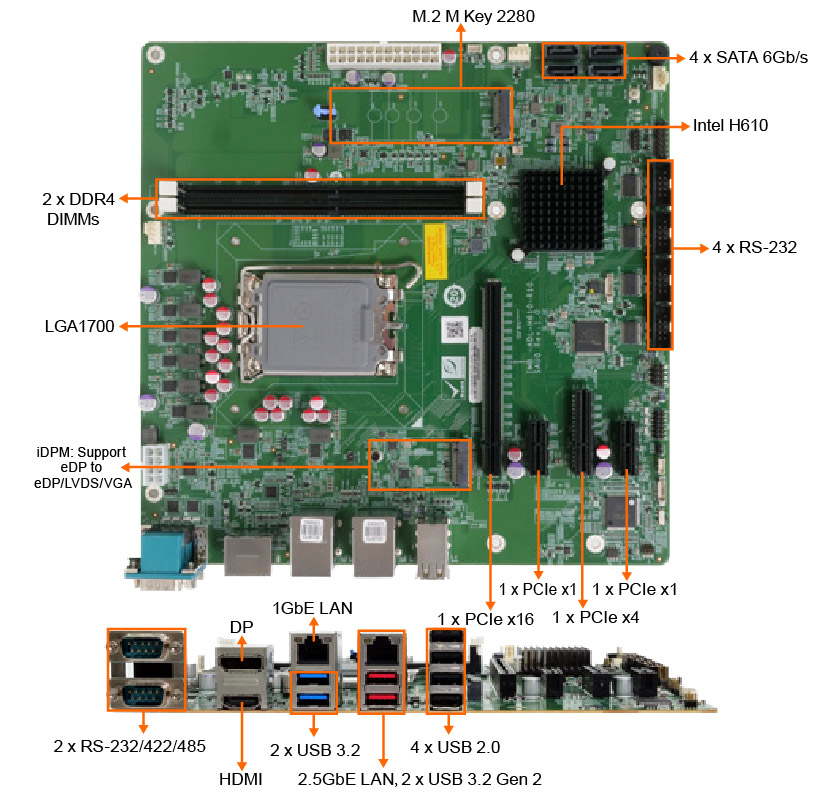

- IMB-H610E-MATX Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel H610 Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- TPM 2.0 Onboard
- 4 x RS-232, 2 x RS-232/422/485
- Built-in 1 x HDMI, 1 x DisplayPort
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
- 350W 80 Plus Gold Power Supply

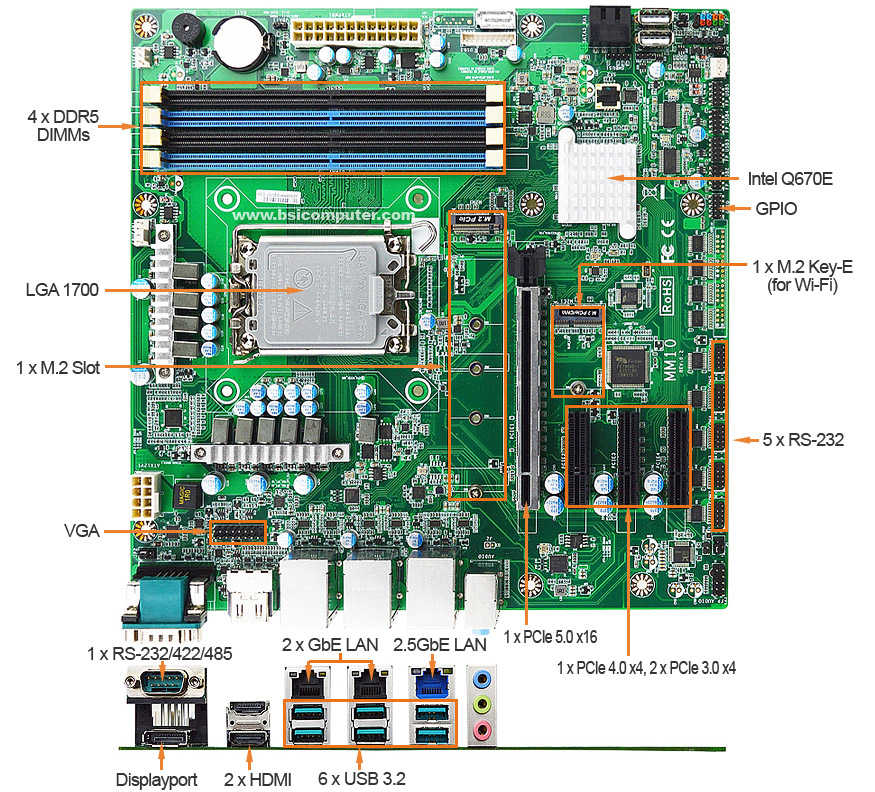

- IMB-Q670JT2-MATX Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th Gen Intel Processor
- Intel Q670E Chipset
- 8GB DDR5 Memory
- 500GB M.2 NVME Solid State Drive
- TPM 2.0 Onboard
- 5 x RS-232, 1 x RS-232/422/485
- Built-in 2 x HDMI, 1 x DisplayPort, 1 x VGA and Audio
- Built-in 2 x GbE LAN, 1 x 2.5GbE LAN
- 350W 80 Plus Gold Power Supply

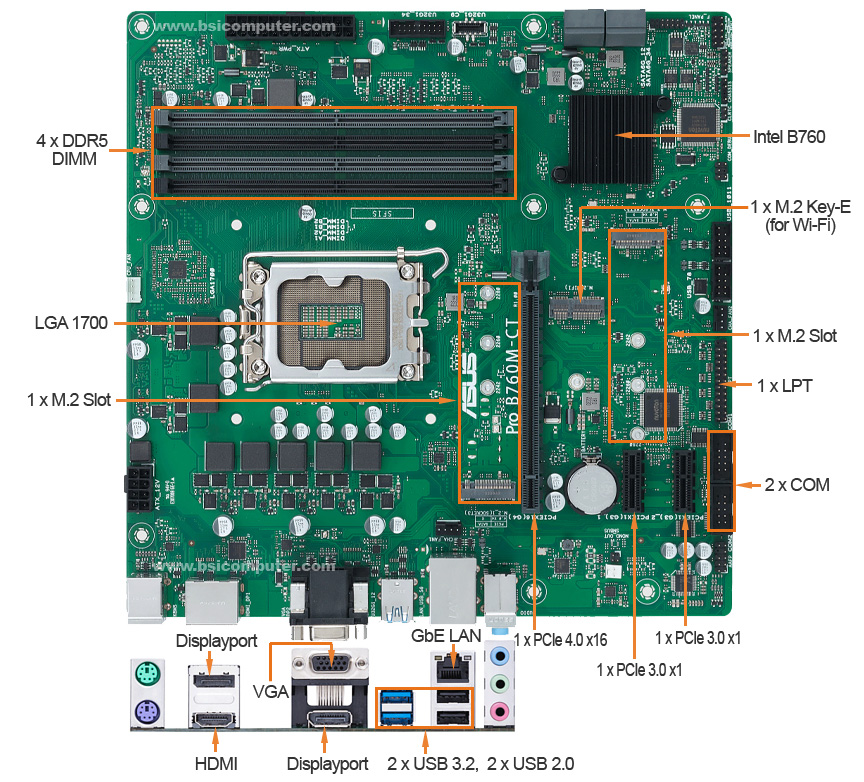

- ASUS Pro B760M-CT-CSM Motherboard
- 12th/13th Gen Intel Processor
- Intel B760 Chipset
- 8GB DDR5 Memory
- 500GB M.2 NVME Solid State Drive
- TPM 2.0 IC Onboard
- Built-in 1 x HDMI, 2 x DisplayPort, 1 x VGA and Audio
- Built-in 1 x GbE LAN
- 350W 80 Plus Gold Power Supply

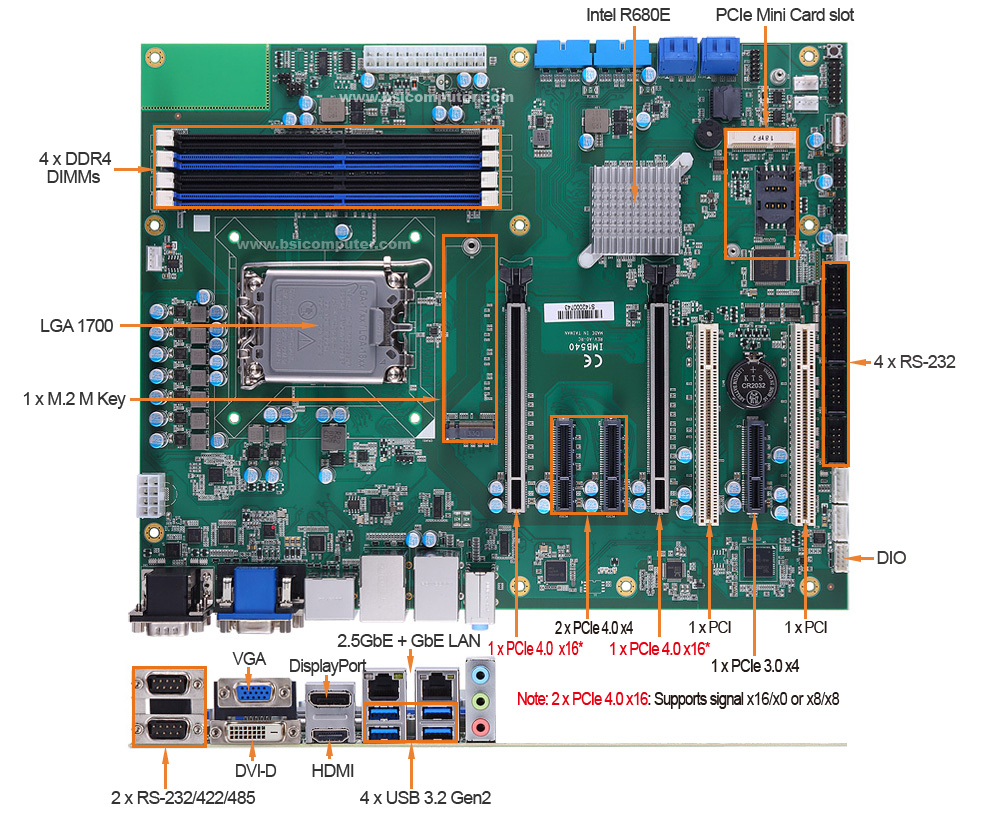

- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th Gen Intel Processor
- Intel® R680E Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in VGA, DVI-D, HDMI, DisplayPort and Audio
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- 350W 80 Plus Gold Power Supply

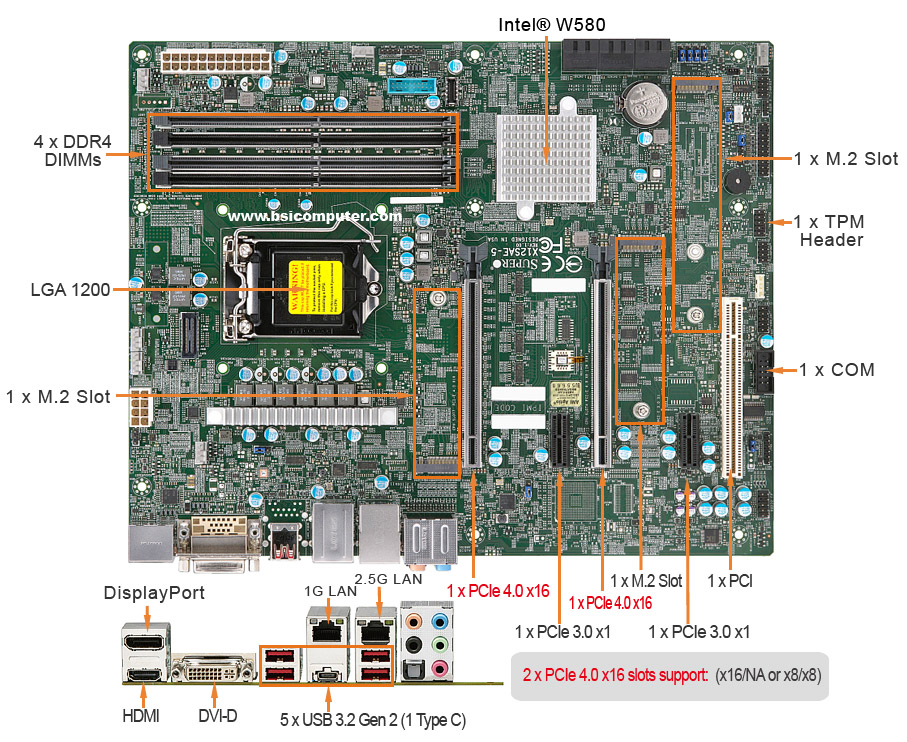

- Supermicro X12SAE-5 Motherboard
- Intel® Core™ i5-11400 Processor (12M Cache, 2.60 GHz)
Up to Intel Core i9 Processor (Optional)
Intel Xeon W-1300 Series Processor (Optional) - Intel® W580 Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 3 x M.2 Slots
- Built-in DVI-D, HDMI, DisplayPort and Audio
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
- 350W 80 Plus Gold Power Supply

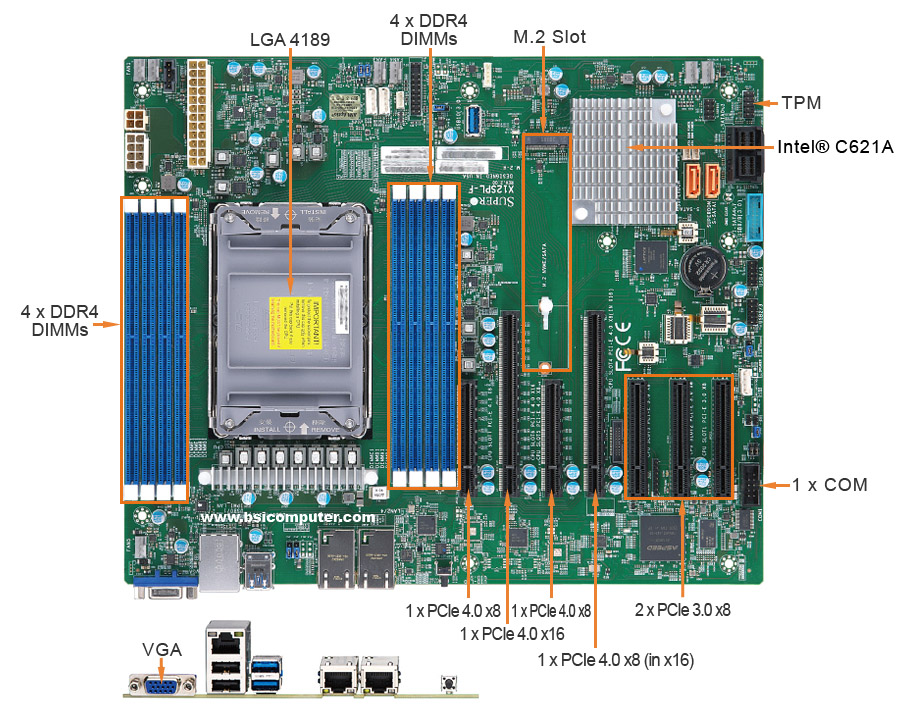

- Supermicro X12SPL-F Motherboard
- Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel® C621A Chipset
- 16GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- Built-in Video
- Built-in Dual Gigabit LAN & IPMI LAN
- 350W 80 Plus Gold Power Supply

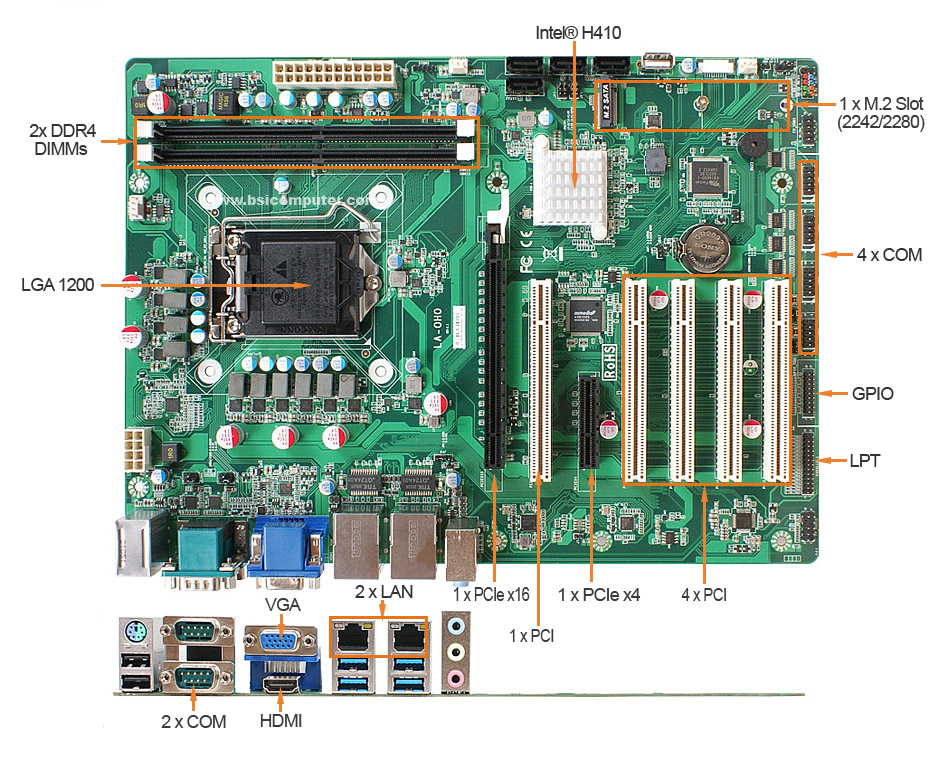

- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel® Processor
- Intel® H410 Chipset
- 8GB DDR4 Memory
- 250GB M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in VGA, HDMI and Audio
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
- 350W 80 Plus Gold Power Supply

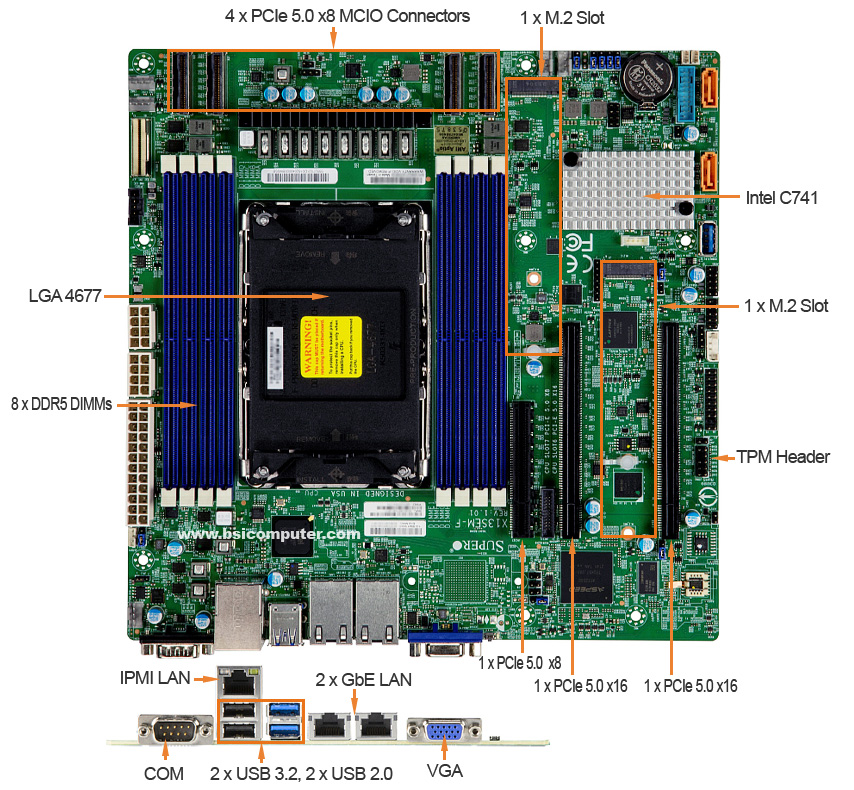

- Supermicro X13SEM-F Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 16GB DDR5 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 4 x PCIe 5.0 x8 MCIO Connectors
- Built-in Video
- Built-in Dual Gigabit LAN & IPMI LAN
- 350W 80 Plus Gold Power Supply

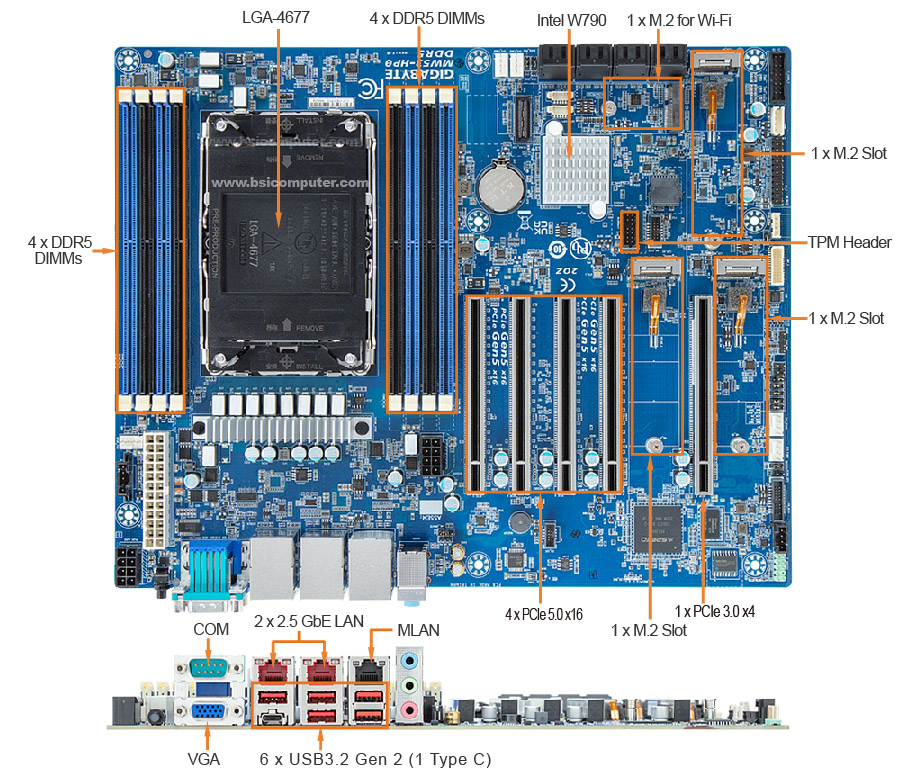

- GIGABYTE MW53-HP0 Motherboard
- Intel® Xeon® W-2400 Processor, Intel® Xeon® W-3400 Processor
- Intel® W790 Chipset
- 16GB DDR5 ECC Registered Memory
- 500GB M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in Video and Audio
- Built-in 2 x 2.5GbE LAN, 1x MLAN
- 350W 80 Plus Gold Power Supply

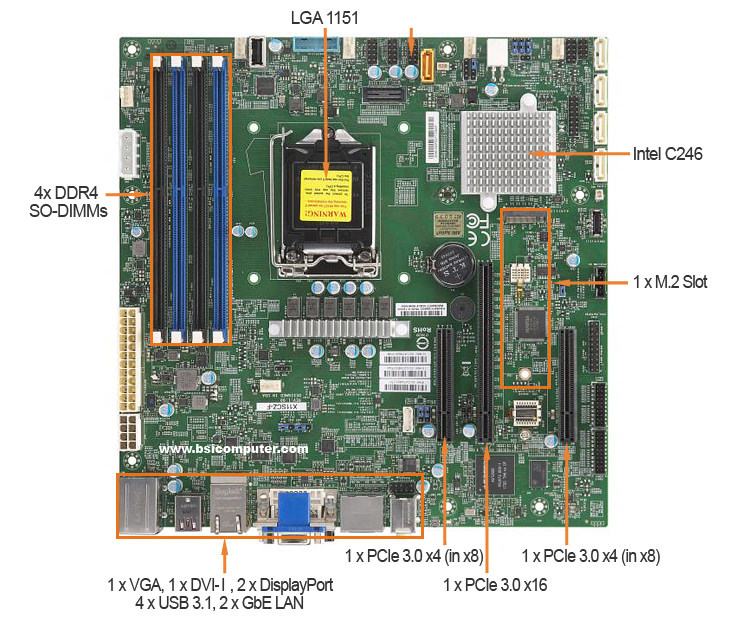

- Supermicro X11SCZ-F Micro ATX Motherboard
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor
- Up to Intel® Xeon® E Processor
- Intel® C246 Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 1 x M.2 Slot
- 4 x USB 3.1 Ports
- Built-in VGA, DVI-I, Dual DisplayPort and Audio
- Built-in Dual Gigabit LAN
- 350W 80 Plus Gold Power Supply
- Supermicro X11SRA-F Motherboard
- Intel® Xeon® Processor W-2223 4-Core 3.60GHz 8.25MB Cache
- Intel C422 Chipset
- 16GB DDR4 ECC Registered Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Socket
- Built-in Video and Audio
- Built-in Dual Gigabit LAN
- 350W 80 Plus Gold Power Supply
- Supermicro X11SCA-F Motherboard
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor
- Up to Intel® Xeon® E Processor
- Intel® C246 Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 4 x USB 3.1 Ports
- Built-in VGA, DVI-D, HDMI, DisplayPort and Audio
- Built-in Dual Gigabit LAN
- 350W 80 Plus Gold Power Supply

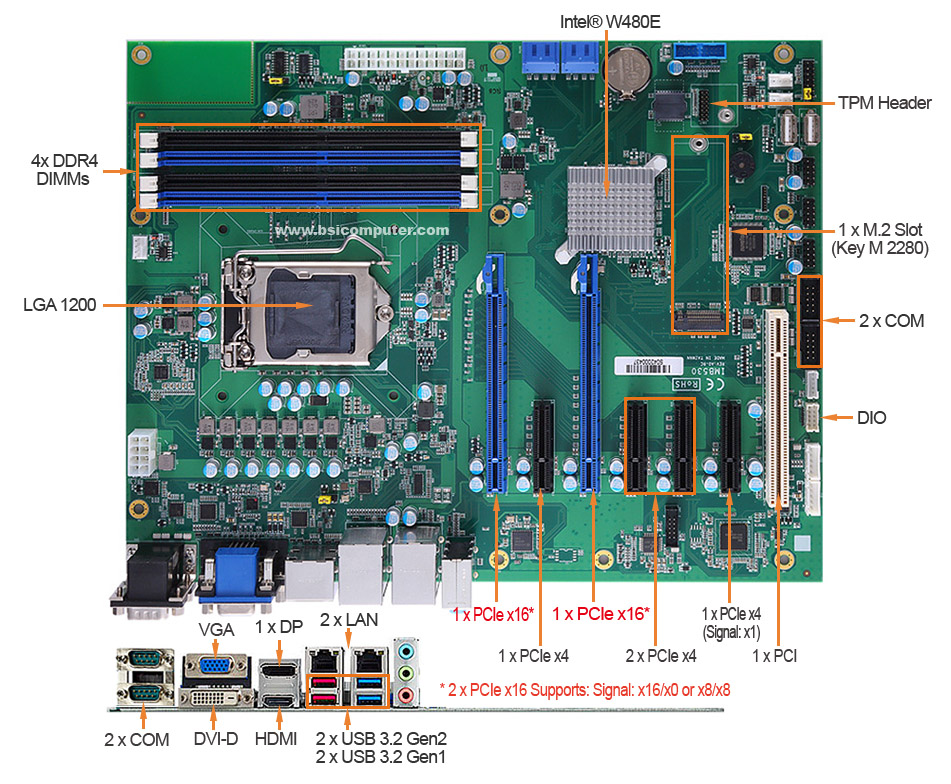

- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel® Celeron® G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel® Core i9 Processor and Intel® Xeon® W-1200 Series Processor
- Intel® W480E Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in VGA, DVI-D, HDMI, DisplayPort and Audio
- Built-in Dual Gigabit LAN
- 350W 80 Plus Gold Power Supply

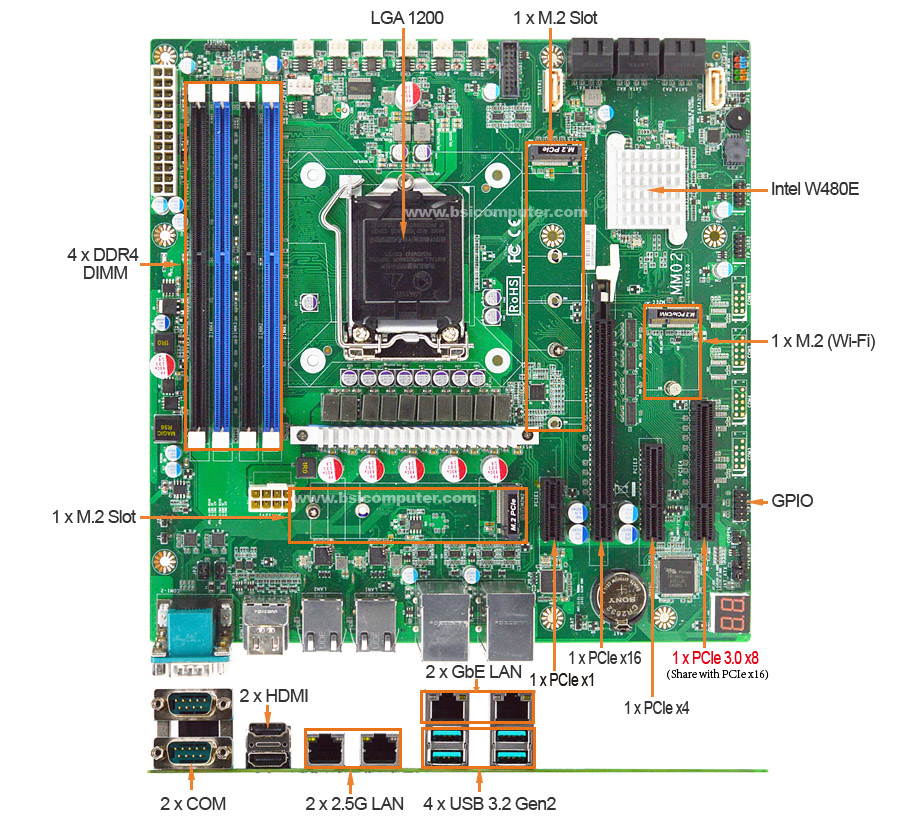

- IMB-W480EJ-MATX Motherboard
- Long-Life Lifecycle Through Q2' 2035
- Intel® Celeron® G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel® Core i9 Processor
- Intel® W480E Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi
- TPM 2.0 Module (Optional)
- 2 x RS232
- Built-in 2 x HDMI
- Built-in 2 x 2.5GbE LAN, 2 x GbE LAN
- 350W 80 Plus Gold Power Supply
