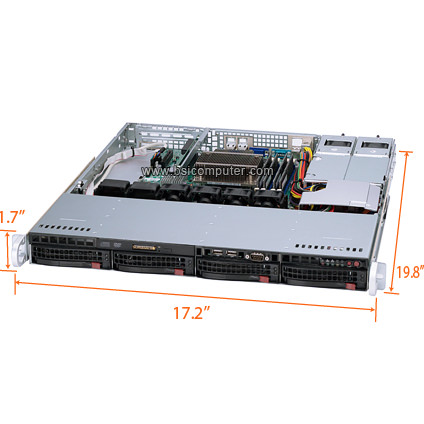

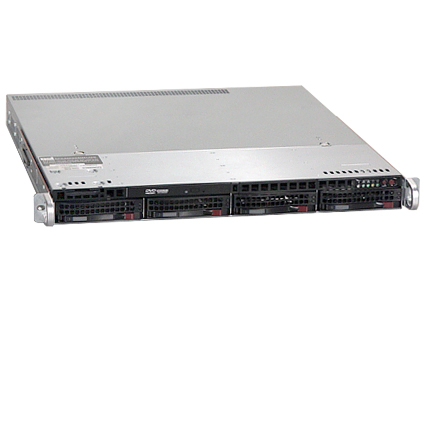

RMS111 1U 19.8" Depth Rack Mount Computer
Features:
- 1U Rack Mount Computer
- ATX / Micro ATX Form Factor
- 4 x 3.5" Hot-Swap Drive Bays
- 4 x 40mm 12,500 RPM PWM Fans
- 1 x PCIe/PCI Expansion Slot
- Supermicro CSE-813-MTQ-350CB Chassis
- Supermicro CSE-813MFTQC-505 Chassis (Optional)
- 19.8" Short-Depth Rack Mount Computer
- Due to the height of the chassis, the Motherboard I/O panel is not included

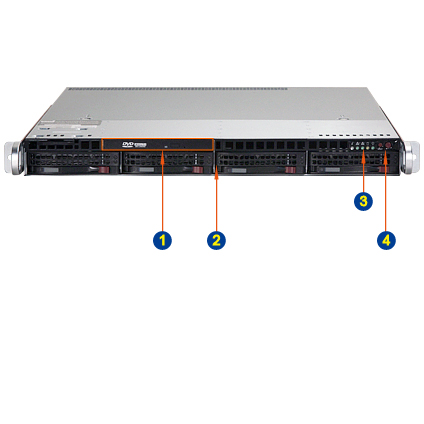

The RMS111 19.8" depth 1U industrial rack mount computer that is designed for high-density rack mount server applications. It provides four 3.5" Hot-Swap drive bays for high storage capacity, external slim DVD+/-RW optical drive, and four 12,500 RPM PWM system cooling fans. The RMS111 1U rack mount PC is equipped with 350W 80 plus platinum or 500W 80 plus platinum power supply as optional.
The RMS111 is designed for Virtualization, Cloud Computing, Enterprise Server, Data Center Optimized, Database Processing and Storage.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Brand | Features |
|
|
|
|
|
|
Base Configurations

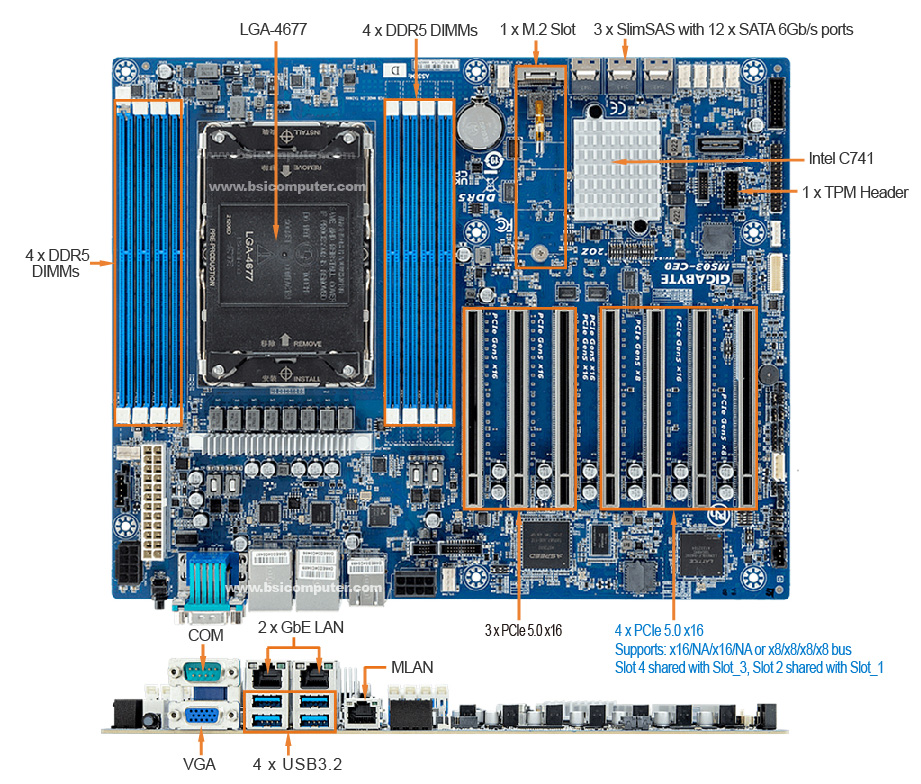

- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN

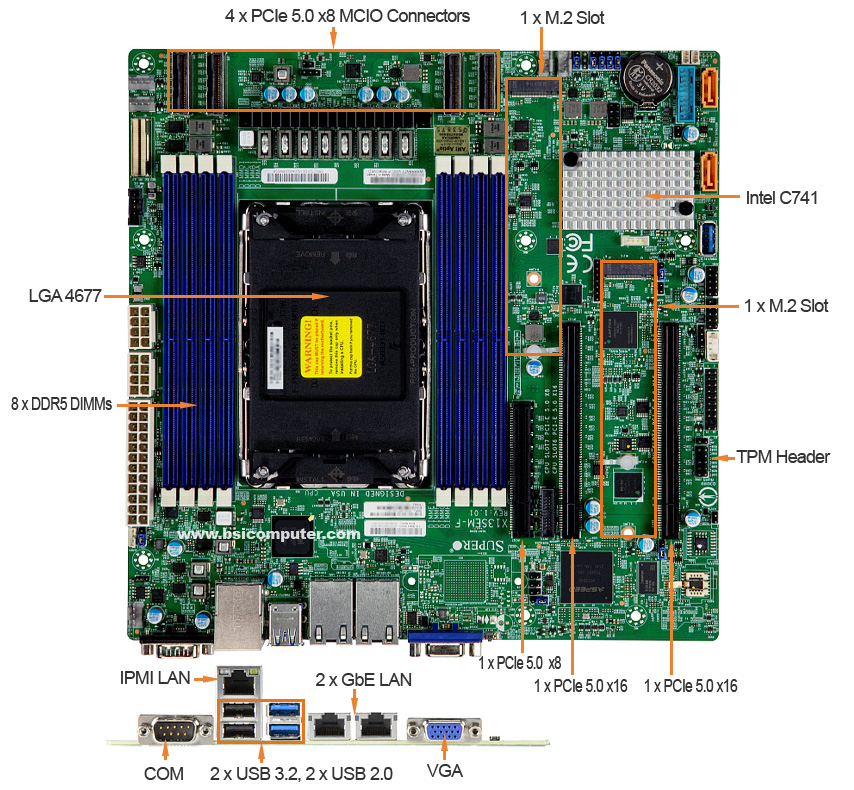

- Supermicro X13SEM-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- 2 x M.2 Slots
- 4 x PCIe 5.0 x8 MCIO Connectors
- Built-in Dual Gigabit LAN & IPMI LAN

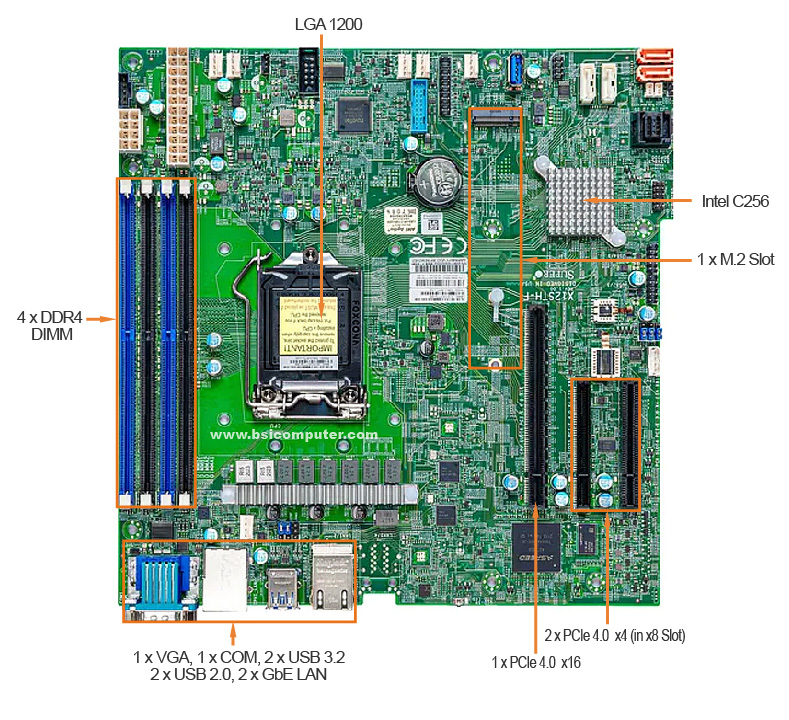

- Supermicro X12STH-F Motherboard
- Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor
- Intel C256 Chipset
- DDR4 ECC Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- 1 x TPM Header
- Built-in 2 x GbE LAN

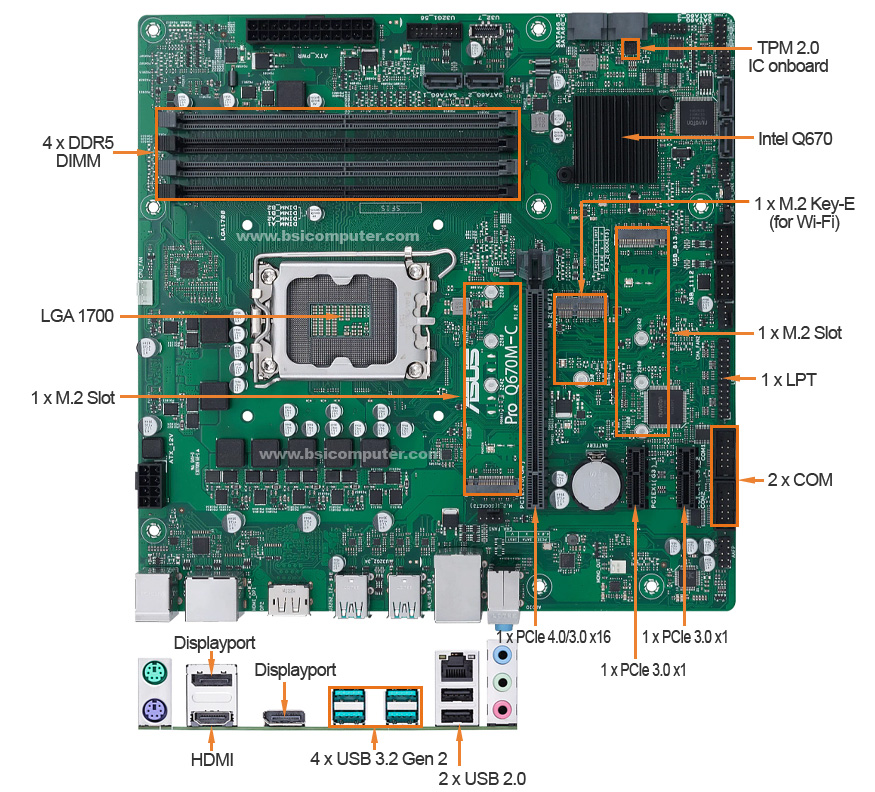

- ASUS PRO Q670M-C-CSM Motherboard
- 12th/13th Gen Intel Processor
- Intel Q670 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- 2 x M.2 Slots, 1x M.2 Key E
- TPM 2.0 IC Onboard
- Built-in 1 x GbE LAN

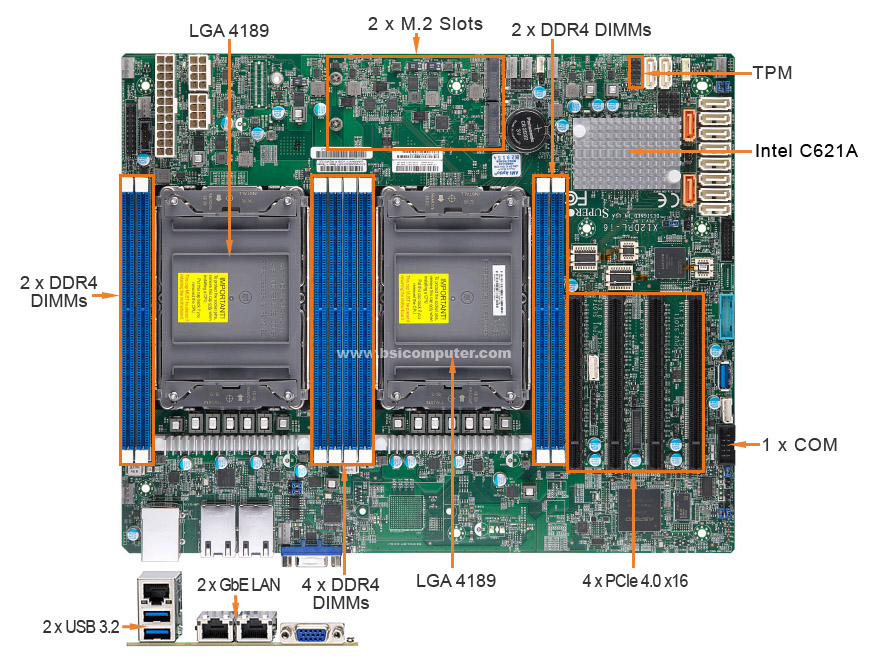

- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6)

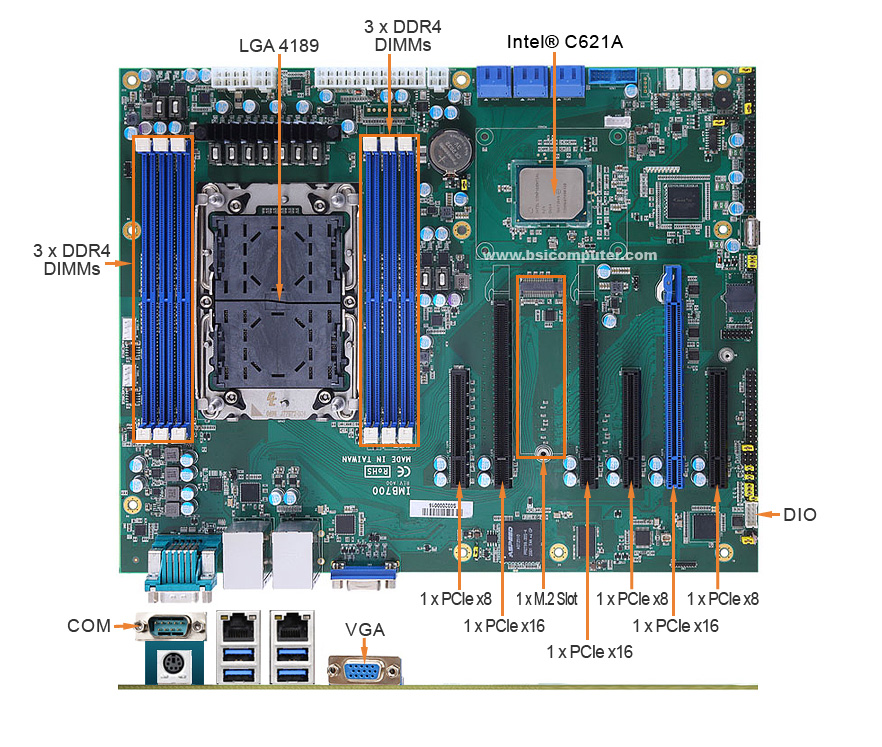

- IMB-C621AA Industrial Motherboard
- 3 to 5 Years Life Time
- 3rd Gen Intel Xeon Scalable Processors
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN

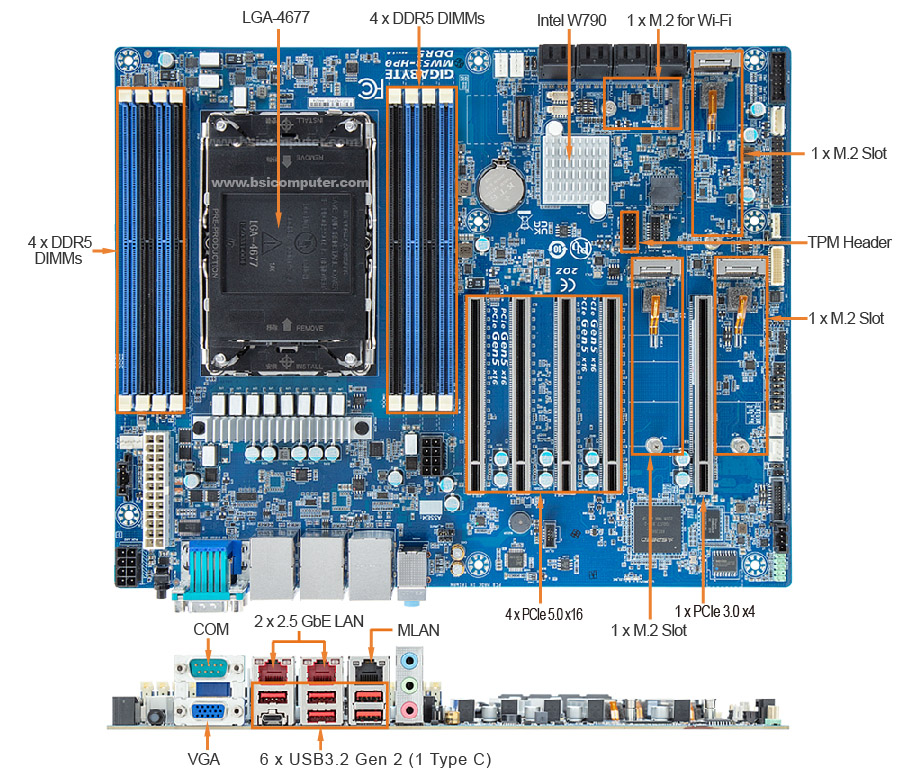

- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- 4x 3.5" SATA Hot-Swappable Removable Kit
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN

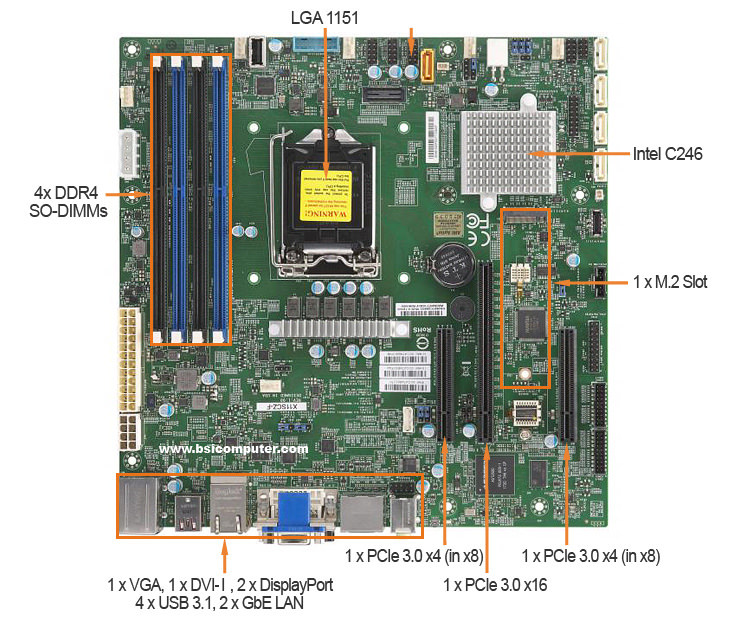

- Supermicro X11SCZ-F Micro ATX Motherboard
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Up to Intel Xeon E Processor
- Intel C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4x 3.5" SATA Hot-Swappable Removable Kit
- 1 x M.2 Slot
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN

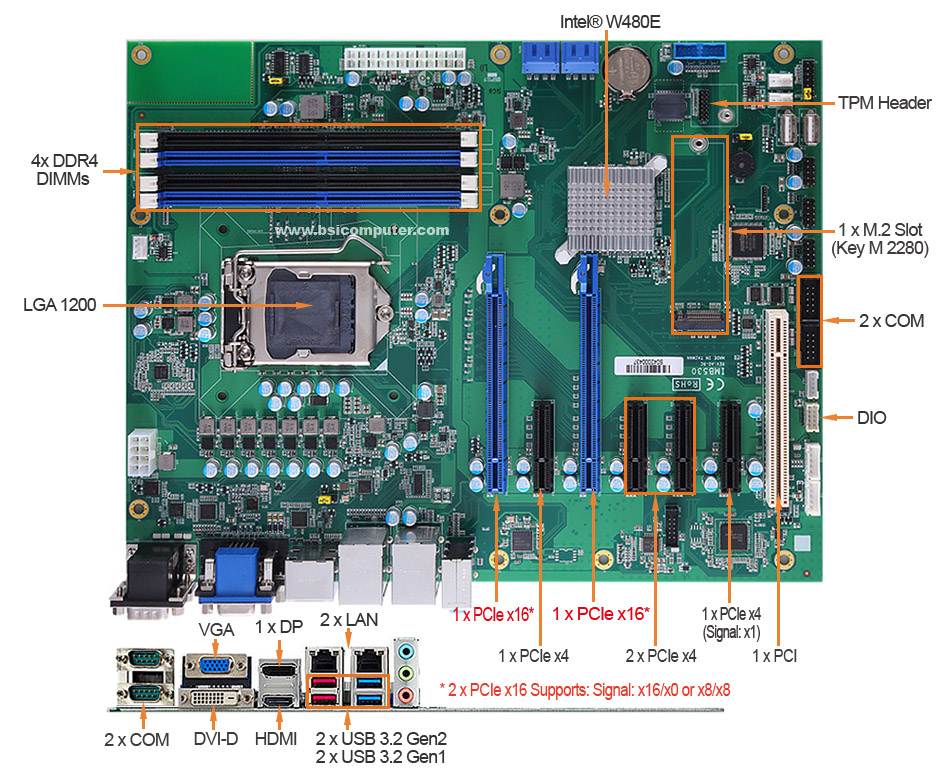

- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor and Intel Xeon W-1200 Series Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN

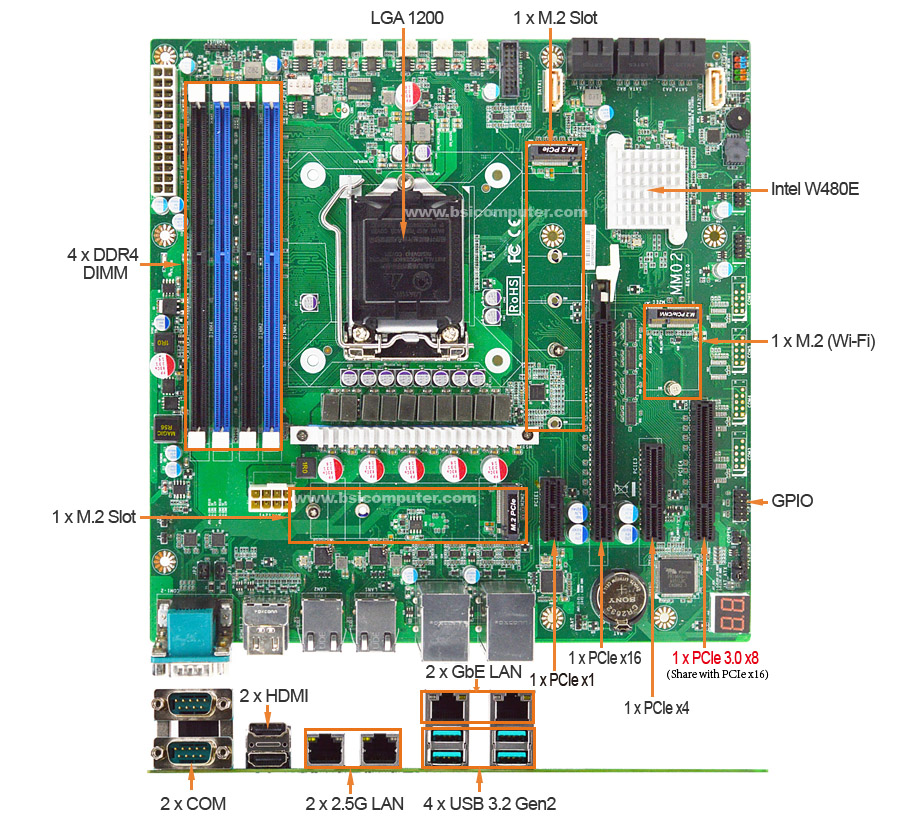

- IMB-W480EJ-MATX Motherboard
- Long-Life Lifecycle Through Q2' 2035
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi
- TPM 2.0 Module (Optional)
- 2 x RS232
- Built-in 2 x 2.5GbE LAN, 2 x GbE LAN
- Supermicro X13SCH-F Micro-ATX Motherboard
- Intel Xeon 6300 Series / Intel Pentium Processor
- Intel C266 Chipset
- DDR4 ECC Unbuffered Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 1 x TPM Header
- Built-in 2 x Gigabit LAN, 1 x IPMI LAN
