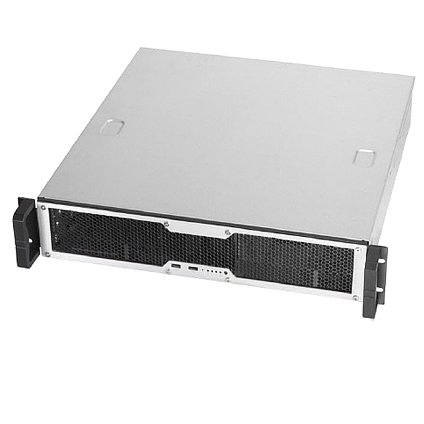

RMS201-AMD 2U Rackmount Computer
Features:
- 2U Industrial Rackmount Computer
- 4 Drive Bays (1x 5.25" and 3x 3.5" Drive Bays)
- 7 Slot Low-Profile Expansion Slot
- Cushion on 3.5" and 2.5" HDD holders for minimized HDD vibration
- Slideway design for HDD cage installation and removal
- Support ATX or MATX Motherboard
- 18" Depth Rack Mount PC
The RMS201-AMD is an advanced industrial server with front access PS/2 PSU, anti-vibration drive cages to depress HDD vibration. The RMS201-AMD supports 7-slot low profile rear window for flexible configuration and space-sensitive applications.
The RMS201-AMD is designed for small business; Web/Hosting; Email/Firewall/Print Server; Gateway and Compact Network Appliance applications.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations
2U Rackmount Computer with Supermicro H13SSL-N Motherboard
- Supermicro H13SSL-N Motherboard
- 4th Generation AMD EPYC™ Processors
- 16GB DDR5 ECC Registered Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 3 x PCIe 5.0 x16, 2 x PCIe 5.0 x8
- 2 x GbE LAN, 1 x IPMI LAN
2 x 10GBase-T LAN (H13SSL-NT, Optional) - TPM Module (Optional)
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
2U Rackmount Computer with ASUS PRIME X670-P Motherboard
- ASUS PRIME X670-P ATX Motherboard
- AMD AM5 Socket for Ryzen Processors
- AMD X670 Chipset
- 8GB DDR5 Memory
- 500GB M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 7 x USB3.2, 1 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in HDMI, DisplayPort and Audio
- Built-in 2.5GbE LAN
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
2U Rackmount Computer with ASRock X570 Phantom Gaming 4 Motherboard
- ASRock X570 Phantom Gaming 4 ATX Motherboard
- AMD Ryzen 5 5500 6-core, 12-threads 3.60 GHz Processor
- AMD X570 Chipset
- 8GB DDR4 Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Slots (2230/2242/2260/2280/22110), 1 x M.2 E Key for Wi-Fi
- 1 x Thunderbolt Header
- 1 x TPM Header, 1 x SPI TPM Header
- GeForce 210 1GB DDR3 64Bit PCI Express Video Card VGA/DVI/HDMI
- 8 x USB3.2 Ports
- Built-in Gigabit LAN
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
2U Rackmount Computer with ASRock X670E PG Lightning Motherboard
- ASRock X670E PG Lightning ATX Motherboard
- AMD AM5 Socket for Ryzen Processors
- AMD X670 Chipset
- 8GB DDR5 Memory
- 500GB M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 7 x USB3.2, 1 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in HDMI, DisplayPort and Audio
- Built-in 2.5GbE LAN
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
2U Rackmount Computer with ASROCK ROMED8-2T Motherboard
- ASROCK ROMED8-2T Motherboard
- 3th Generation AMD EPYC™ Processors
- 16GB DDR4 ECC Registered Memory
- 500GB M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 2 x 10 GbE LAN, 1 x IPMI LAN
- TPM Module (Optional)
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
- Ships in 5 - 7 Business Days
