RMS2350 2U Rackmount Computer
Features:
- 2U Rack Mount Computer
- Front Access Rackmount Chassis
- 2 x USB 2.0 Ports at Front Bezel (USB 3.0 as Option)
- 7 x Low Profile Slots
- 2 x 3.5" Drive Bays, 4 x 2.5" Drive Bays, Equipped with anti-vibration Function
- 2 x 80mm Rear Exhaust Silent Fans
- 1.2mm ~ 2.0mm SECC Main Sheet Metal
- ATX or Micro ATX Motherboard
- 13.78" Deep Rack Mount PC
The RMS2350 is a 2U rack mount computer designed for an ATX/Micro ATX form factor. The system is designed to have the I/O interface as the front panel so the motherboard connections are easily accessible. The front panel also contains 2 x USB 2.0 ports which can be optionally upgraded to USB 3.0 ports. The 7 x available expansion slots are vertically situated in the 2U chassis which means the compatible cards would be low profile. For storage capabilities, the RMS2350 has 2 x 3.5” bays and 4 x 2.5” bays all equipped with anti-vibration pads. For air flow, the chassis comes equipped with 2 x 80mm fans configured to exhaust in the rear of the unit.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations
Model: ATX Rackmount Computer - RMS2350
- Gigabyte MS03-CE0 Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
Base Price: |
$2,559.00 |
- Supermicro C9Z790-CG ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- DDR5 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 4 x USB3.2 Gen 2 (2 Type C)
- 1 x TPM Header
- Built-in 1 x GbE LAN, 1 x 10GbE LAN
Base Price: |
$1,345.00 |

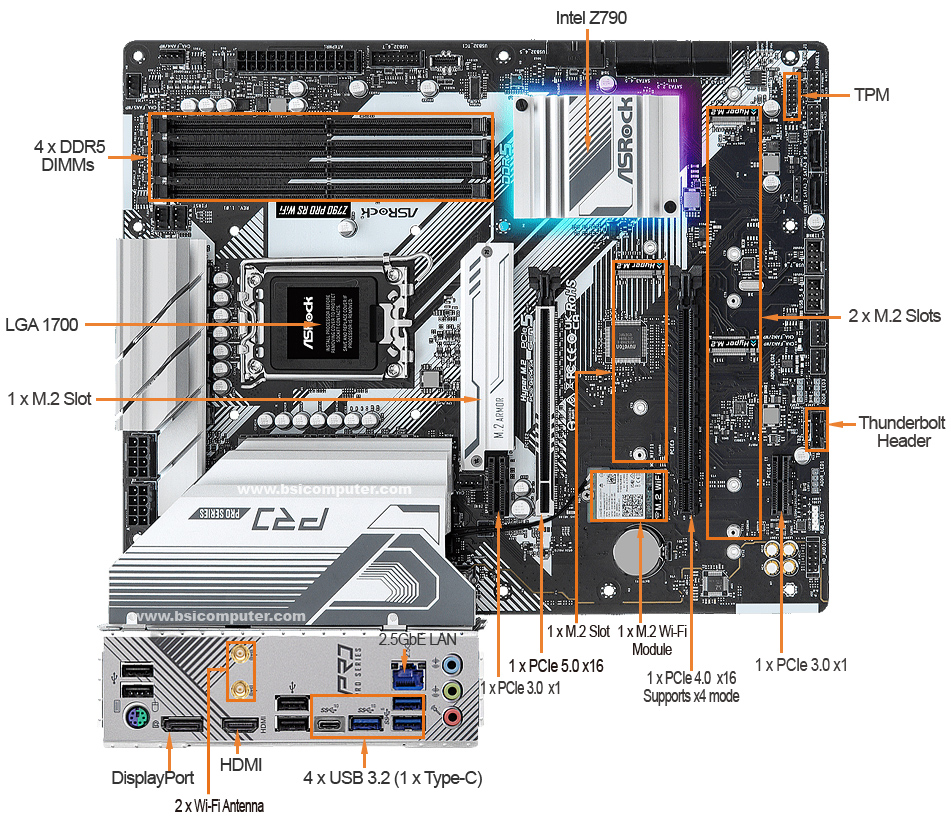

- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
Base Price: |
$899.00 |
- ASUS PRIME Z790-P WIFI ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 3 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
Base Price: |
$945.00 |
- ASUS Q670EA-IM-A ATX Motherboard
- 12th/13th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports
Base Price: |
$1,005.00 |
- Supermicro X13SEI-F Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
Base Price: |
$2,265.00 |
- GIGABYTE MW53-HP0 Motherboard
- Intel® Xeon® W-2400 Processor, Intel® Xeon® W-3400 Processor
- Intel® W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
Base Price: |
$2,159.00 |
Model: Industrial Rackmount Computer - RMS2350
- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel® R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,205.00 |
- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th Gen Intel Processor
- Intel® Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
Base Price: |
$1,145.00 |
- IMB-Q470EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2035
- 10th/11th Gen Intel Processor
- Intel® Q470E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0
- 2 x M.2 M Key, 1 x M.2 E Key, 1 x M.2 B Key
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,075.00 |
- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel® Processor
- Intel® H410 Chipset
- DDR4 Memory
- M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$865.00 |
- IMB-Q370JT2 Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor
- Intel® Q370 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- TPM Onboard
- Built-in Dual Gigabit LAN
Base Price: |
$1,025.00 |
