RMS242LP 2U Industrial Rack Mount Computer
Features:
- 2U Rack Mount Industrial Computer
- Flexible Front I/O and Rear I/O Application Options
- Heavy-duty Preplated SPGC Cold-rolled Steel
- EATX/ATX Motherboard (up to 12" x 13")
- 4 x 2.5" Hot-swap Drive Bays
- 7 x Low Profile Expansion Slots
- Front Access: 2 x USB 3.0
- Flexible Front I/O Options
- 4 x 60x38mm Easy Swap Cooling Fans
- 800W Redundant 80+ Platinum Power Supply
- 17.7" Short-depth Rack Mount PC
The RMS242LP rack mount system is a versatile and efficient solution designed for demanding applications requiring flexible configurations. This 2U chassis offers flexible front I/O and rear I/O application options, allowing for customizable connectivity setups. It features four easy swap fans for superior cooling and supports GPU cards via a 2U riser card. The system includes four 2.5†external hot swap drive bays, facilitating rapid storage upgrades and maintenance. Equipped with a redundant PSU rated 80+ Platinum, it ensures reliable power delivery and energy efficiency. The RMS242LP also provides two front-access USB 3.0 ports for convenient connectivity. Its short-depth design makes it ideal for space-critical applications, and it supports both 2 post and 4 post rack deployments, offering versatile installation options.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations
- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN
Configured: |
$1,855.00 |
- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN
Configured: |
$2,245.00 |

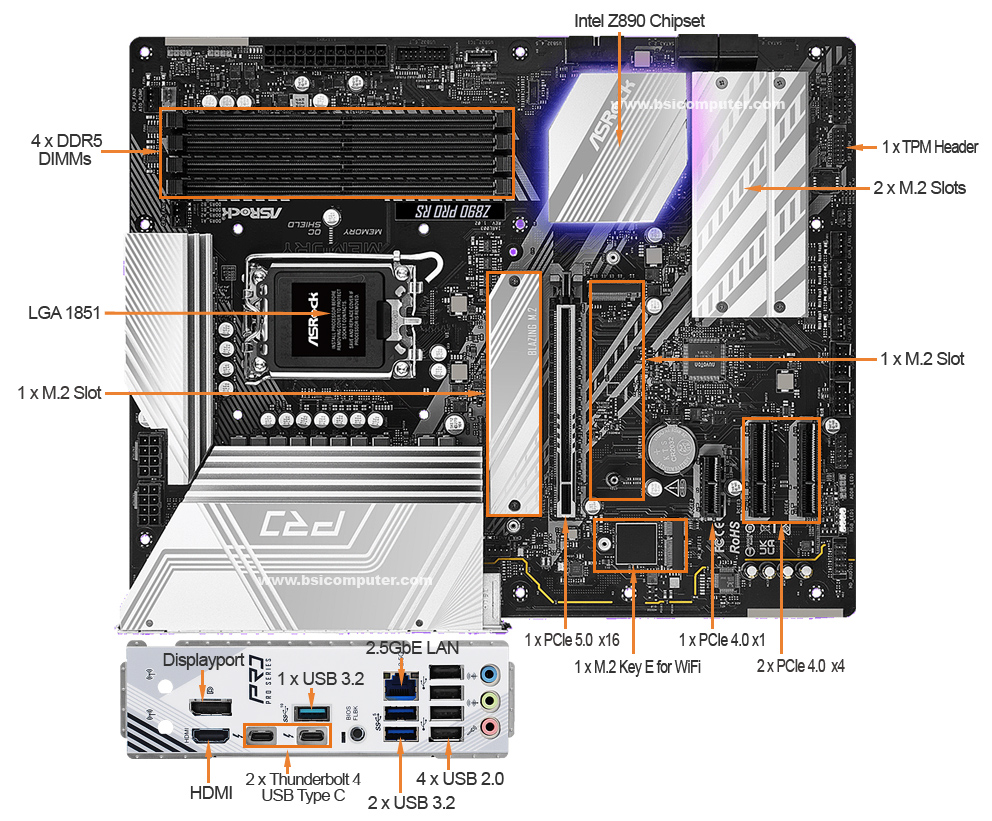

- ASROCK Z890 Pro RS ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 2.5GbE LAN
Configured: |
$1,815.00 |
- Supermicro X14SBI-TF Motherboard
- Intel Xeon 6700E Series Processor
- DDR5 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- Onboard TPM2.0
- 1 x TPM Header
- Built-in Dual GbE LAN, 1x IPMI LAN
Configured: |
$5,305.00 |
- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
Configured: |
$3,085.00 |
- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
Configured: |
$2,925.00 |
- Supermicro X13DEI Motherboard
- 2x 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13DEI-T, Optional)
Configured: |
$4,145.00 |
- GIGABYTE MS04-CE0 Motherboard
- Intel Xeon 6 Processors
- System on Chip
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN, 1 x MLAN
Configured: |
$5,765.00 |
- Supermicro X13DAI-T Motherboard
- 2x 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 2 x PCIe 5.0 x4 M.2 Slots
- 4 x NVMe Ports PCIe 5.0 x4 via 2 MCIO Connectors
- 5 x PCIe 5.0 x16, 1 x PCIe 5.0 x8
- 1 x TPM Header
- Built-in 2 x 10G LAN
Configured: |
$4,385.00 |
- GIGABYTE MS73-HB0 Motherboard
- 2 x 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 1 x TPM Header
- Built-in 2 x 10GbE LAN, 2 x 1GbE LAN, 1x MLAN
Configured: |
$4,675.00 |

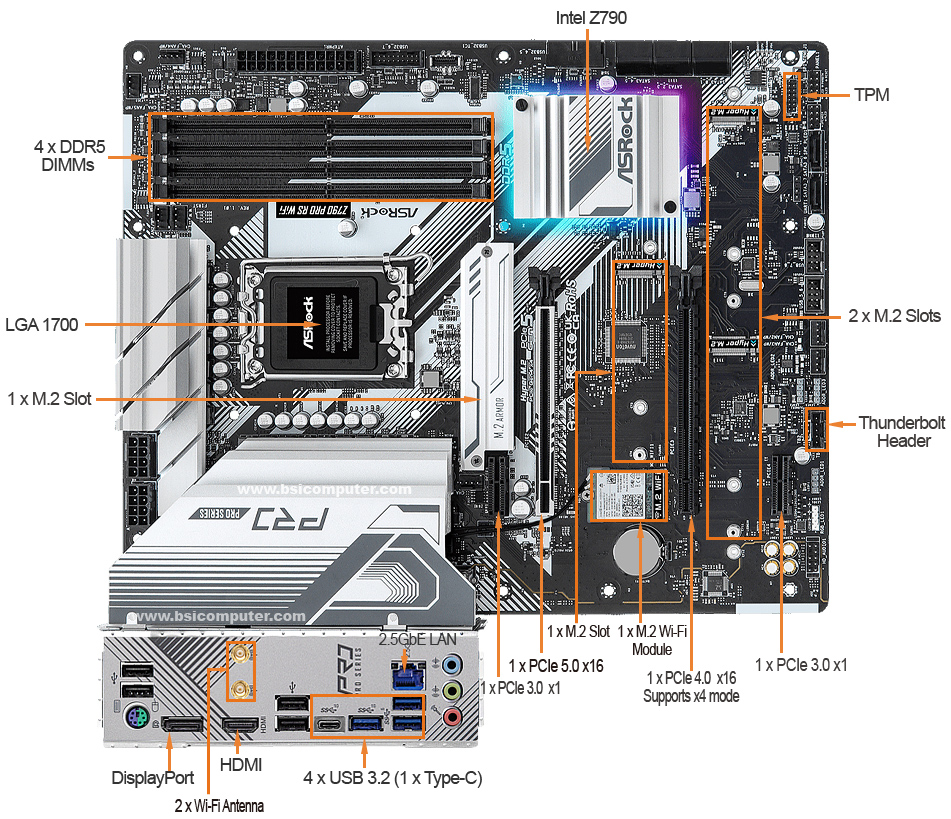

- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
Configured: |
$1,365.00 |
- ASRock EC262D4-4L Motherboard
- Intel Pentium Processor
- Intel Xeon E-2400 Processor
- Intel C262 Chipset
- DDR5 ECC Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- 1 x TPM Header
- Built-in 4 x Gigabit LAN, 1x IPMI LAN
Configured: |
$1,915.00 |
- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
Configured: |
$2,759.00 |
