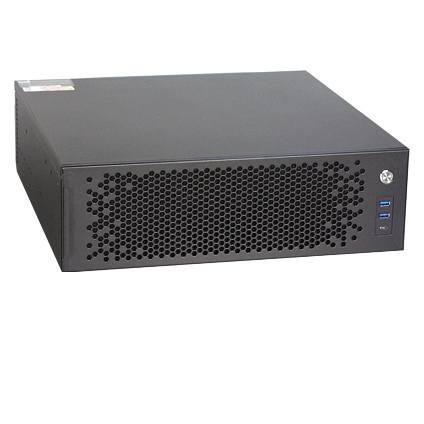

RMS3170 3U Rackmount Computer
Features:
- 3U Rack Mount Industrial Computer
- E-ATX/SSI-EEB/SSI-CEB/ATX Motherboard (12.8" x 13", 12" x 13", 12" x 10.5", 12" x 9.6")
- 6 x 2.5" Drive Bays
- 8 x Full Height Expansion Slots

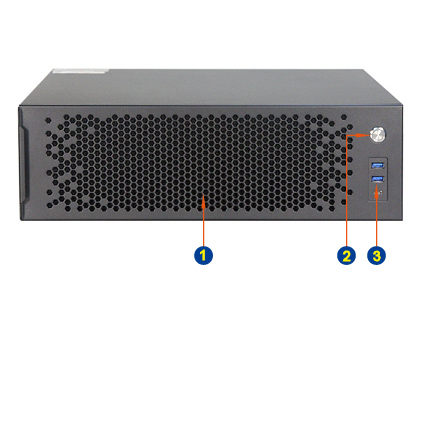

- Front Control: Power On/Off, 2 x USB 3.0
- Server Grade All-In-One(AIO) Liquid Cooler (Optional)
- 850W/1000W SFX Power Supply
- Material of Chassis: ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel, Made in USA
- 17.04" Depth Rack Mount PC

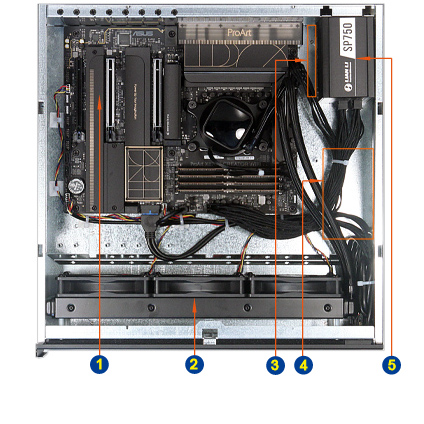

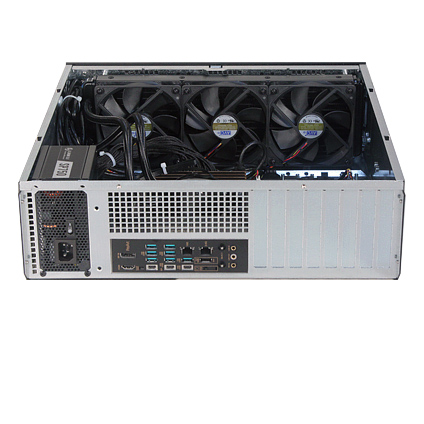

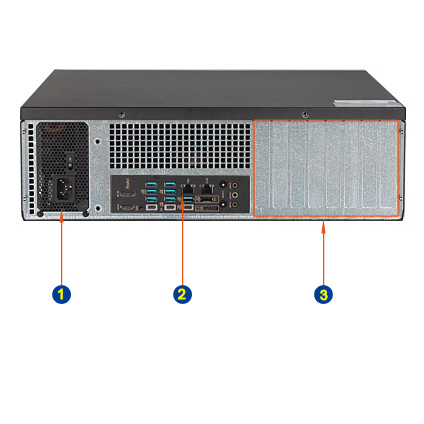

The RMS3170 is a robust rackmount chassis designed for high-performance computing applications, offering broad compatibility with SSI-EEB, SSI-CEB, eATX, and XL ATX motherboards up to 13 inches deep. Engineered for efficient airflow, it supports mounting for up to three 120mm fans and accommodates air coolers up to 110mm in height. Its flexible storage bracket allows configurations of up to three 3.5" HDDs, eight 2.5" SSDs, or a mix of both, ensuring adaptable storage solutions. The chassis also includes eight PCIe slot cutouts for expansion cards and GPUs up to 115mm tall and supports a single SFX or SFX-L power supply. Proudly made in the USA from domestic materials, the RMS3170 is backed by a guaranteed availability of over eight years, making it ideal for long-term deployments.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations
- ASRock IMB-X1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN (ASRock IMB-X1715)
- Built-in 2 x GbE LAN, 1 x 10G LAN (ASRock IMB-X1715-10G, Optional)
- ASRock IMB-1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel Q870 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN

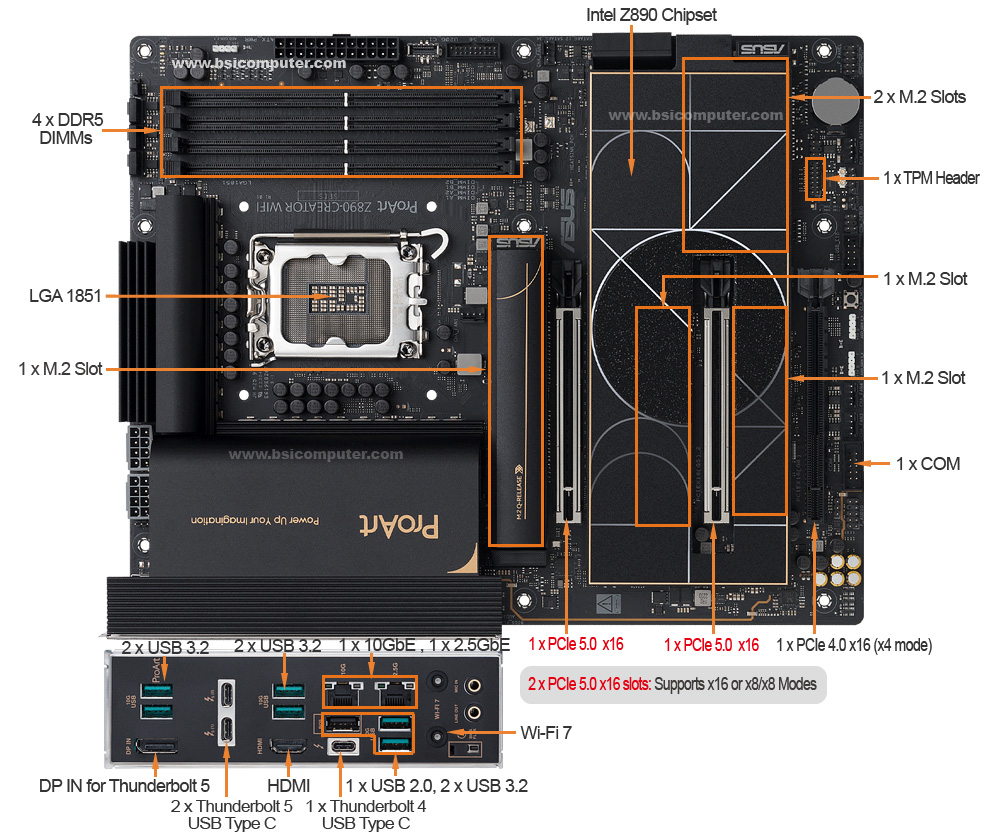

- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN

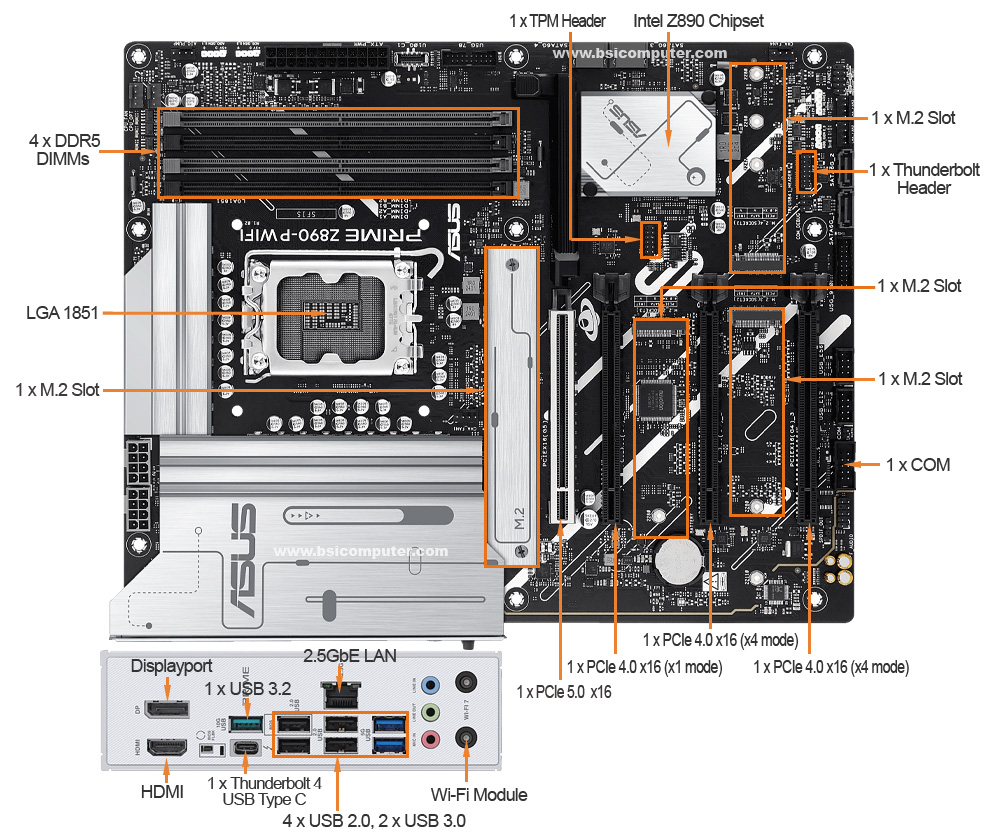

- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN

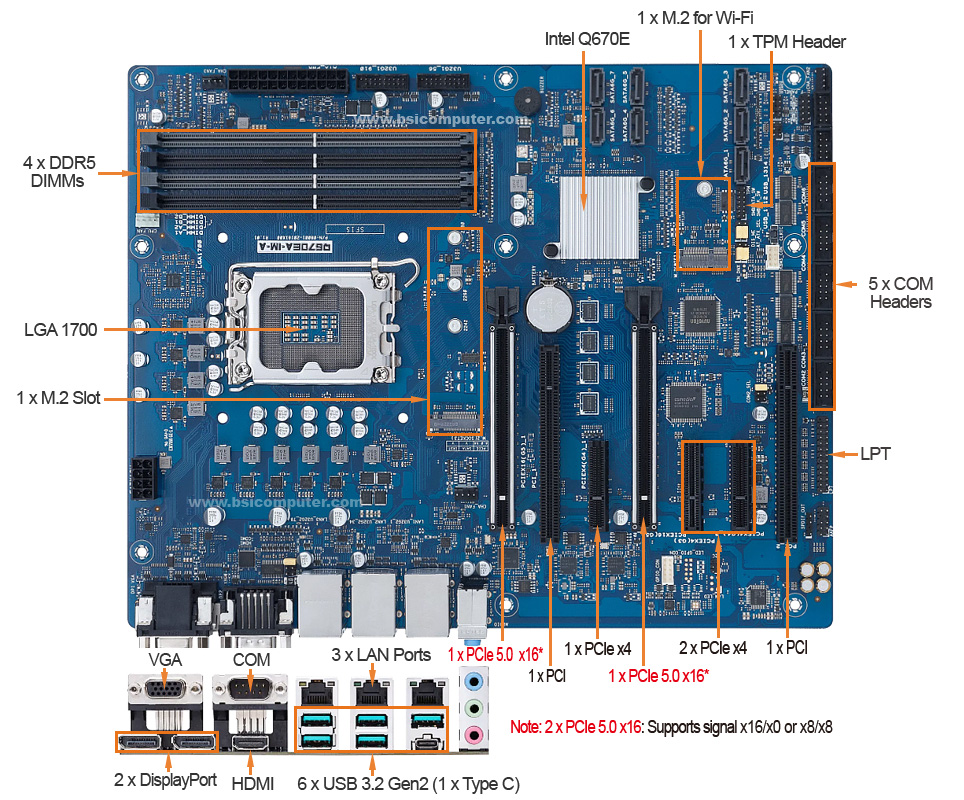

- ASUS Q670EA-IM-A ATX Motherboard
- Long-Life Lifecycle Through Q1' 2030
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports

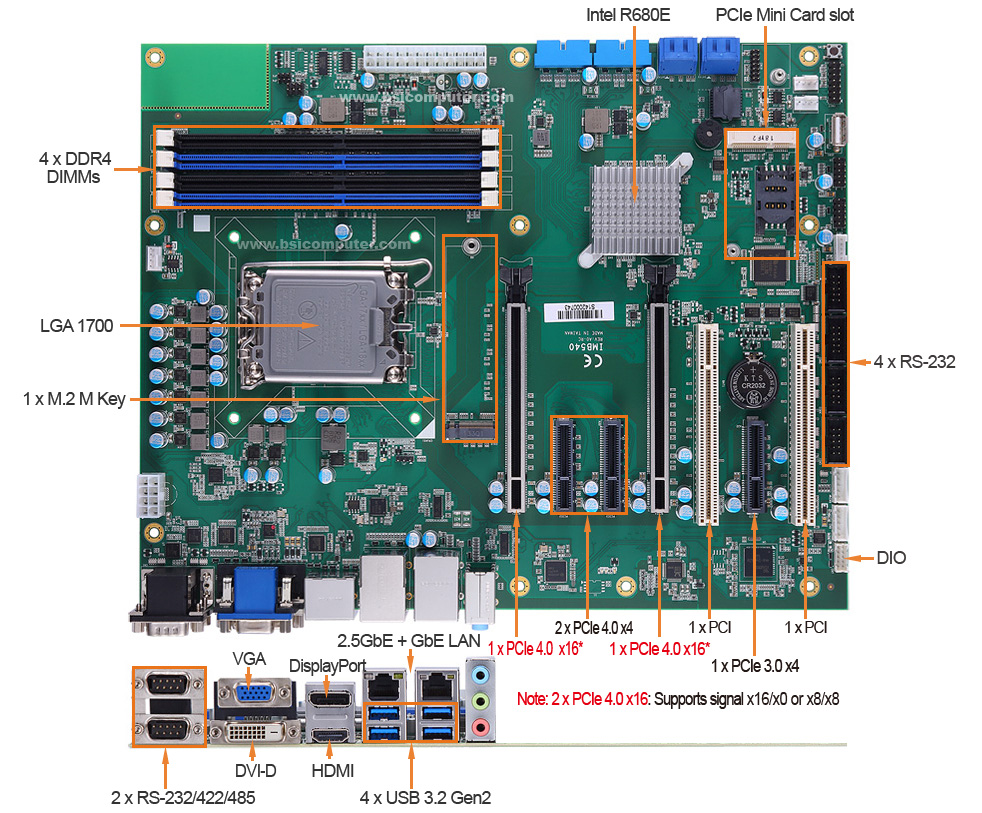

- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN

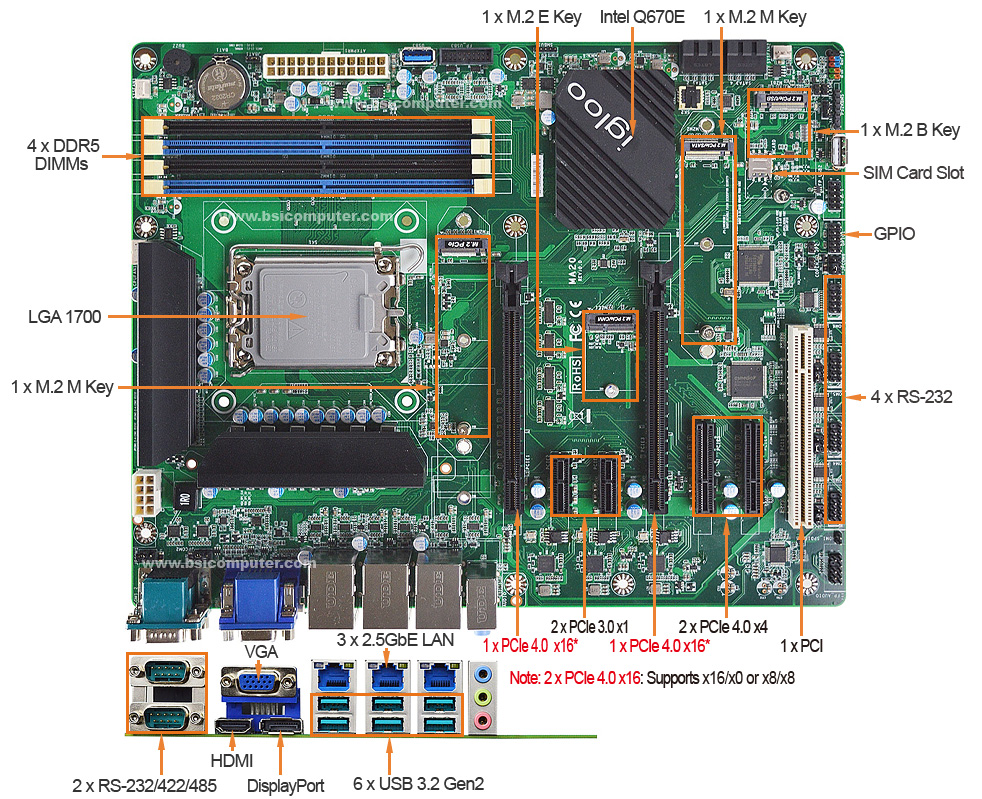

- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
