Features:

• 3U Industrial Rack Mount Computer
• Front Access I/O Design
• ATX Form Factor Motherboard (Max. to 12" x 10.5" CEB)
• 1 x 5.25" External Drive Bay
• 2 x 3.5" External Drive Bays (Optional)
• Front Access 2 x USB 3.0 Ports
• Supports up to 7 x Expansion Slots
• 3 x 60mm Cooling Fans with Air Filter (Optional)
  1 x 60mm Fan with Fan Guard Above the Top of I/O Section (Optional)
• 1.2mm~2.0mm thick high-strength SGCC Sheet Metal
• 13.2" Short-depth Rack Mount Chassis

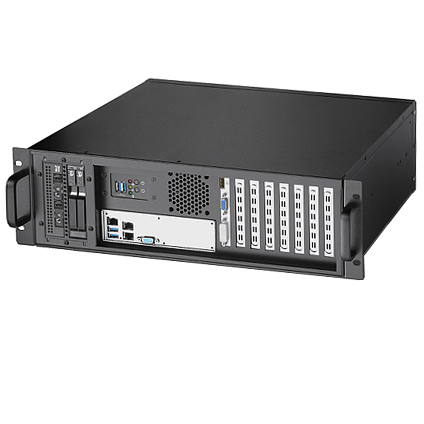

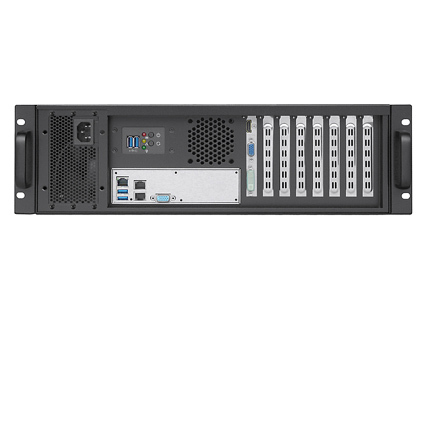

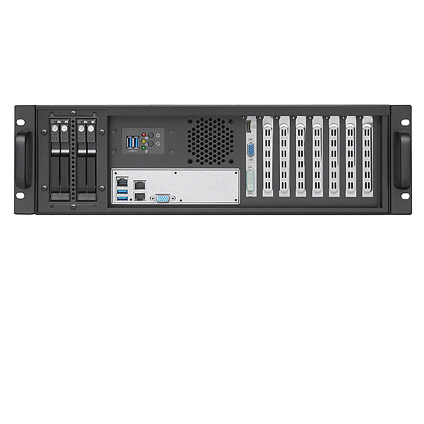

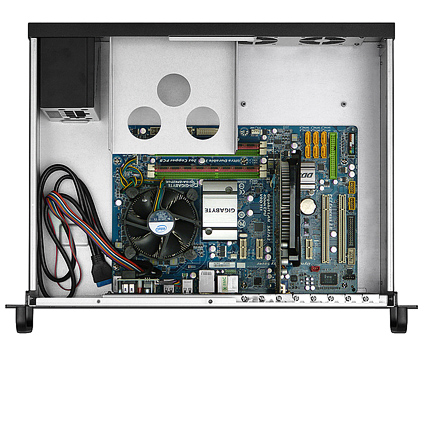

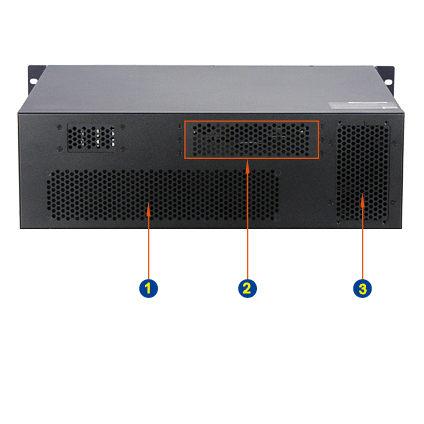

The RMS3335 rack mount computer chassis is a versatile and robust solution designed to accommodate various configurations without the need for additional fixing brackets. The chassis is also specialized in that the I/O interface will have a front facing orientation as opposed to the the traditional back facing orientation. It features one 5.25” optical disk drive (ODD) bay for ample storage space. Cooling options include three 60mm intake fans installed under the 5.25" ODD and an optional 60mm exhaust fan with a fan guard above the I/O section. The chassis is constructed from ultra-high strength SGCC sheet metal with a thickness ranging from 1.2mm to 2.0mm, providing exceptional durability. Standard features include two USB 3.0 ports and LED indicator lights for LAN, HDD, and power status. It supports SFX (MicroATX) power supply units (PSUs) with power factor correction (PFC) and is compatible with a range of motherboard sizes, including CEB1.01, ATX, mATX, and ITX. The 8-slot rear panel supports 7-slot NVIDIA or other GPU cards up to 280mm in length. Finished with scratch-resistant black textured paint, the RMS3335 has a chassis dimension of 19" x 3U x 335mm (13.19" deep), making it a reliable choice for various industrial and commercial applications.
