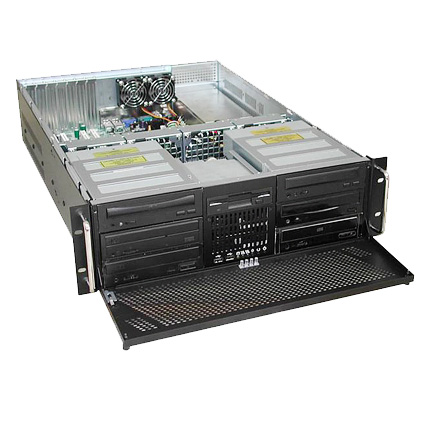

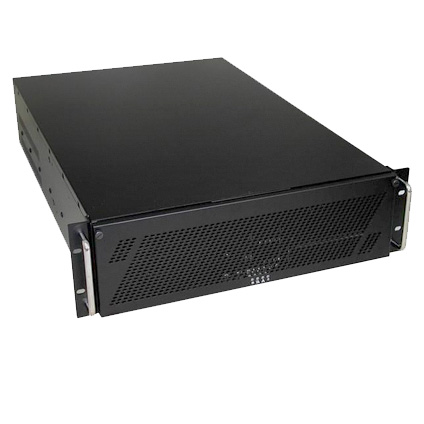

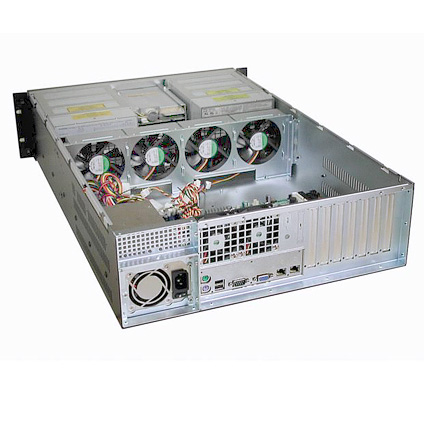

RMS346 3U Rack Mount Computer
Features:
- 3U Intel Xeon Rackmount Computer
- Support E-ATX Motherboard
- Support 7x Full-Size Expansion Card
- 6x 5.25" External Drive Bays, 1x 3.5" External Drive Bay
- 2x 3.5" Internal Drive Bays
- 4x 92mm, 2 x 60mm Cooling Fans
- Heavy Duty Cold Rolled Electroplated Steel Chassis
- Single Door With 2 Thumbscrews (Removable)
- 25.6" Depth Rackmount PC
The RMS346 is 3U rack mount server that supports Dual Xeon processors on a EATX motherboard. The chassis is made of heavy duty cold rolled electroplated steel and met EIA RS-310C standard. It is the best industrial server solution for Surveillance DCR;GPU support server: Flash Array server; Video and Music Production; Network Telephony and Data Acquisitions.
The RMS346 comes with 6x 5.25" external drive bays as standard which can be filled with up to 24x2.5" removable kits to expand storage capacity.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations

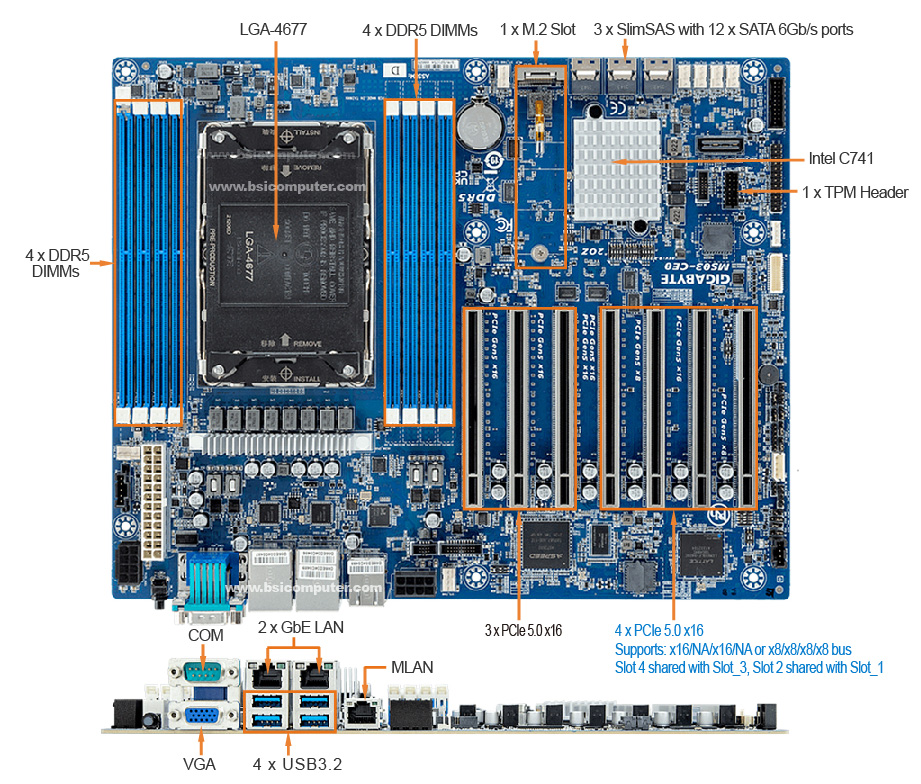

- Gigabyte MS03-CE0 Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 16GB DDR5 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in Video
- Built-in 2 x Gigabit LAN, 1 x MLAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$2,719.00 |

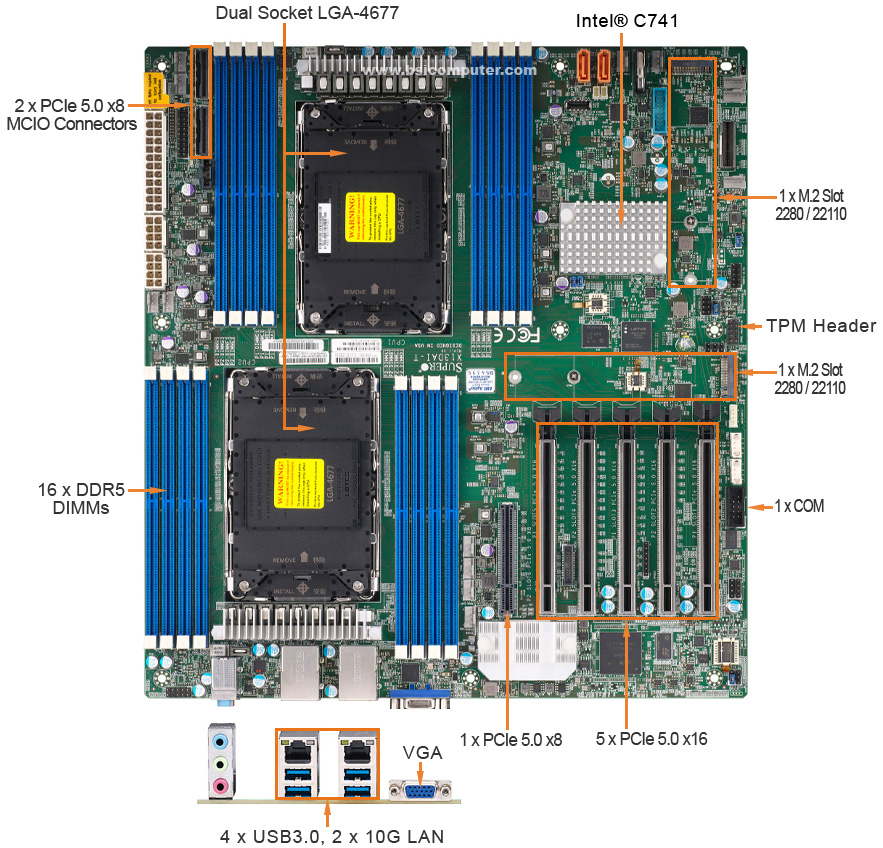

- Supermicro X13DAI-T Motherboard
- 2x 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 32GB DDR5 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 2 x PCIe 5.0 x4 M.2 Slots
- 4 x NVMe Ports PCIe 5.0 x4 via 2 MCIO Connectors
- 5 x PCIe 5.0 x16, 1 x PCIe 5.0 x8
- 1 x TPM Header
- Built-in Video and Audio
- Built-in 2 x 10G LAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$3,895.00 |

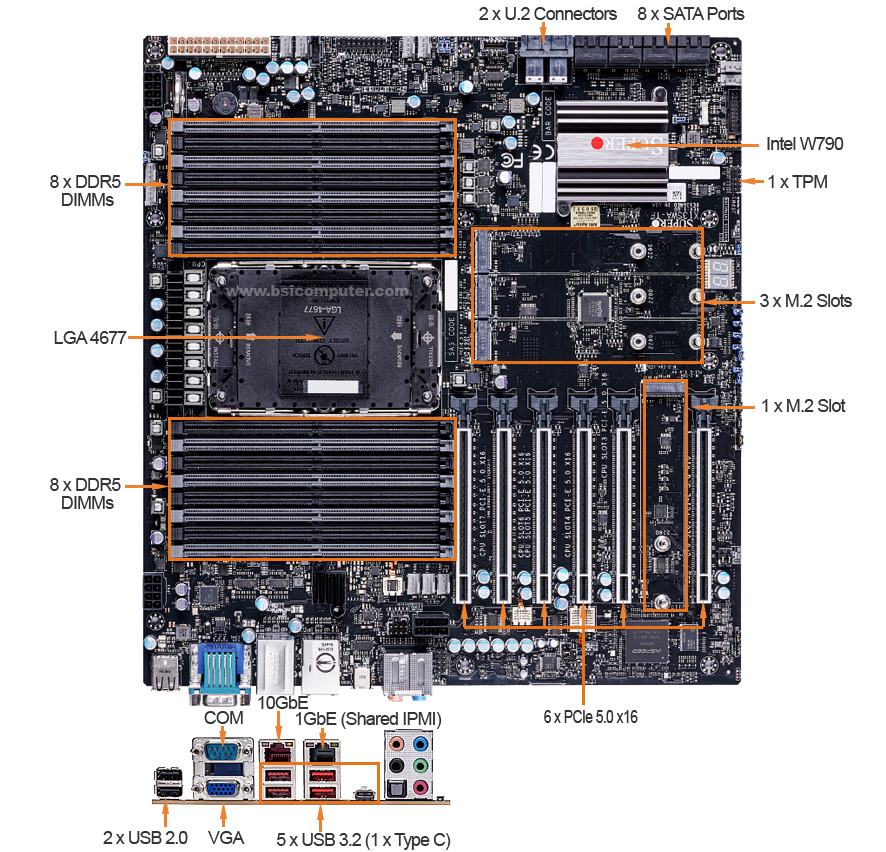

- Supermicro X13SWA-TF Motherboard
- Intel® Xeon® W-2400 Processor, Intel® Xeon® W-3400 Processor
- Intel® W790 Chipset
- 16GB DDR5 ECC Registered Memory
- 500GB M.2 NVME Solid State Drive
- 4 x PCIe 5.0 x4 M.2 Slots
- 6 x PCIe 5.0 x16
- 1 x TPM Header
- 2 x U.2 Connector
- Built-in Video and Audio
- Built-in 1x 10GbE LAN, 1x GbE LAN (Shared IPMI)
- 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$2,635.00 |

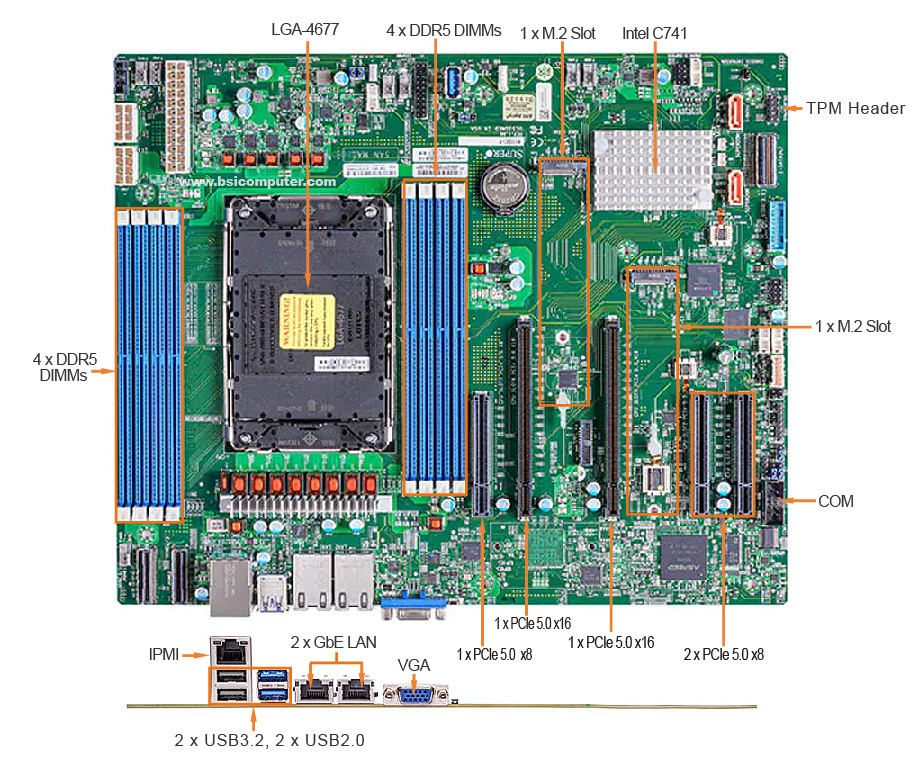

- Supermicro X13SEI-F Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 16GB DDR5 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in Video
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional) - 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$2,485.00 |

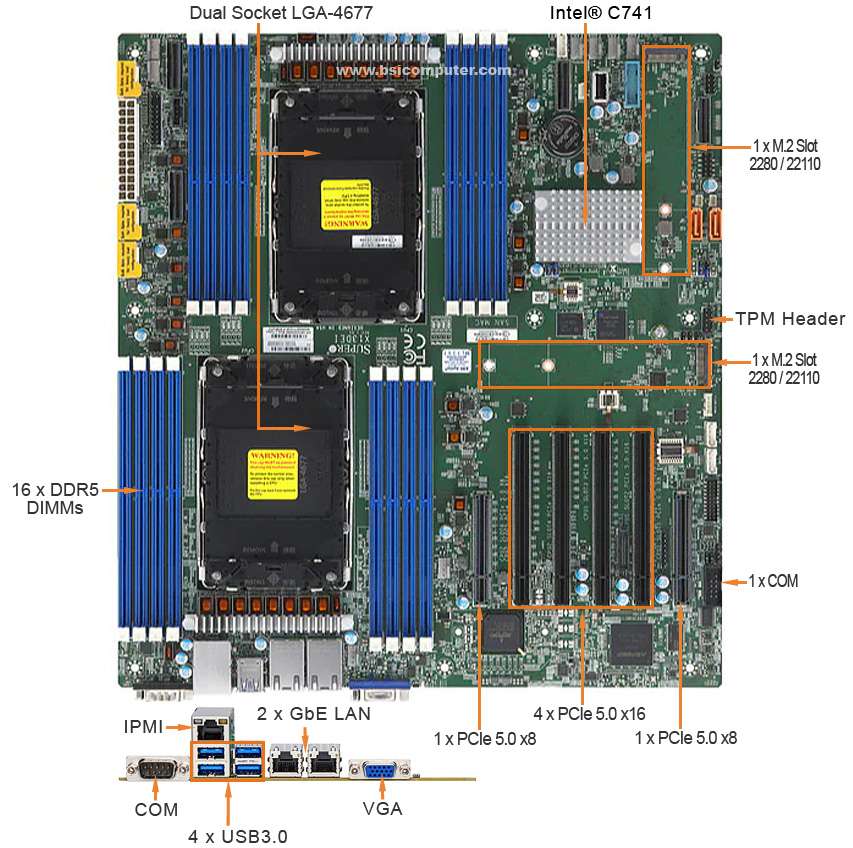

- Supermicro X13DEI Motherboard
- 2x 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 32GB DDR5 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in Video
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13DEI-T, Optional) - 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$2,629.00 |

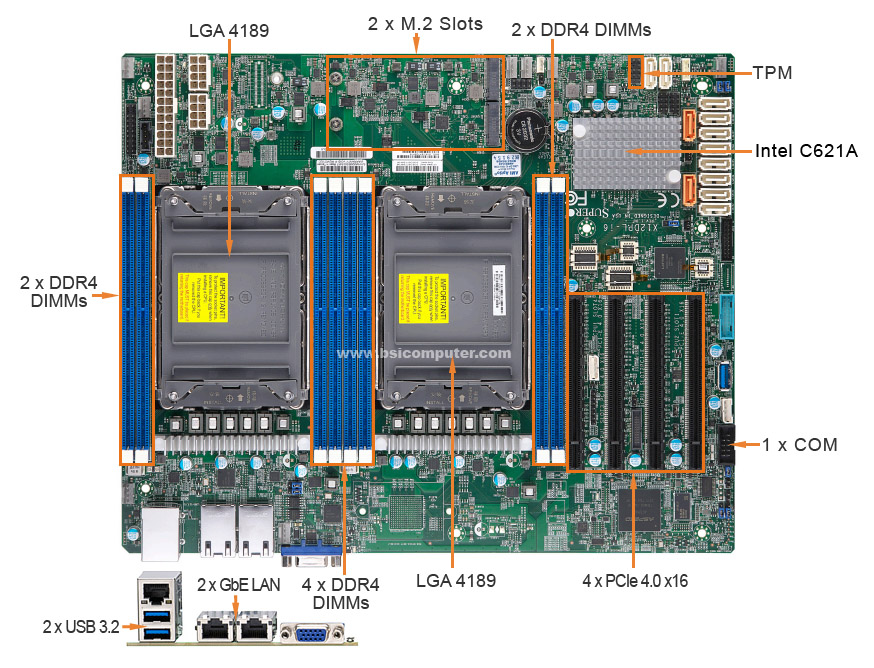

- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel® C621A Chipset
- 32GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- Built-in Video
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6) - 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$3,259.00 |

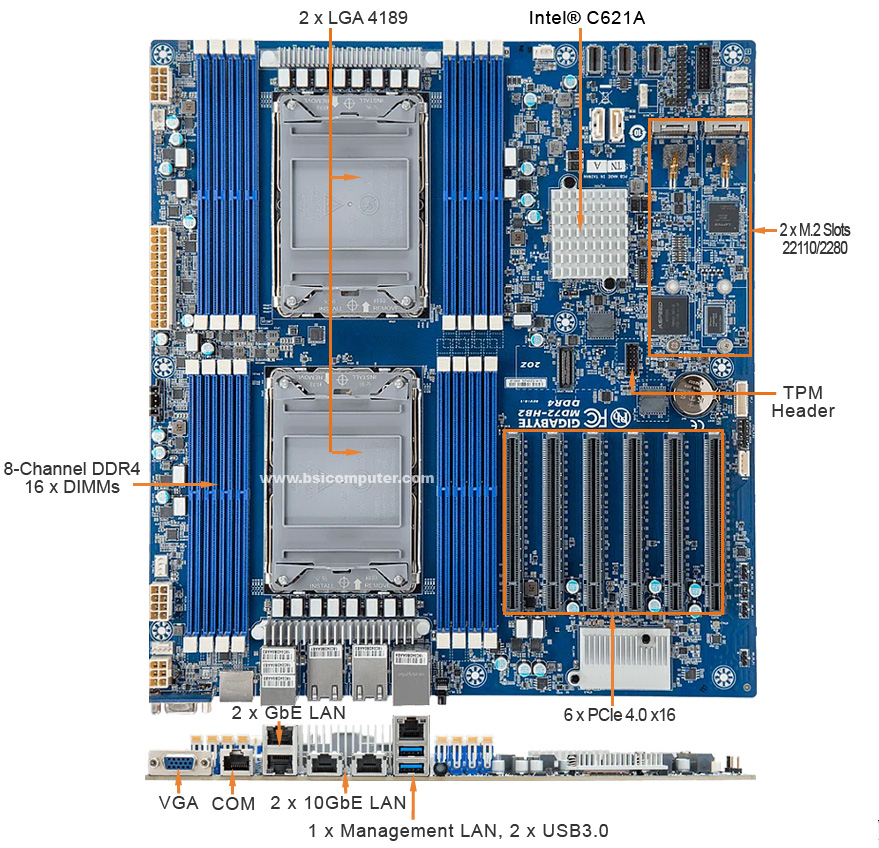

- Gigabyte MD72-HB2 Motherboard
- 2x 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 32GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- Built-in Video
- 1 x TPM Header
- 6 x PCIe 4.0 x16
- Built-in 2 x GbE LAN, 2 x 10GbE LAN, 1 x Management LAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$3,715.00 |

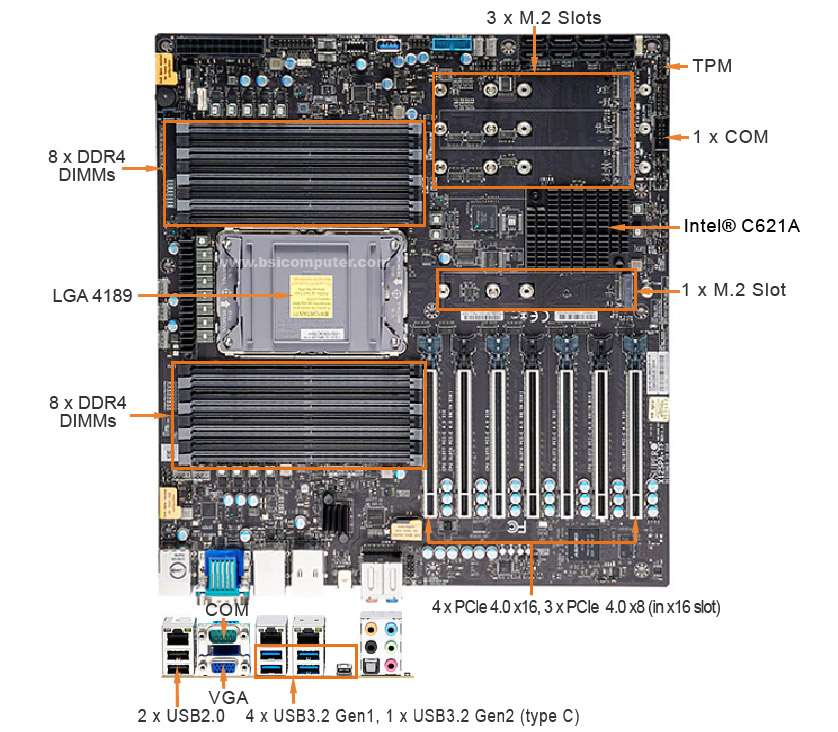

- Supermicro X12SPA-TF Motherboard
- 3rd Gen Intel® Xeon® Scalable Processor
Intel® Xeon® W-3300 Processor - Intel® C621A Chipset
- 16GB DDR4 ECC Registered Memory
- 500GB M.2 NVME Solid State Drive
- 4x PCI-E 4.0 x16, 3x PCI-E 4.0 x8 (in x16)
- 4x PCI-E 4.0 x4 M.2 Slots
- Built-in Video and Audio
- Built-in 2x 10GbE LAN, 1x GbE LAN, 1x IPMI LAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
Configured: |
$2,609.00 |

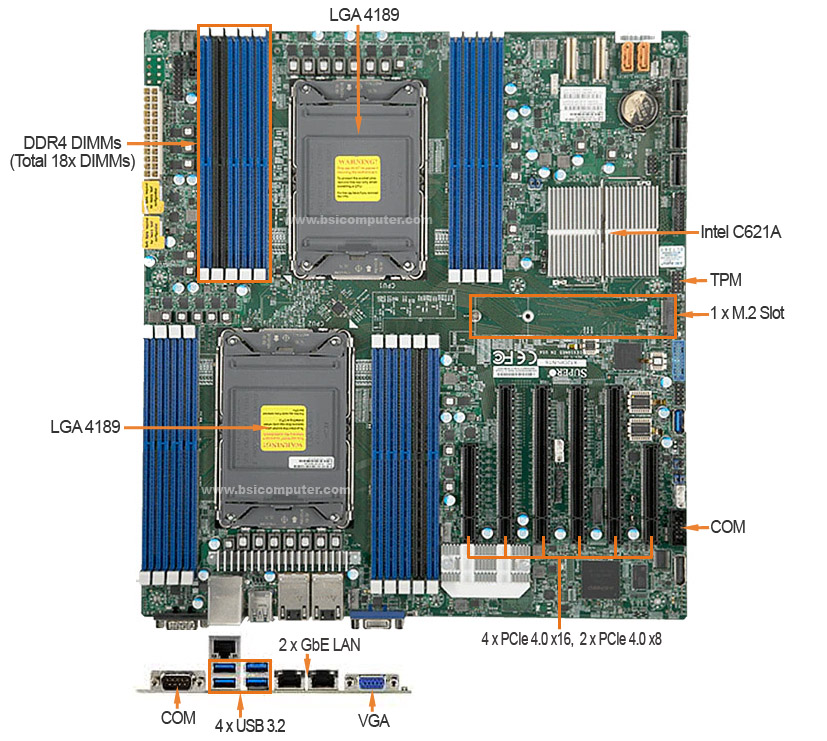

- Supermicro X12DPi-N6 Motherboard
- 2x 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 32GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- Built-in Video
- Built-in Dual Gigabit LAN & IPMI LAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
- Ships in 5 - 7 Business Days
Configured: |
$3,525.00 |
- Supermicro X11SPA-TF Motherboard
- Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
- Supermicro X11SPA-T Motherboard w/ Intel Xeon W-3200 Series Processor (Optional)
- Intel® C621 Chipset
- 16GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 4 x PCIe 3.0 x16, 3 x PCIe 3.0 x8 (in x16 Slot)
- Built-in Video
- Built-in Dual Gigabit LAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
- Ships in 5 - 7 Business Days
Configured: |
$2,039.00 |
- Supermicro X11DPi-N Motherboard
- 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
- Intel® C621 Chipset
- 32GB DDR4 ECC Reg Memory
- 500GB M.2 NVME Solid State Drive
- Built-in Video
- Built-in Dual Gigabit LAN & IPMI LAN
- 500W 2U ATX PFC 110/220 VAC Power Supply
- Ships in 5 - 7 Business Days
Configured: |
$2,435.00 |
