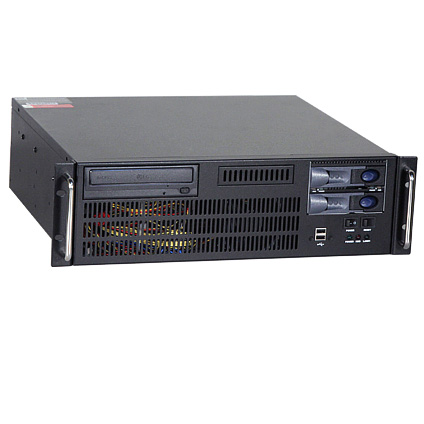

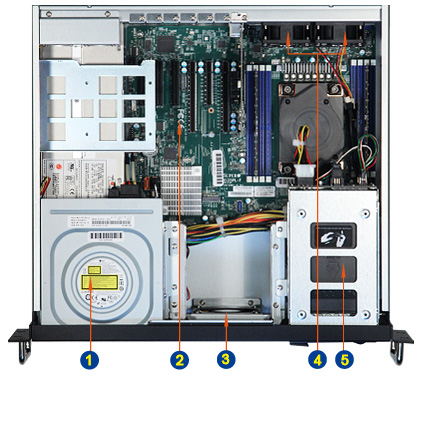

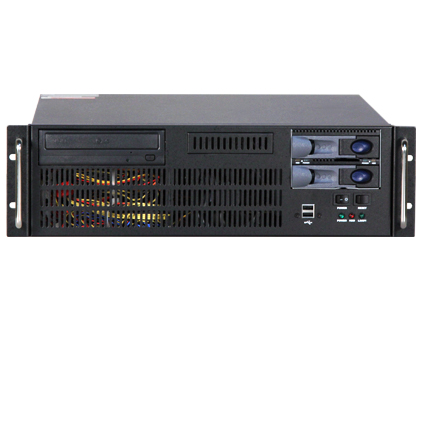

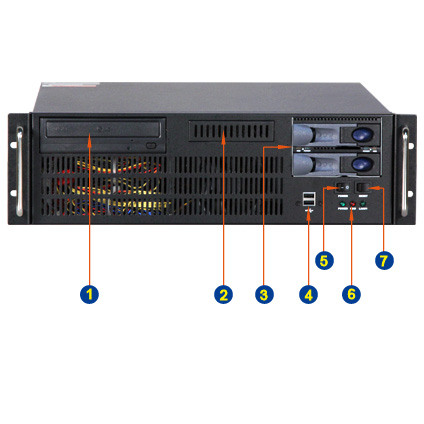

RMS353 3U Rackmount Computer
Features:
- 3U Rack Mount Industrial Computer
- 2 Drive Bays (1 x 5.25" External Drive Bay, 1 x 3.5" External Drive Bay)
- 2 x 3.5" SATA Hot-Swappable Trays
- Support ATX Motherboard
- 15.7" Deep Rack Mount PC
The RMS353 rack mount industrial computer has a solid, robust design that will meet the most rigorous and demanding requirements.
RMS353 rack mount industrial computer supports industry standard ATX form factor system boards. Chipset integrated features include PCI Express x16 video controller, AC'97 or Intel high-definition audio, Gigabit Ethernet LAN, parallel or serial ATA interface, as well as optional RAID controller. And if more add-on functions are required, there are seven open slots ready to accept expansion cards, and a 1U PS/2 active PFC ATX up to 500 watts power supply.
Also the RMS353 rack mount pc is designed for applications that require powerful rugged full-featured PC's to fit in space-confined areas.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations

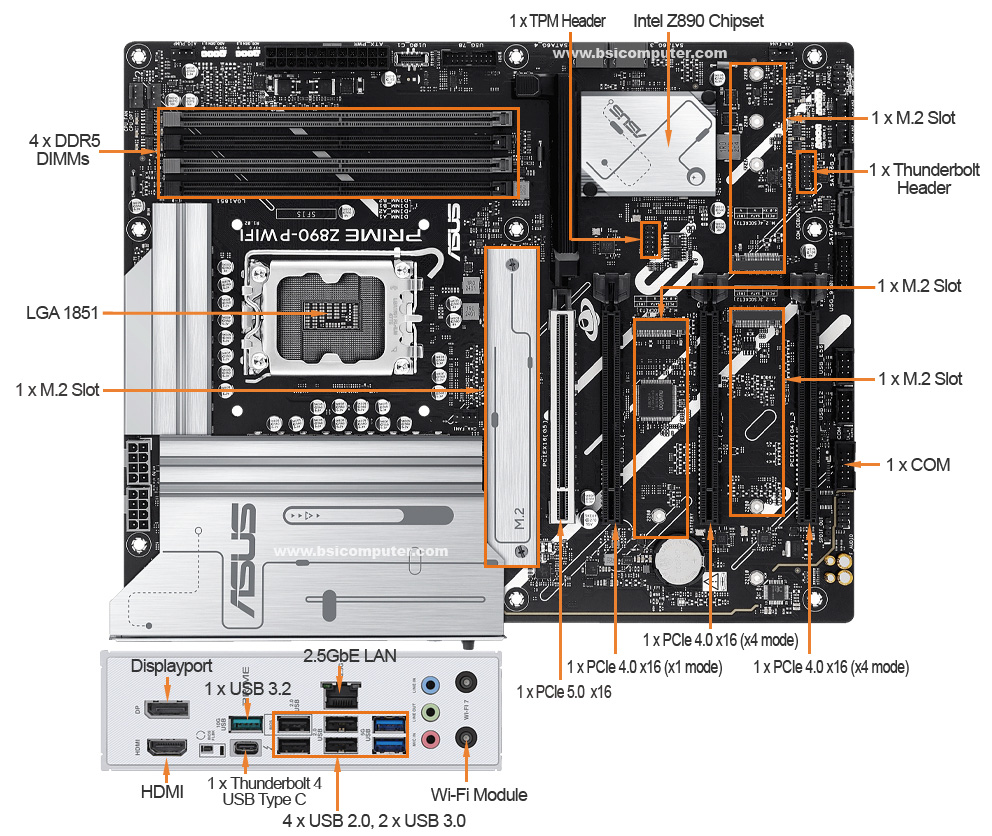

3U Rackmount Computer with ASUS PRIME Z890-P WIFI Motherboard
- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN

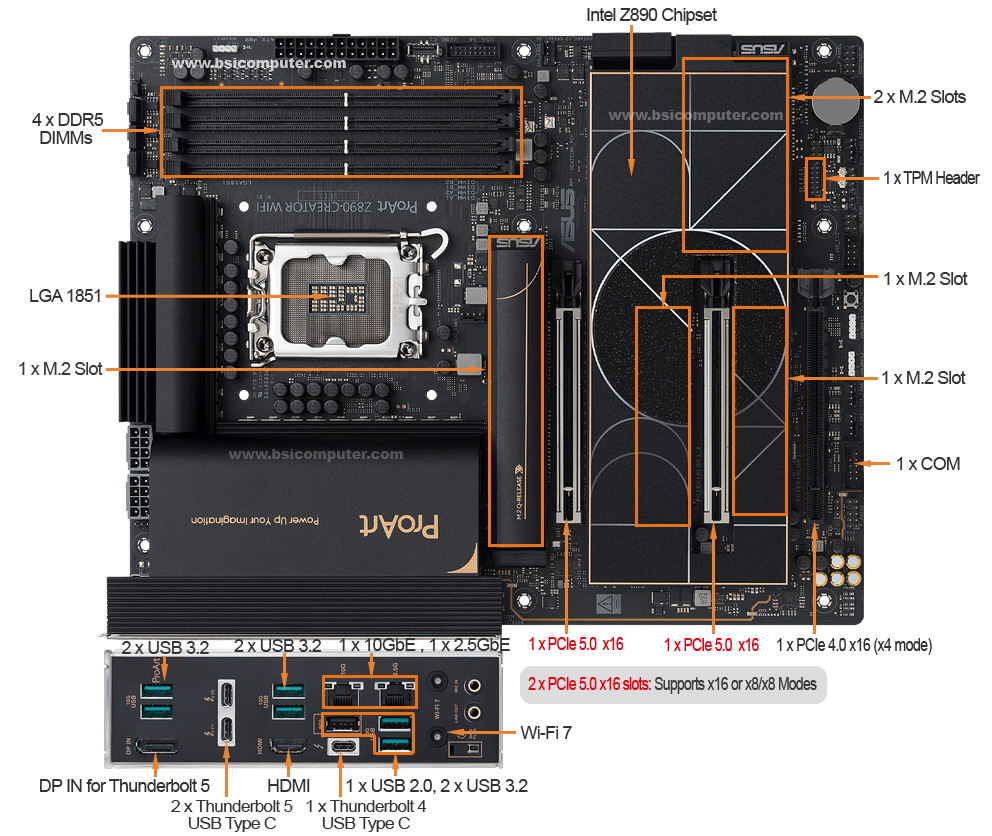

3U Rackmount Computer with ASUS ProArt Z890-CREATOR WIFI Motherboard
- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN

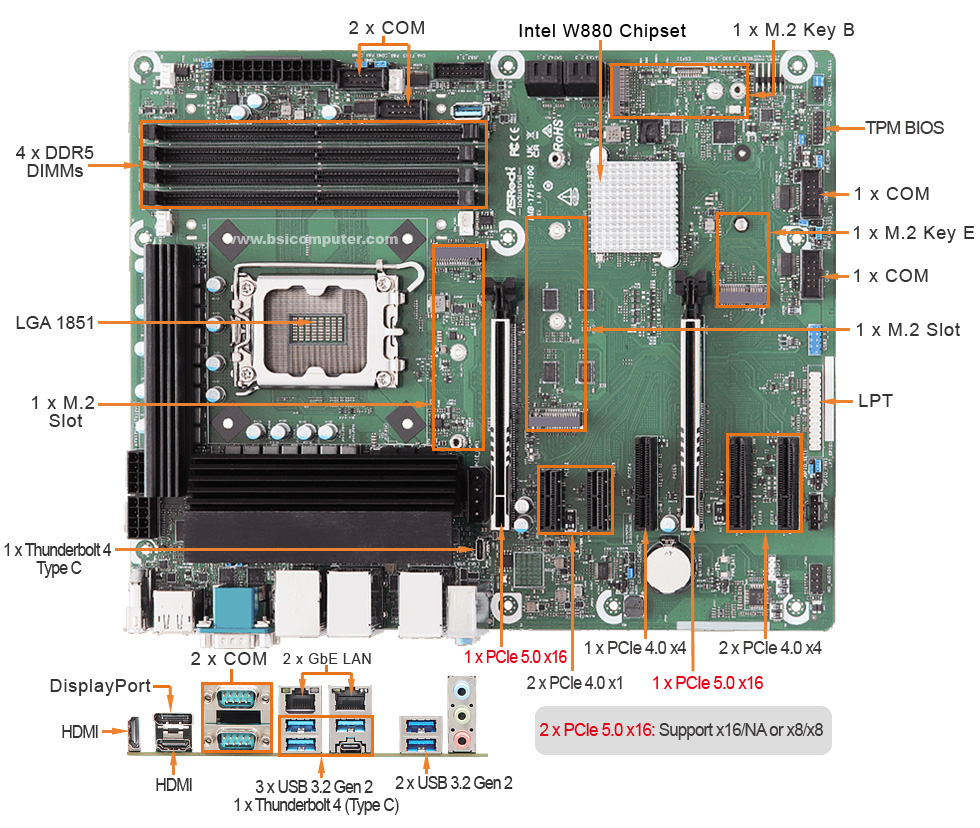

3U Rackmount Computer with ASRock IMB-X1715 Motherboard
- ASRock IMB-X1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN (ASRock IMB-X1715)
- Built-in 2 x GbE LAN, 1 x 10G LAN (ASRock IMB-X1715-10G, Optional)

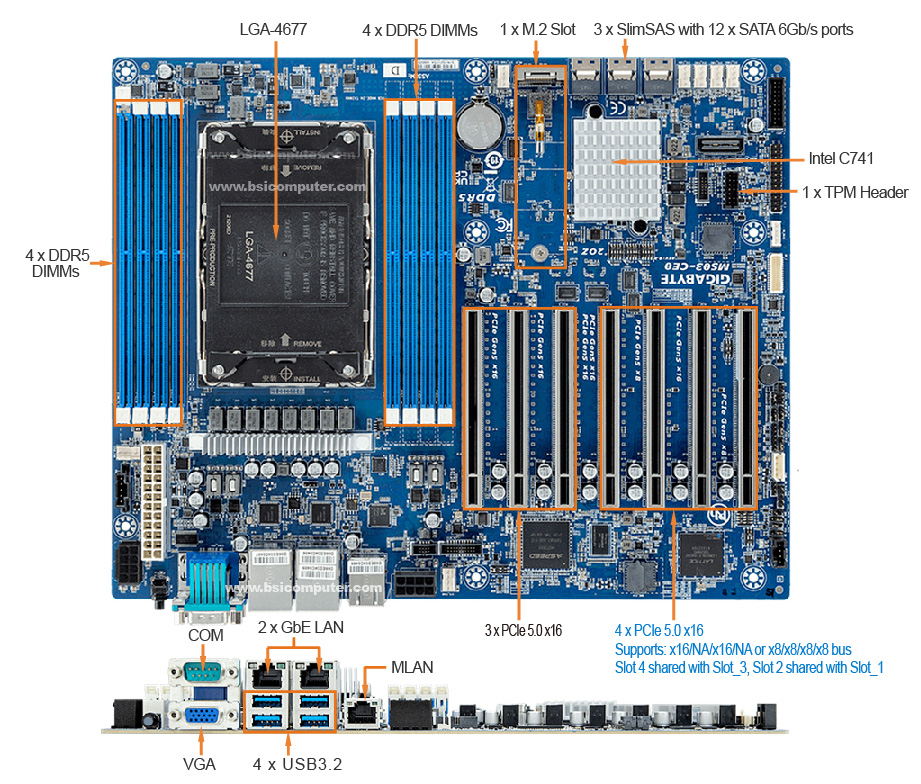

3U Rackmount Computer With Gigabyte MS03-CE0 Motherboard
- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN

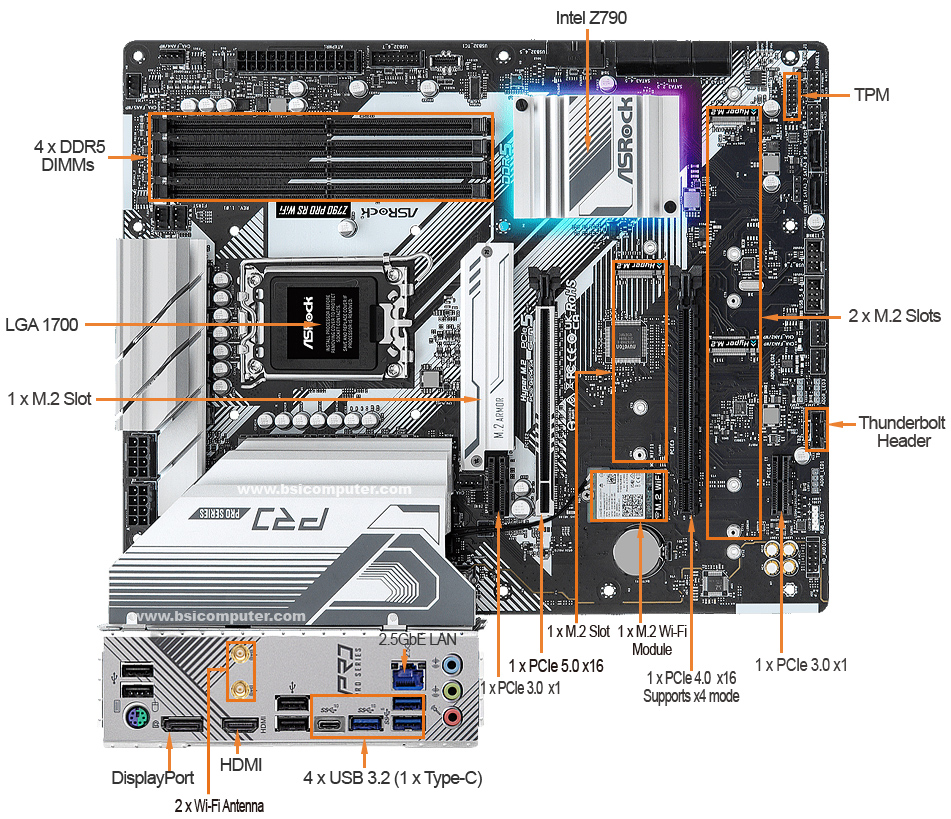

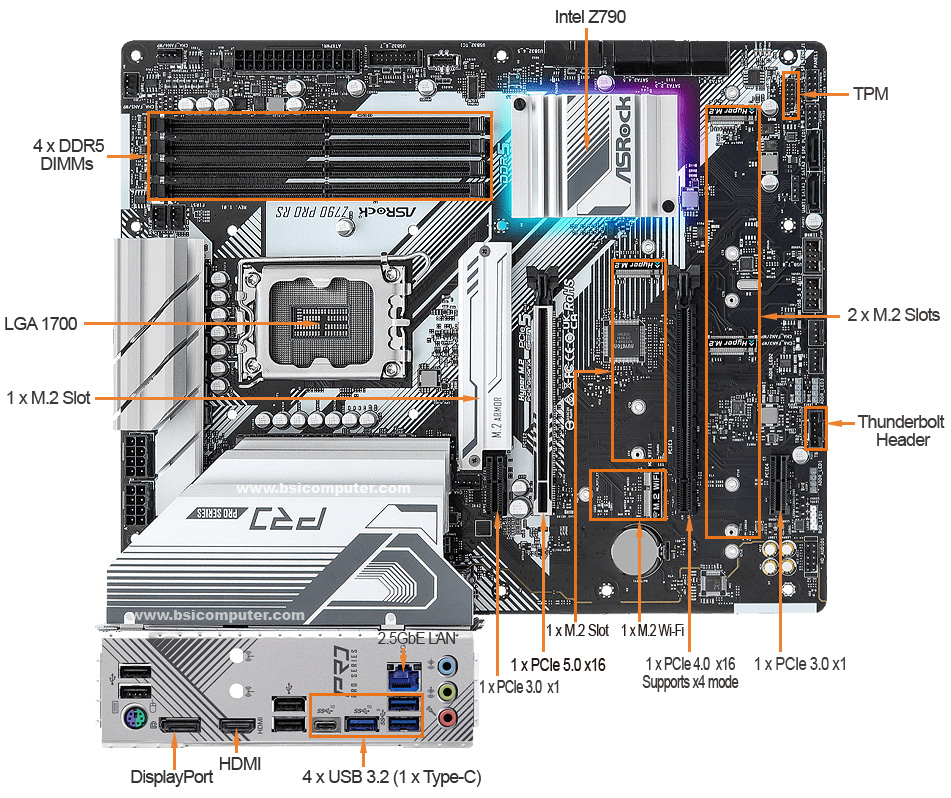

3U Rackmount Computer with ASRock Z790 PRO RS Motherboard
- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN

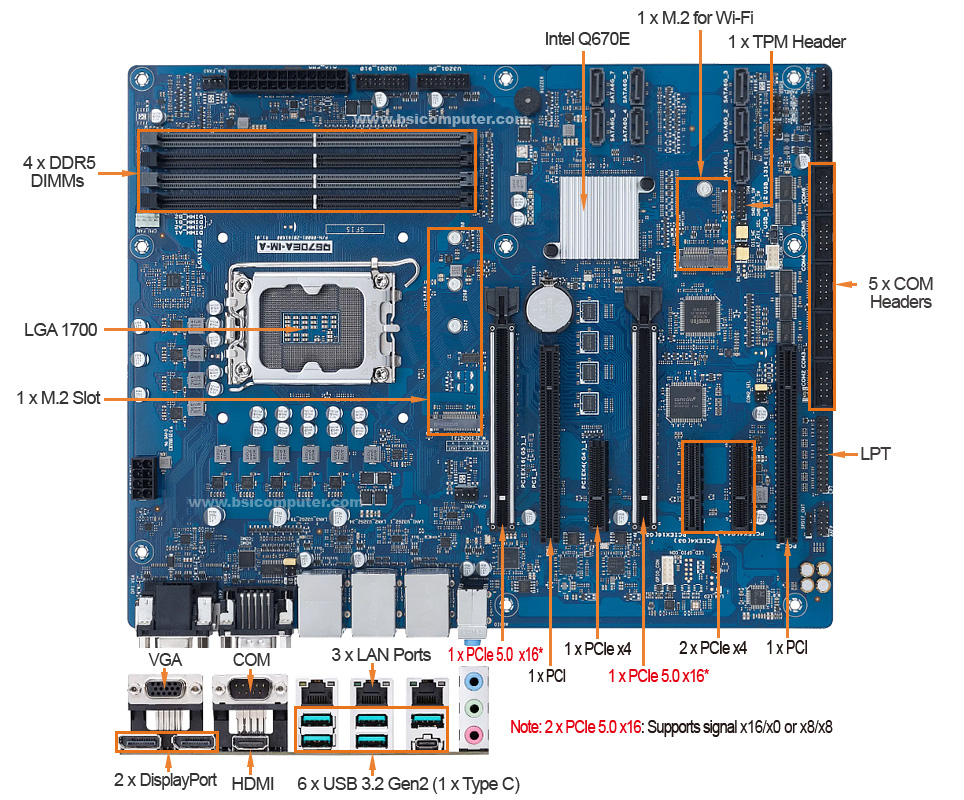

3U Rackmount Computer with ASUS Q670EA-IM-A ATX Motherboard
- ASUS Q670EA-IM-A ATX Motherboard
- Long-Life Lifecycle Through Q1' 2030
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports

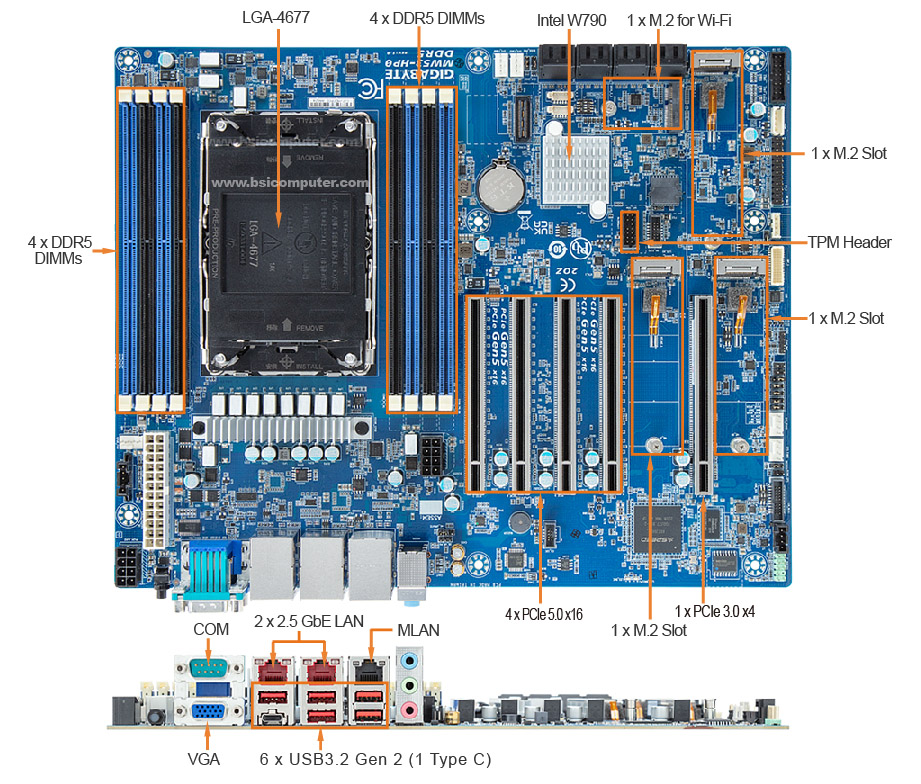

3U Rackmount Computer with GIGABYTE MW53-HP0 ATX Motherboard
- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN

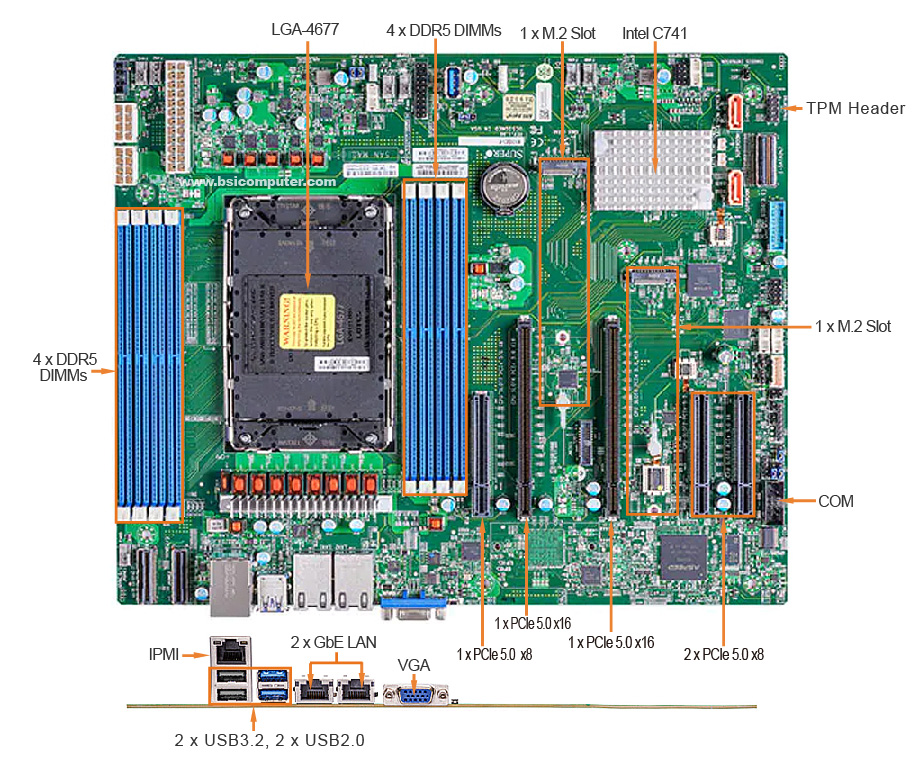

3U Rackmount Computer With Supermicro X13SEI-F Motherboard
- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)

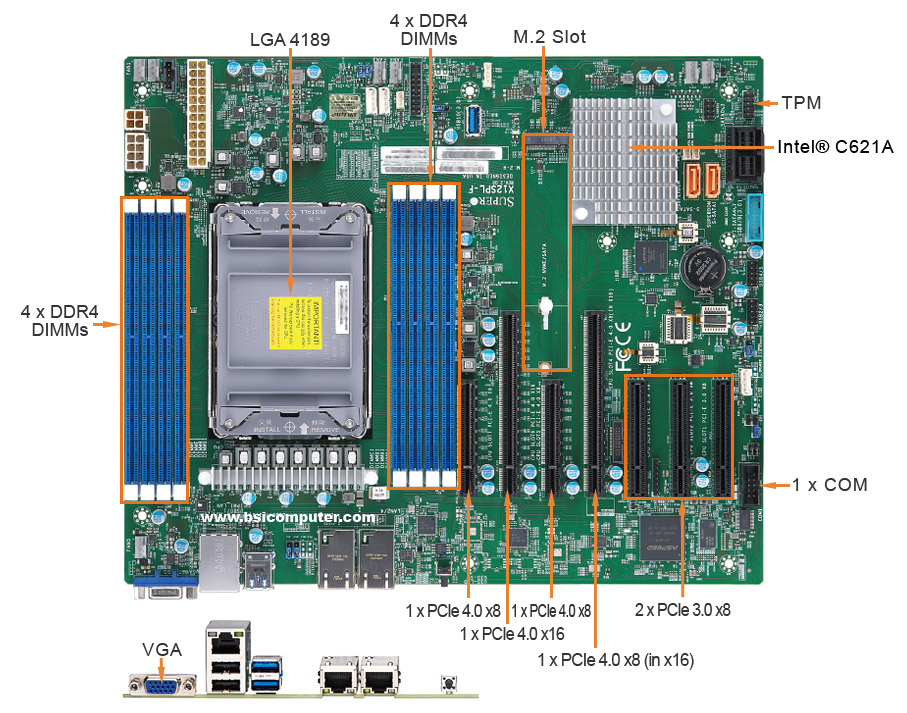

3U Rackmount Computer With Supermicro X12SPL-F Motherboard
- Supermicro X12SPL-F Motherboard
- Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
- Ships in 5 - 7 Business Days

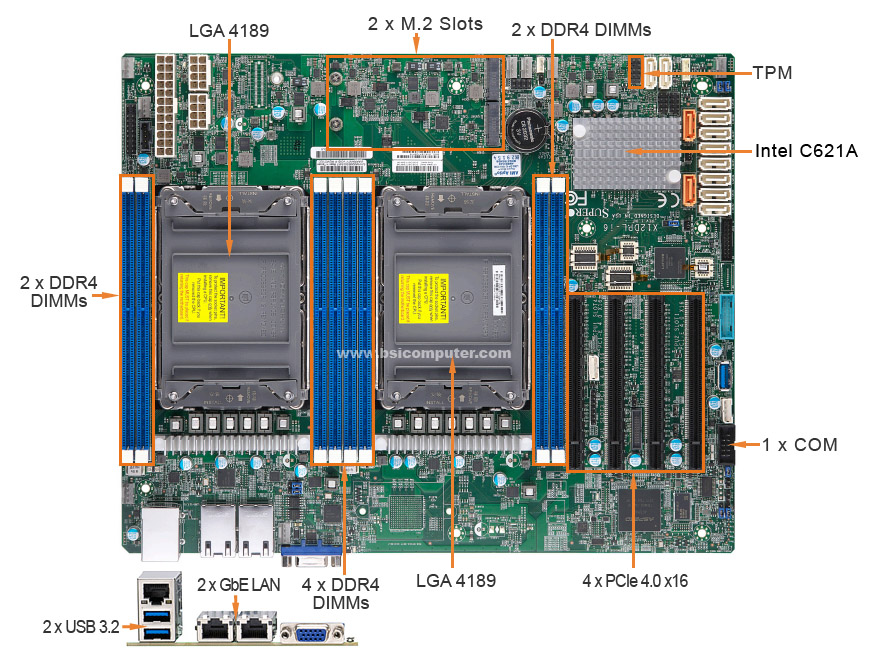

3U Rackmount Computer With Supermicro X12DPL-i6 Motherboard
- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6) - Ships in 5 - 7 Business Days

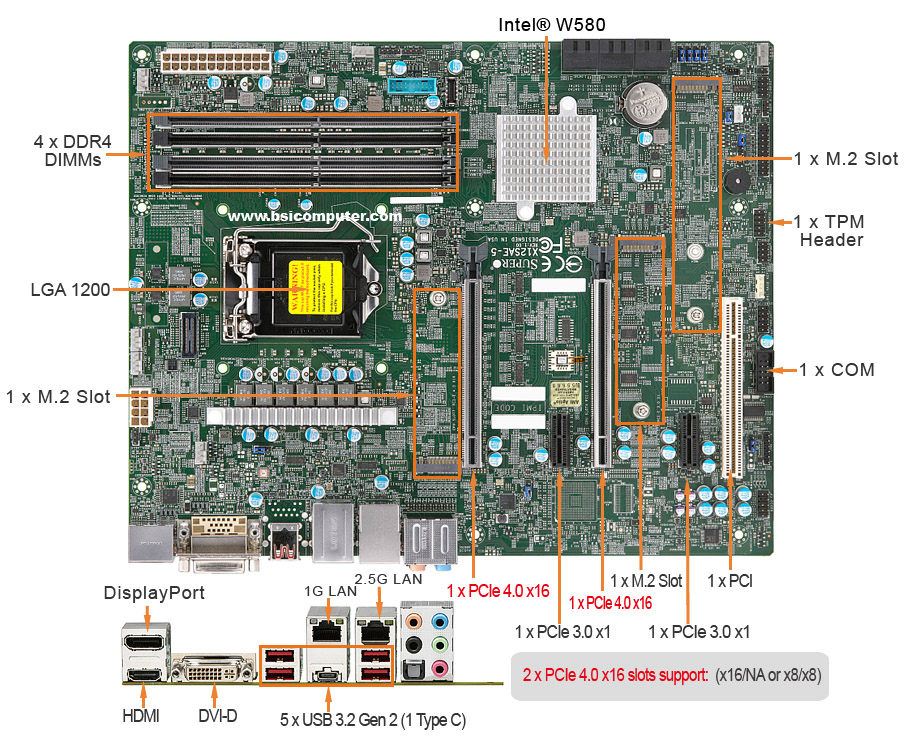

3U Rack Mount Computer With Supermicro X12SAE-5 Motherboard
- Supermicro X12SAE-5 Motherboard
- Intel Core i5-11400 Processor (12M Cache, 2.60 GHz)
Up to Intel Core i9 Processor (Optional)
Intel Xeon W-1300 Series Processor (Optional) - Intel W580 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
- Ships in 5 - 7 Business Days

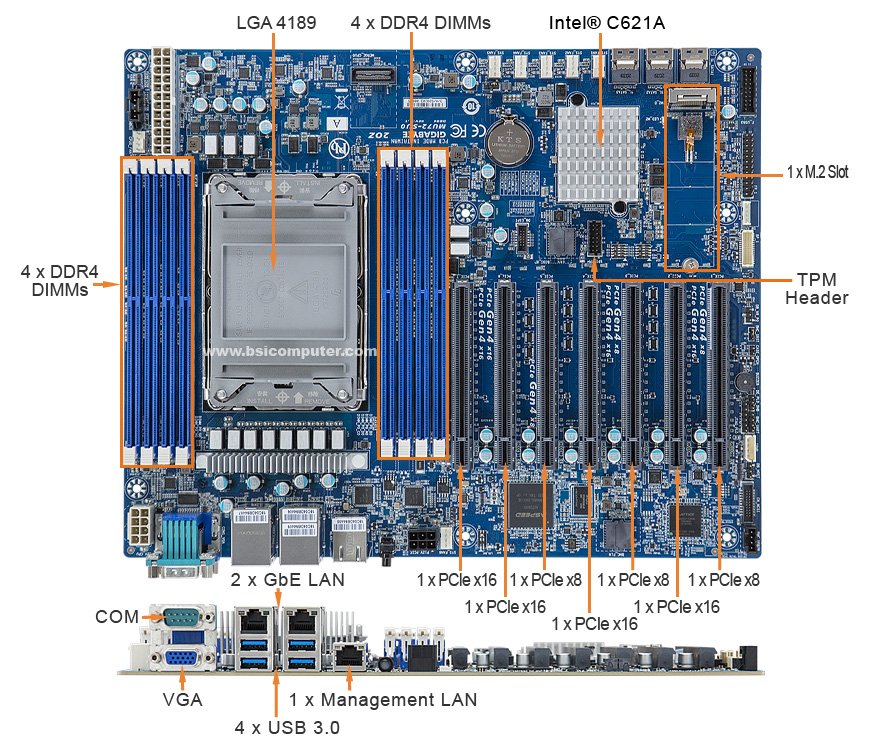

3U Rackmount Computer With Gigabyte MU72-SU0 Motherboard
- Gigabyte MU72-SU0 Motherboard
- 3rd Generation Intel Xeon Scalable Processors
- Intel Xeon W-3300 Processor
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4 x PCIe 4.0 x16, 3 x PCIe 4.0 x8 (in x16)
- Built-in 2 x Gigabit LAN, 1 x Management LAN

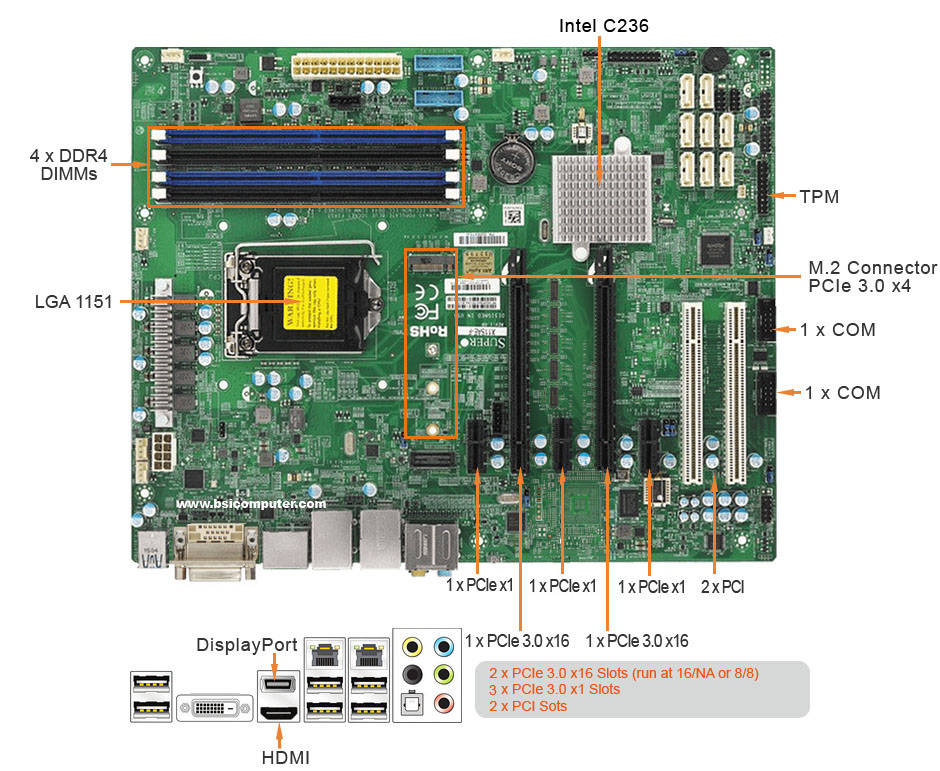

3U Rackmount Computer with Supermicro X11SAE Motherboard
- Supermicro X11SAE Motherboard
- Intel Celeron Processor G3900 (2M Cache, 2.80 GHz)
- Up to Intel Xeon processor E3-1200 v6 Series Processor
- Intel C236 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN
- Ships in 5 - 7 Business Days

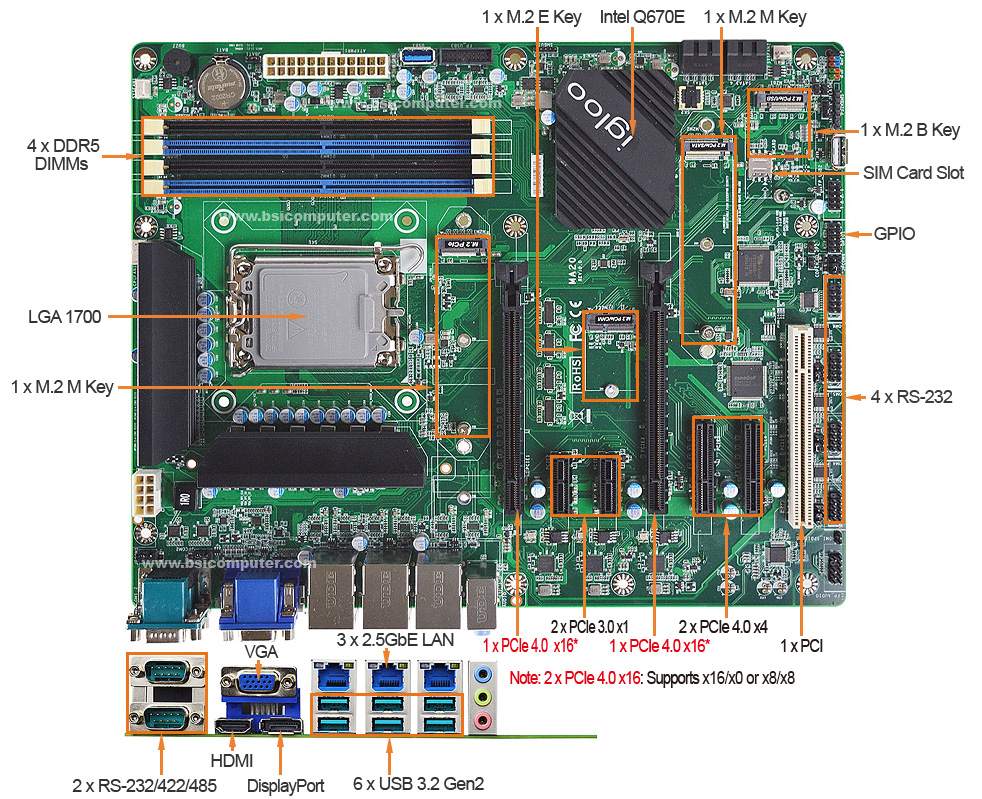

3U Rackmount Computer with IMB-Q670EJT2 Motherboard
- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN

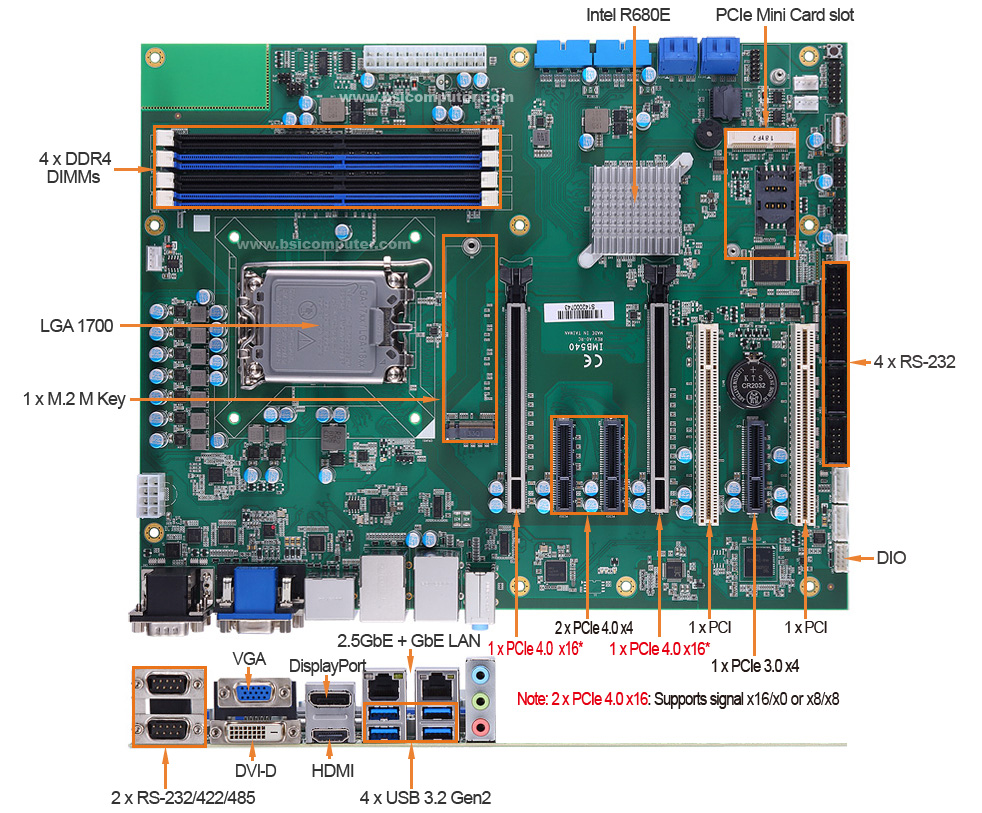

3U Rackmount Computer with IMB-R680EA Motherboard
- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN

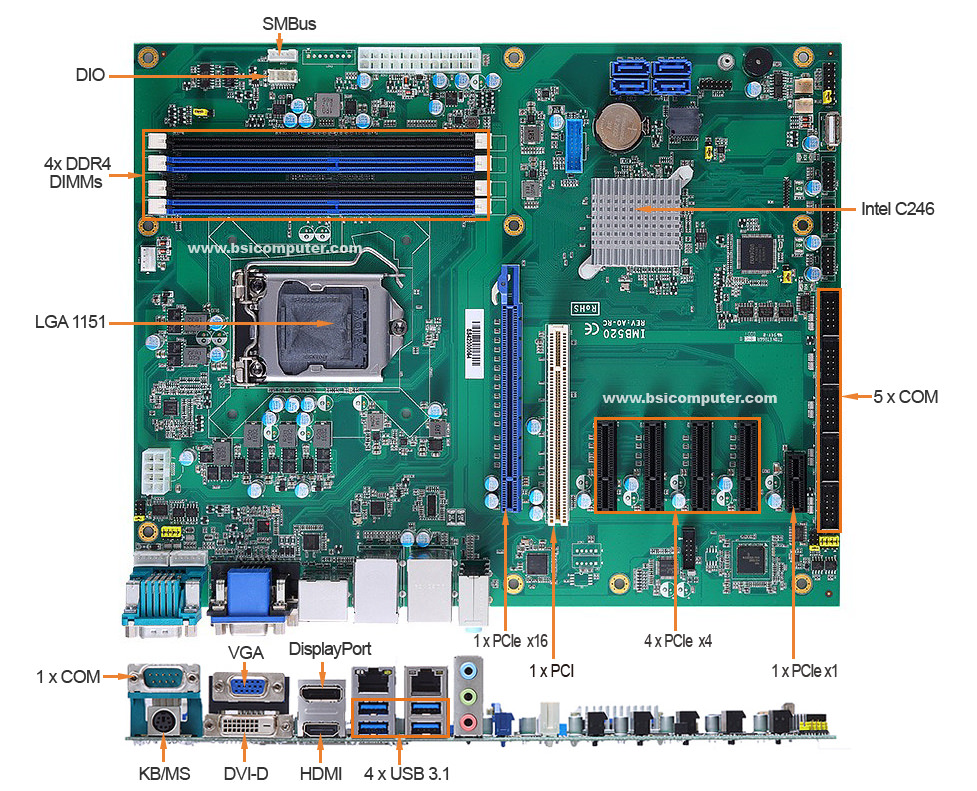

3U Rackmount Computer with IMB-C246A Motherboard
- IMB-C246A Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- 7200RPM SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN

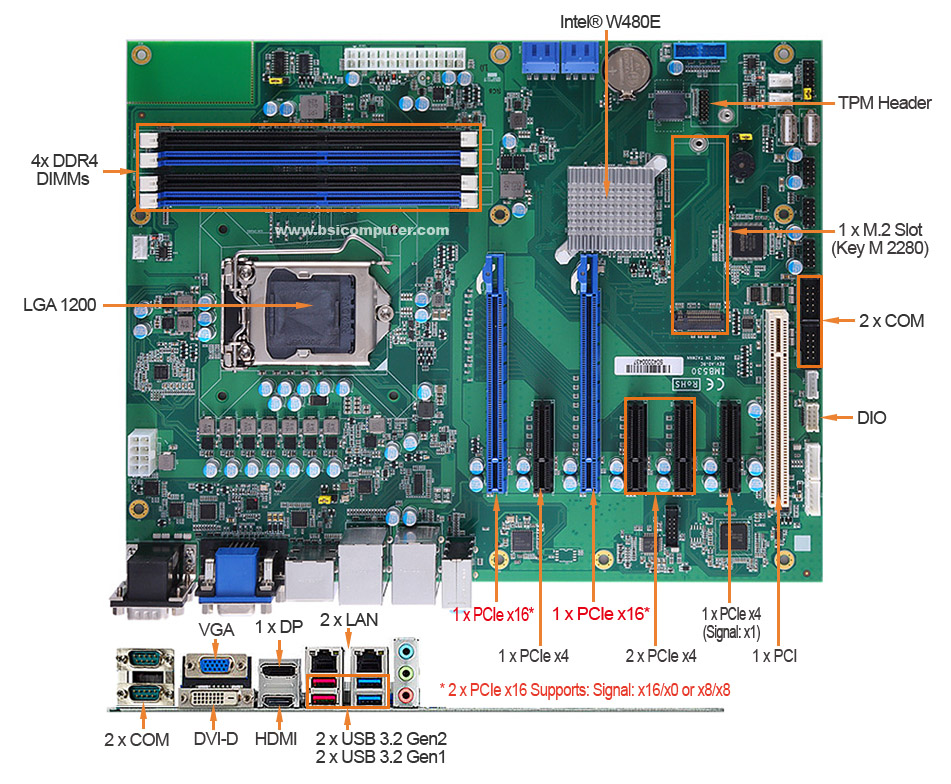

3U Rackmount Computer with IMB-W480EA Motherboard
- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor and Intel Xeon W-1200 Series Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN

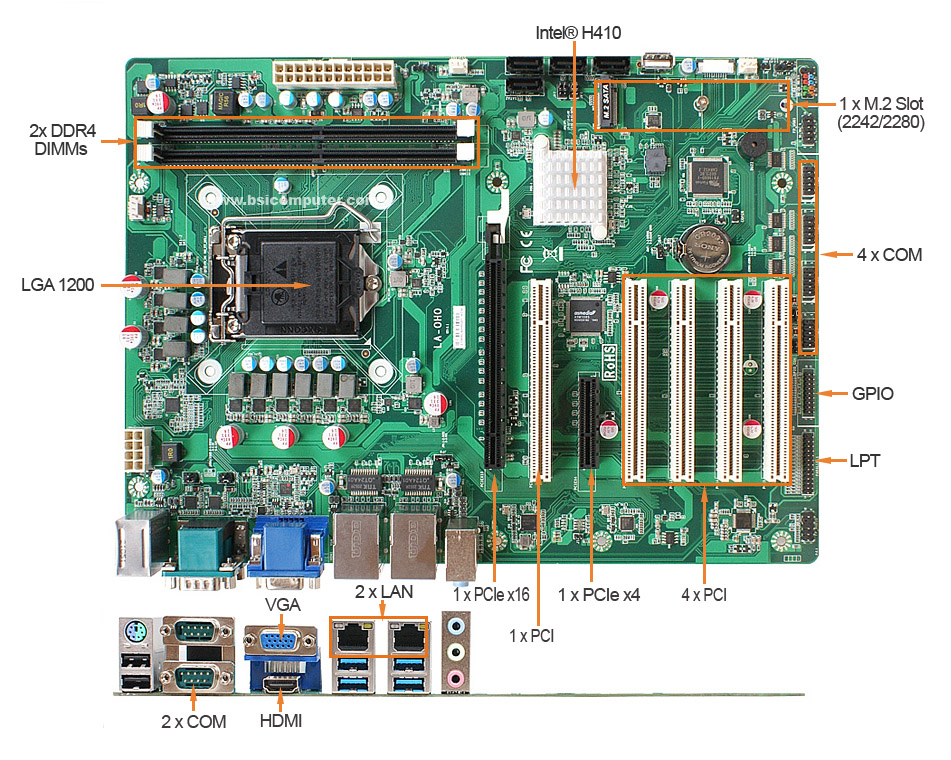

3U Rackmount Computer with IMB-H410JT2 Motherboard
- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel Processor
- Intel H410 Chipset
- DDR4 Memory
- M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN

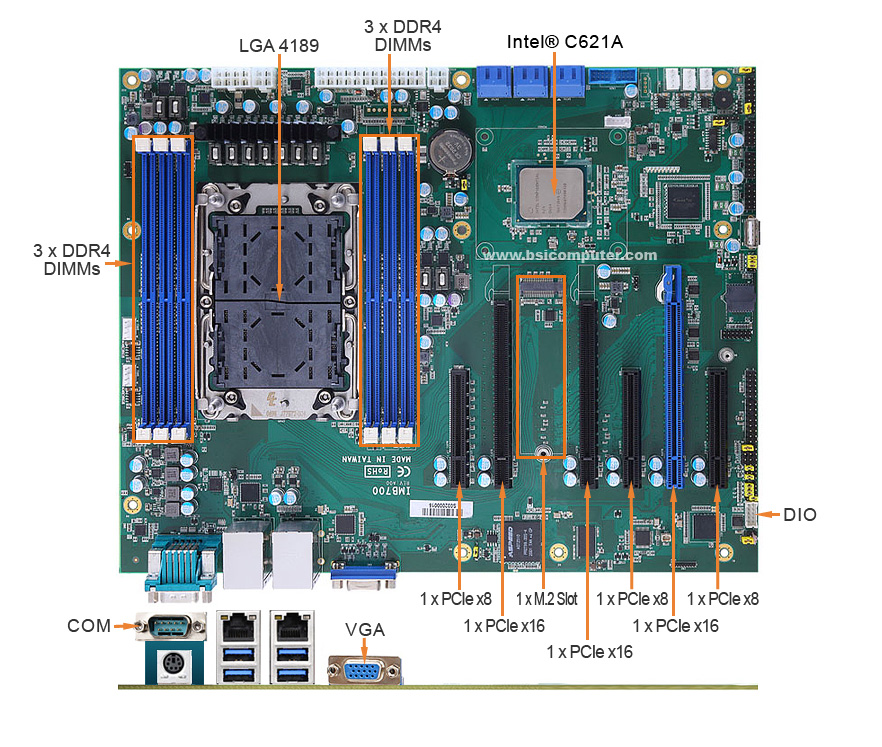

3U Rackmount Computer with IMB-C621AA Motherboard
- IMB-C621AA Industrial Motherboard
- 3 to 5 Years Life Time
- 3rd Gen Intel Xeon Scalable Processors
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN

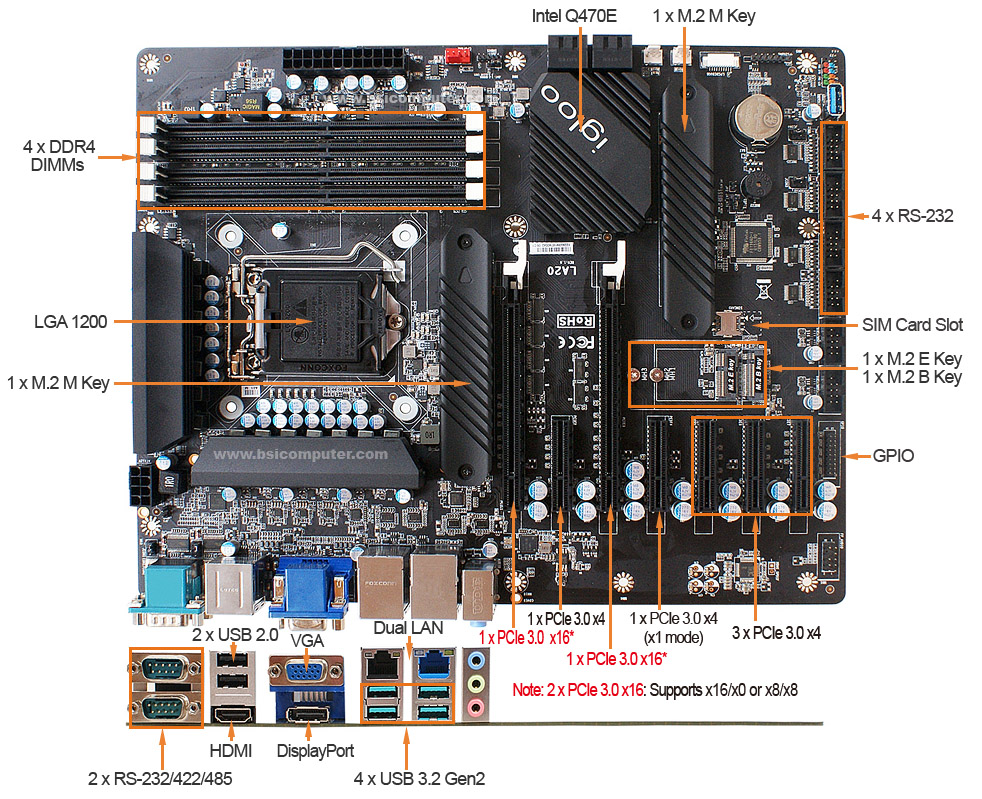

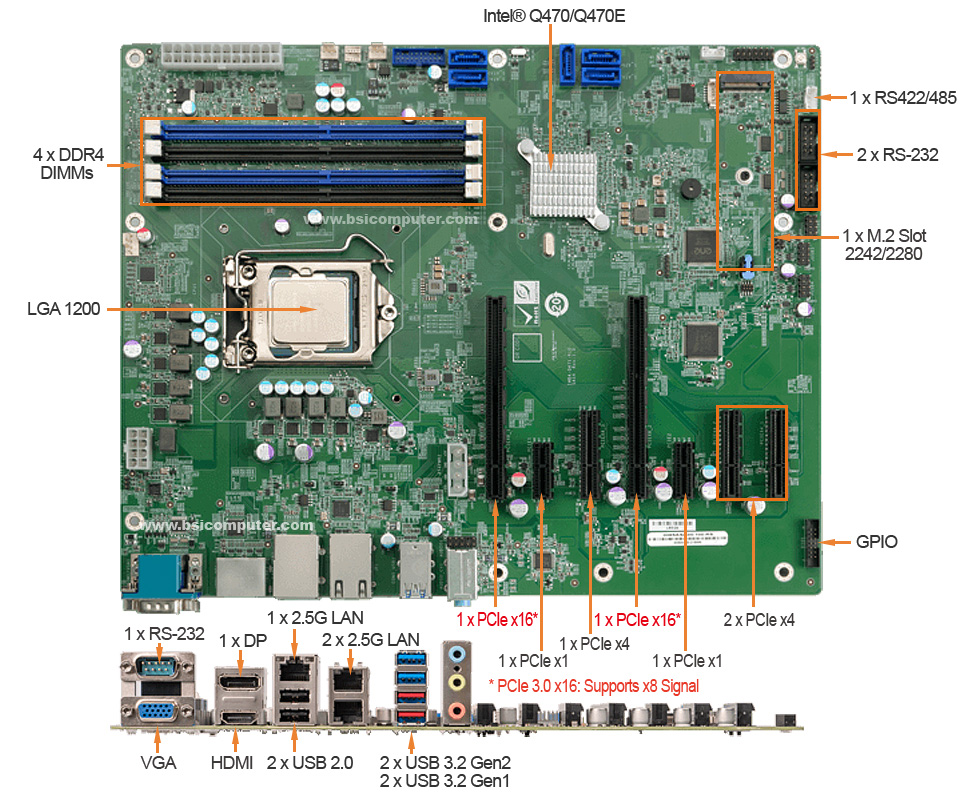

3U Rackmount Computer with IMB-Q470EJT2 Motherboard
- IMB-Q470EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2035
- 10th/11th Gen Intel Processor
- Intel Q470E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0
- 2 x M.2 M Key, 1 x M.2 E Key, 1 x M.2 B Key
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN

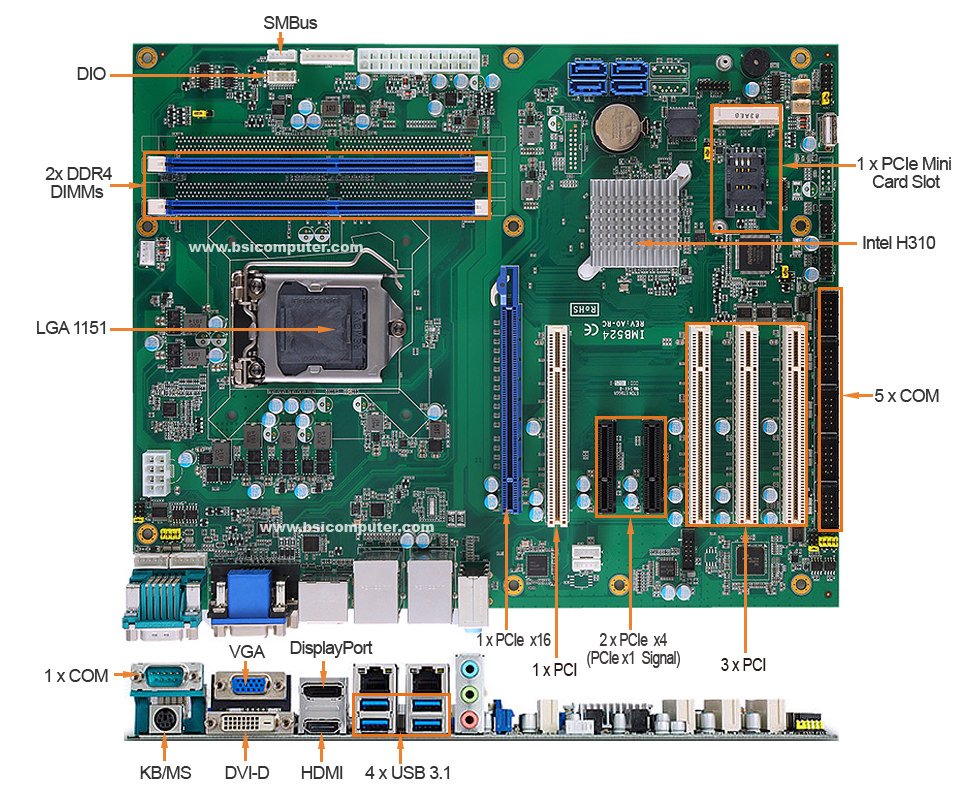

3U Rackmount PC with IMB-H310A Motherboard
- IMB-H310A Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel H310 Chipset
- DDR4 Memory
- 7200RPM SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- 1 x PCIe Mini Card Slot
- Built-in Dual Gigabit LAN

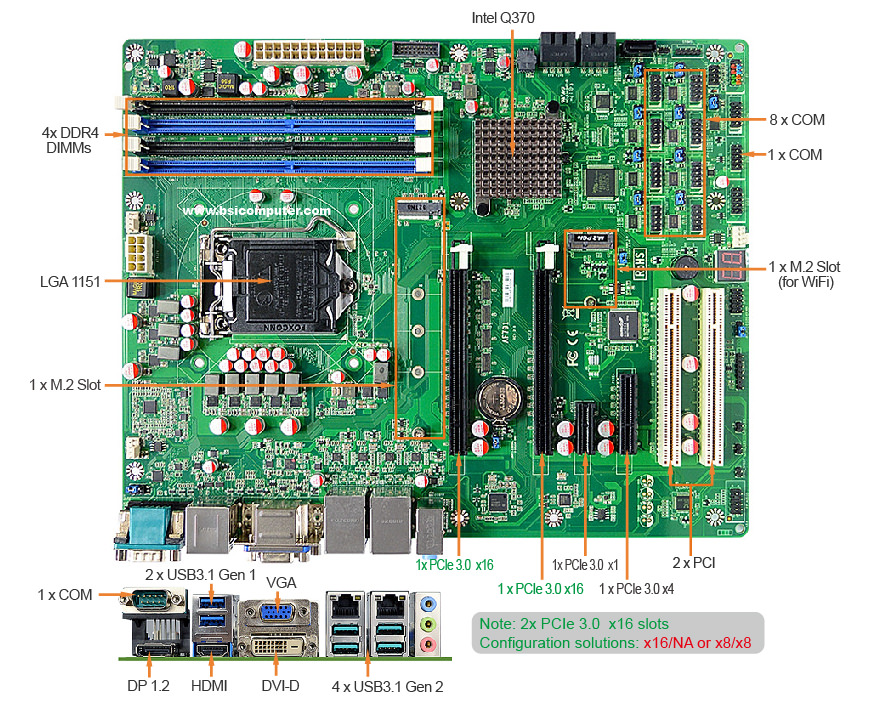

3U Rackmount Computer with IMB-Q370JT2 Motherboard
- IMB-Q370JT2 Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel Q370 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- TPM Onboard
- Built-in Dual Gigabit LAN

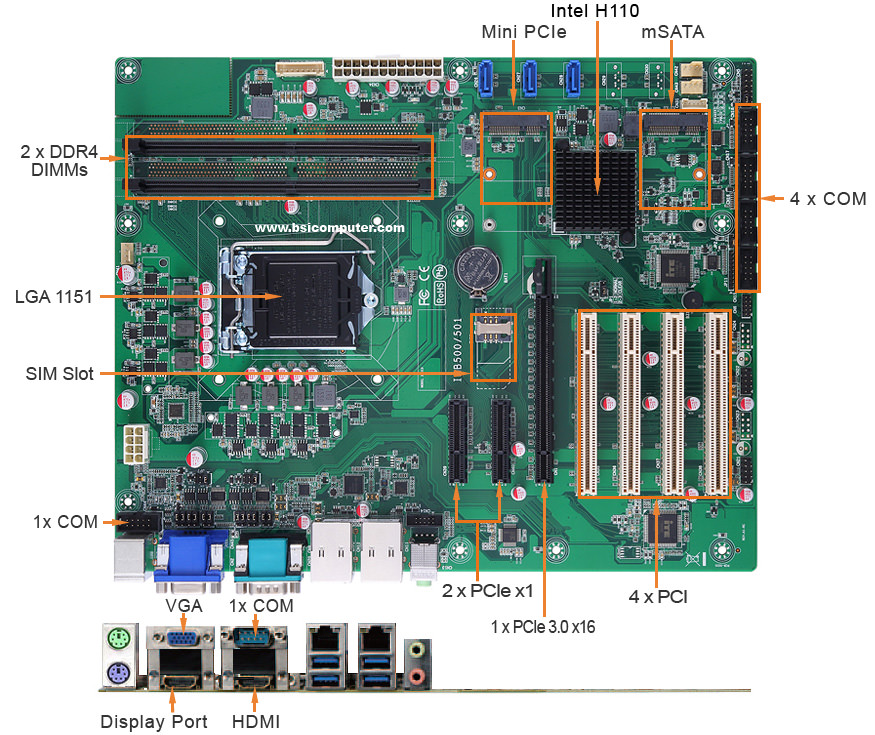

3U Rackmount Computer with IMB-H110A Motherboard
- IMB-H110A Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G3900 (2M Cache, 2.80 GHz)
- Up to Intel Core i7 Processor
- Intel H110 Chipset
- DDR4 Memory
- 7200RPM SATA Hard Drive
- Built-in Dual Gigabit LAN
- Ships in 5 - 7 Business Days

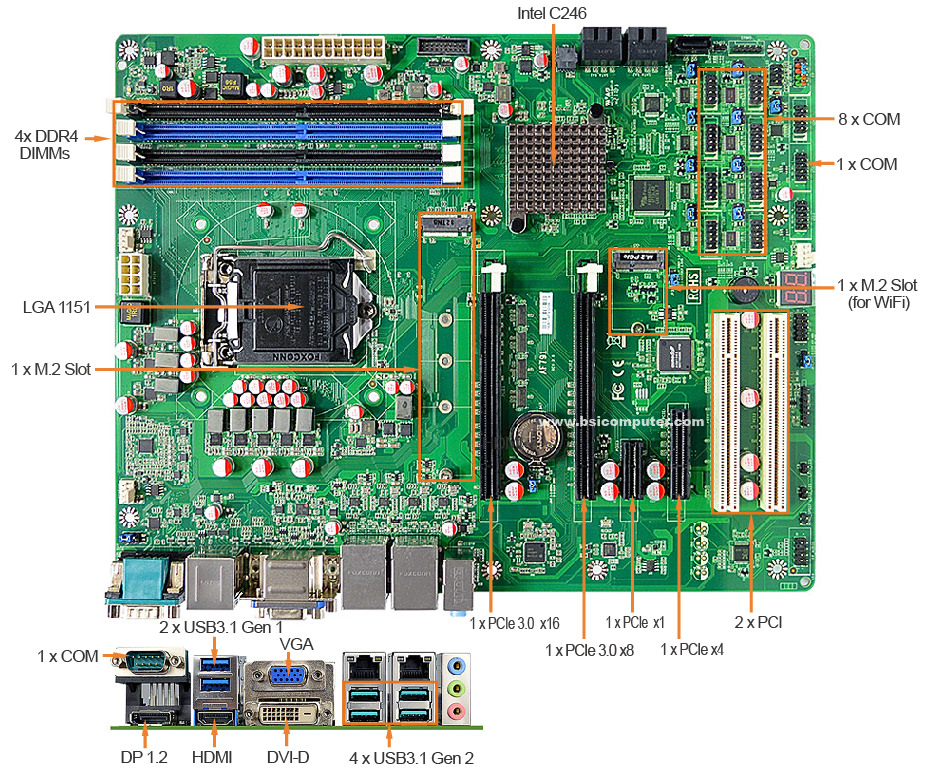

3U Rackmount Computer with IMB-C246JT2 Motherboard
- IMB-C246JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 8 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- TPM Onboard
