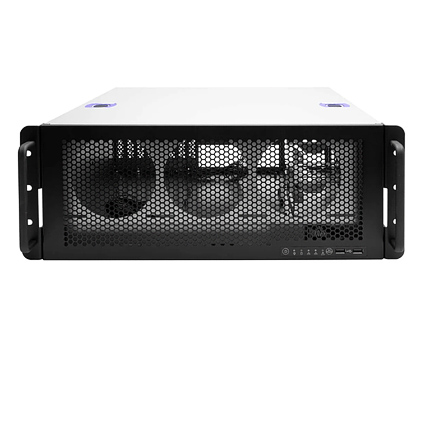

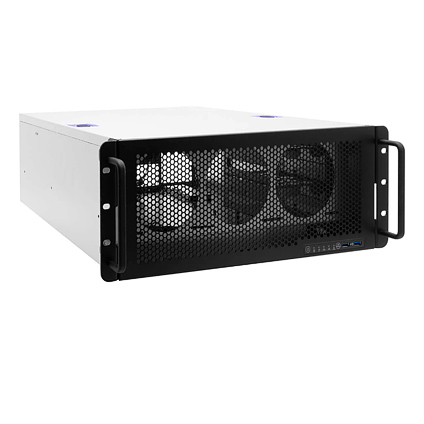

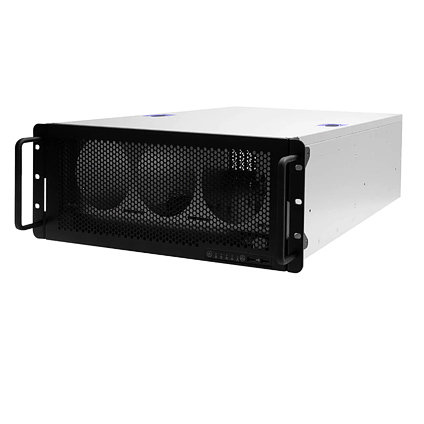

RMS400LC 4U Rackmount Computer
Features:
- 4U Industrial Rack Mount Computer
- Supports Mini-ITX, Micro ATX, Standard ATX, CEB (12" x 10.5")
- 4 x 3.5" Internal Drive Bays
- Supports up to 8x Expansion Slots

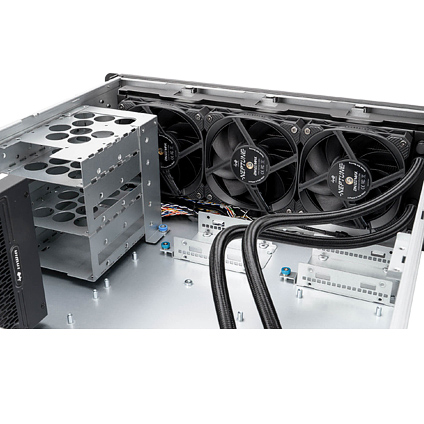

- Water Cooling Radiator: Support Front AIO Installation up 240/360mm Max Thickness 60mm with Fan
- Includes a Card Support Bar to Securely Hold Your GPU Cards in Place
- 1.2 mm SGCC 4U Rackmount Chassis
- 20.67" Depth Rack Mount PC

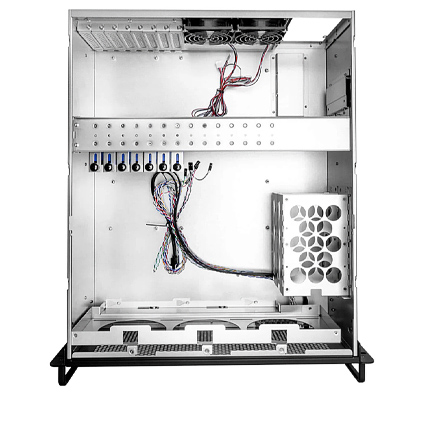

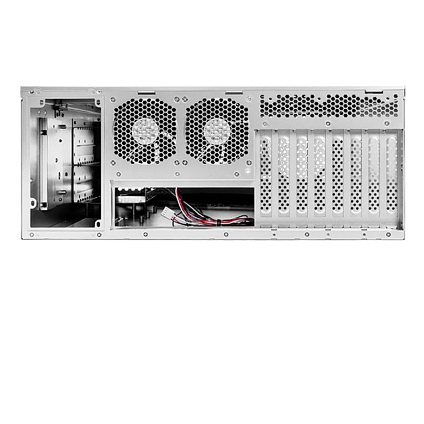

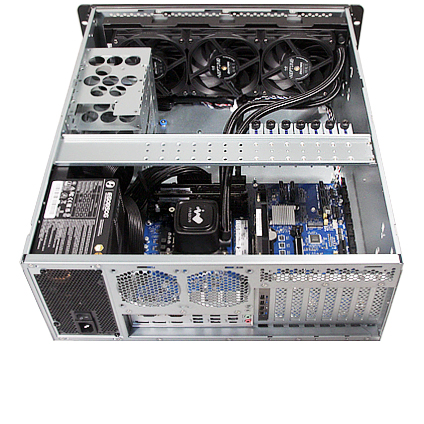

The RMS400LC rack mount chassis is a versatile and robust solution designed to accommodate a range of motherboard form factors, including Mini-ITX, MicroATX, ATX, and Extended-ATX (EATX), with dimensions up to 12 inches by 10.5 inches. It features a detachable front bracket for easy installation of up to 360 mm All-In-One (AIO) cooling radiators, ensuring optimal thermal management. The chassis is equipped with two pre-installed 8025 server-grade PWM fans at the rear to enhance cooling performance. For added stability, it includes a card support bar that securely holds GPU cards in place. The RMS400LC supports ATX Power Supply Units (PSUs) and provides eight full-height PCIe slots, offering ample expansion and connectivity options for various applications.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations

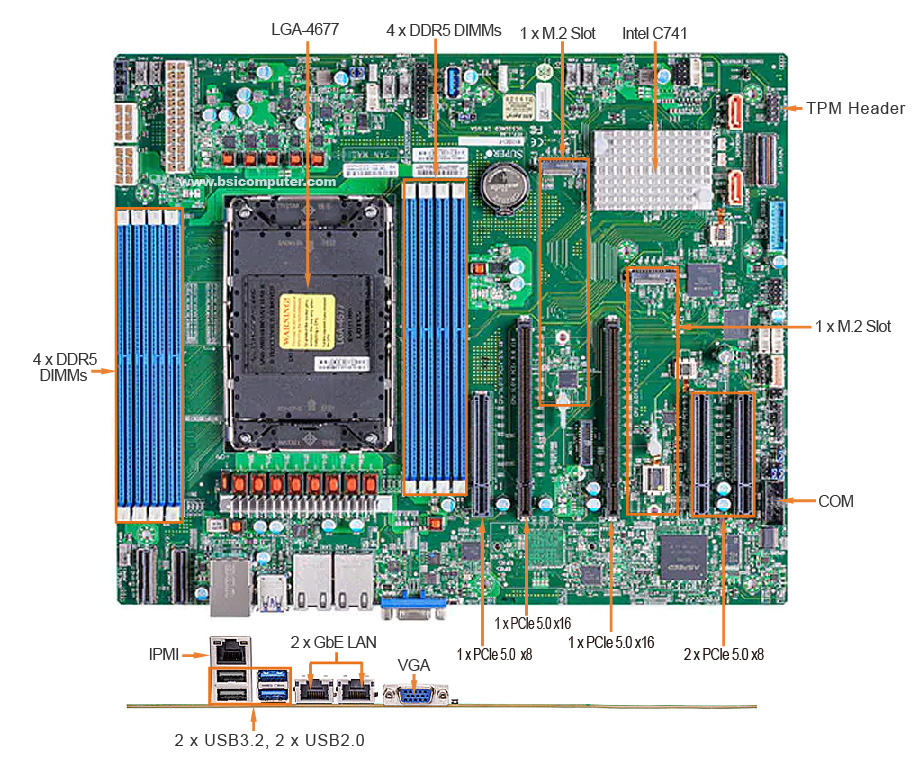

- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional) - Dynatron Liquid Cooler L45-4677

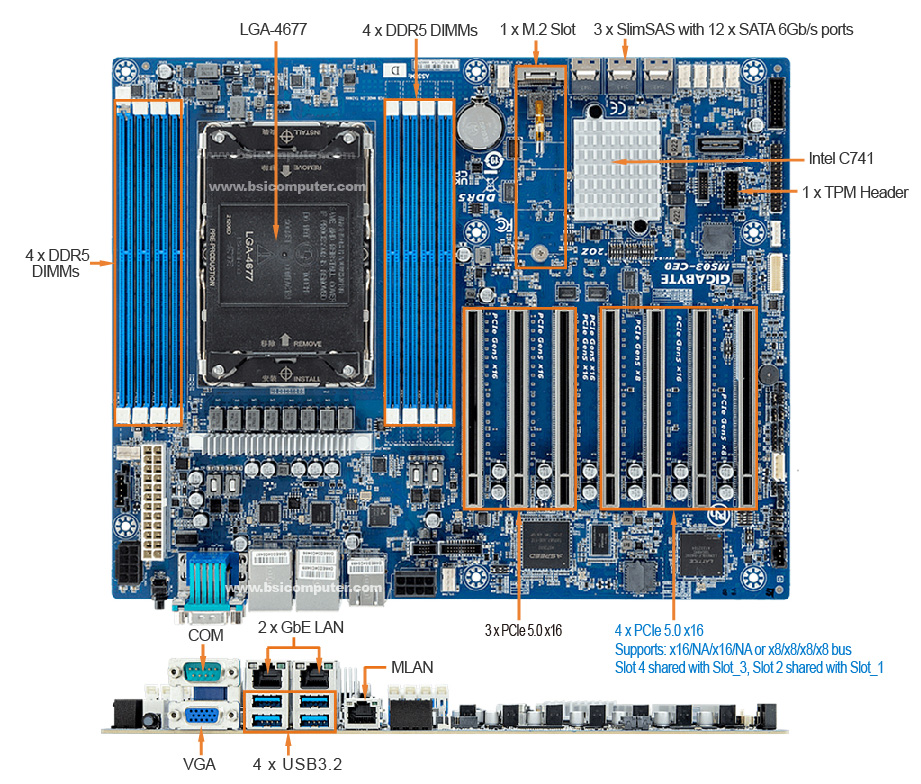

- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
- Dynatron Liquid Cooler L45-4677
