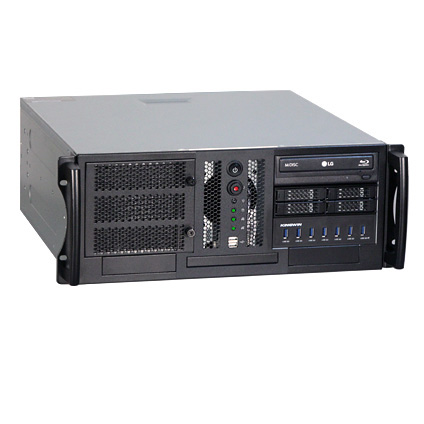

RMS401-AMD 4U Rackmount Computer
Features:
- 4U Industrial Rack Mount Computer
- 6 Drive Bays (3 x 5.25", 3 x 3.5" Drive Bays and 1 x Slim Optical Drive Bay)
- 120mm Front Fan: Optional 2rd 3 x 5.25" Drive Cage for Maximum Configuration Flexibility, 84H342310-003
- Isolated Anti-Vibration Drive Cage
- Optional robust front door with filter for rugged environment
RMS401-ADM is a 4U rackmount computer with shock isolated design, dust-proof filter on compact chassis size, makes it ideal for space constrained industrial applications.
RMS401-AMD is equipped with three 5.25", one 3.5", one slim ODD external drives bays, four 3.5" internal. A card retainer to hold low profile and full height add-on cards. With optional 3X5.25" drive cage and hot-swap removable kit, RMS401-AMD can be a data center with 16 and more SSDs.Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations
4U Rackmount Computer with Supermicro H13SSL-N Motherboard
- Supermicro H13SSL-N Motherboard
- 4th Generation AMD EPYC™ Processors
- 16GB DDR5 ECC Registered Memory
- 250GB M.2 NVME Solid State Drive
- 24x SATA DVD+/-RW Optical Drive
- 2 x M.2 Slots
- 3 x PCIe 5.0 x16, 2 x PCIe 5.0 x8
- 2 x GbE LAN, 1 x IPMI LAN
2 x 10GBase-T LAN (H13SSL-NT, Optional) - TPM Module (Optional)
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
4U Rackmount Computer with ASRock X670E PG Lightning Motherboard
- ASRock X670E PG Lightning ATX Motherboard
- AMD AM5 Socket for Ryzen Processors
- AMD X670 Chipset
- 8GB DDR5 Memory
- 250GB M.2 NVME Solid State Drive
- 24x SATA DVD+/-RW Optical Drive
- 4 x M.2 Slots
- 7 x USB3.2, 1 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in HDMI, DisplayPort and Audio
- Built-in 2.5GbE LAN
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
4U Rackmount Computer with ASRock X570 Phantom Gaming 4 Motherboard
- ASRock X570 Phantom Gaming 4 ATX Motherboard
- AMD Ryzen 5 5500 6-core, 12-threads 3.60 GHz Processor
- AMD X570 Chipset
- 8GB DDR4 Memory
- 250GB M.2 NVME Solid State Drive
- 24x SATA DVD+/-RW Optical Drive
- 2 x M.2 Slots (2230/2242/2260/2280/22110), 1 x M.2 E Key for Wi-Fi
- 1 x Thunderbolt Header
- 1 x TPM Header, 1 x SPI TPM Header
- GeForce 210 1GB DDR3 64Bit PCI Express Video Card VGA/DVI/HDMI
- 8 x USB3.2 Ports
- Built-in Gigabit LAN
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
4U Rackmount Computer with ASUS PRIME X670-P Motherboard
- ASUS PRIME X670-P ATX Motherboard
- AMD AM5 Socket for Ryzen Processors
- AMD X670 Chipset
- 8GB DDR5 Memory
- 250GB M.2 NVME Solid State Drive
- 24x SATA DVD+/-RW Optical Drive
- 3 x M.2 Slots
- 7 x USB3.2, 1 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in HDMI, DisplayPort and Audio
- Built-in 2.5GbE LAN
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
4U Rackmount Computer with ASROCK ROMED8-2T/BCM Motherboard
- ASROCK ROMED8-2T/BCM Motherboard
- AMD EPYC™ 7003
- 16GB DDR4 ECC Registered Memory
- 250GB M.2 NVME Solid State Drive
- 24x SATA DVD+/-RW Optical Drive
- 2 x M.2 Slots
- 2 x 10 GbE LAN, 1 x IPMI LAN
- TPM Module (Optional)
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
- Ships in 5 - 7 Business Days
4U Rackmount Computer with Supermicro H12SSL-C Motherboard
- Supermicro H12SSL-C Motherboard
- AMD EPYC™ 7003
- 32GB DDR4 ECC Registered Memory
- 250GB M.2 NVME Solid State Drive
- 24x SATA DVD+/-RW Optical Drive
- 2 x M.2 Slots
- 5 x PCIe 4.0 x16, 2 x PCIe 4.0 x8
- 2 x GbE LAN, 1 x IPMI LAN
- TPM Module (Optional)
- 500W PS/2 ATX PFC 110/220 VAC Power Supply
- Ships in 5 - 7 Business Days
