RMS4502 4U Rackmount Computer
Features:
- 4U rack mount industrial computer.
- 4 drive bays (3 x 5.25" and 1 x 3.5" drive bays).
- ATX Mother board.
- 20.1" deep rack mount pc.
The RMS4502 is a 19" rack mount industrial computer that meets the EIA RS-310C standard. It's specially designed for applications in harsh industrial environments. An embedded control logic allows software power settings, where vibrations and airborne contamination prohibits use of standard commercial PCs, the chassis is constructed of heavy-gauge steel for ruggedness and corrosion resistance.

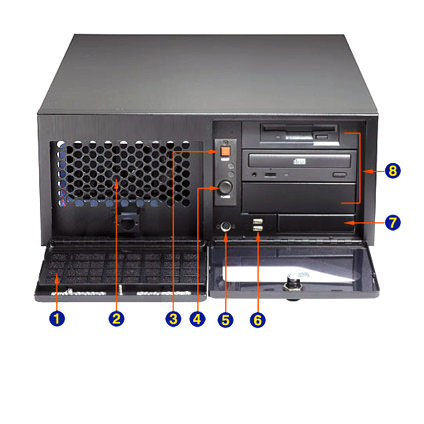

Its front panel is bonded with rubber for dust-proof and drip-proof protection. It comes with a hinged panel for front cooling fan access and a lockable, shielded door that protects and affords easy access to the drives. Two 12cm in-take fans provide ventilation for internal components. A removable filtered prevents airborne dust particles from being drawn into the chassis.
RMS4502 rack mount pc comes with four drive bays, three of which are 5.25" in front accessible and one is 3.5" drive bay. It supports a wide range of industry standard ATX form factor system boards. The compact-size unit comes with plenty of room for your full-length expansion cards, making it a good choice for your stand-alone, data acquisition, controlling and monitoring systems.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations
- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN
- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN

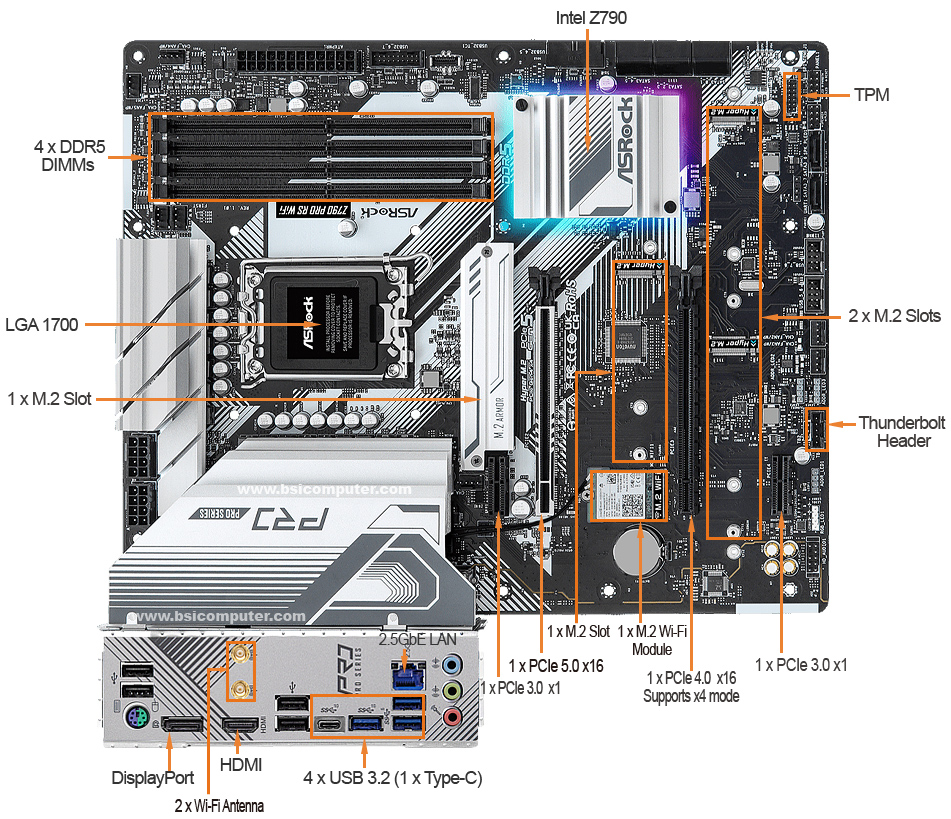

- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
- ASUS Q670EA-IM-A ATX Motherboard
- Long-Life Lifecycle Through Q1' 2030
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports

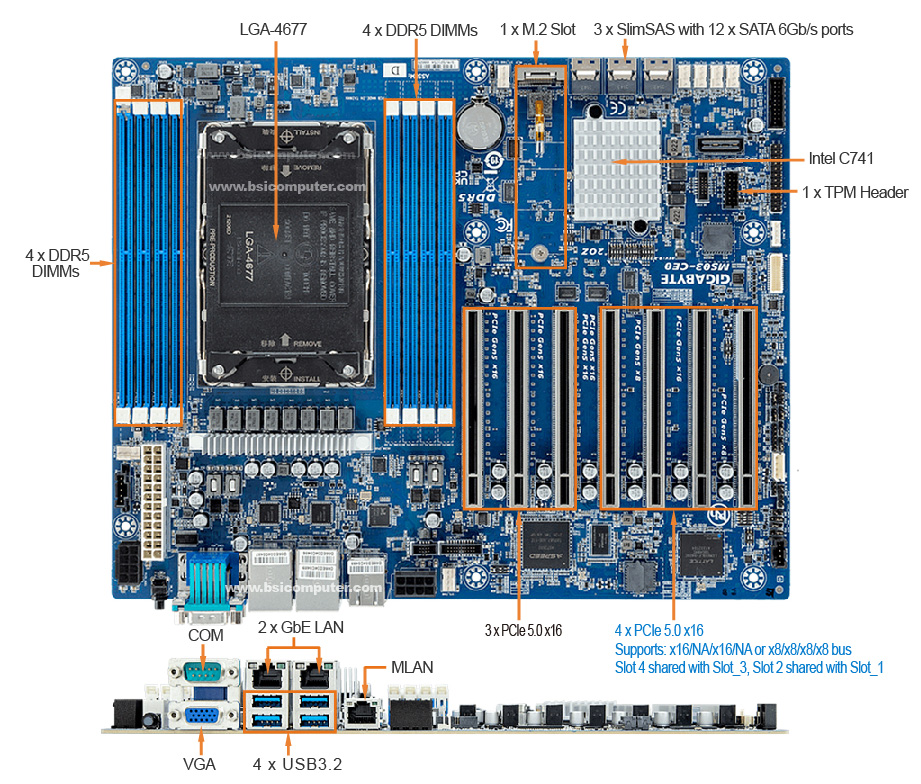

- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
- Supermicro X12SAE-5 Motherboard
- Intel Core i5-11400 Processor (12M Cache, 2.60 GHz)
Up to Intel Core i9 Processor (Optional)
Intel Xeon W-1300 Series Processor (Optional) - Intel W580 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
- Gigabyte MU72-SU0 Motherboard
- 3rd Generation Intel Xeon Scalable Processors
- Intel Xeon W-3300 Processor
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4 x PCIe 4.0 x16, 3 x PCIe 4.0 x8 (in x16)
- Built-in 2 x Gigabit LAN, 1 x Management LAN
- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6)
- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
- IMB-C621AA Industrial Motherboard
- 3 to 5 Years Life Time
- 3rd Gen Intel Xeon Scalable Processors
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor and Intel Xeon W-1200 Series Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel Processor
- Intel H410 Chipset
- DDR4 Memory
- M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
- IMB-Q470EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2035
- 10th/11th Gen Intel Processor
- Intel Q470E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0
- 2 x M.2 M Key, 1 x M.2 E Key, 1 x M.2 B Key
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- IMB-H310A Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel H310 Chipset
- DDR4 Memory
- SATA Hard Drive
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- 1 x PCIe Mini Card Slot
- Built-in Dual Gigabit LAN
TPM 2.0 Module (Optional)
- IMB-C246A Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- IMB-Q370JT2 Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel Q370 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- TPM Onboard
- Built-in Dual Gigabit LAN
- IMB-C246JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 8 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- TPM Onboard

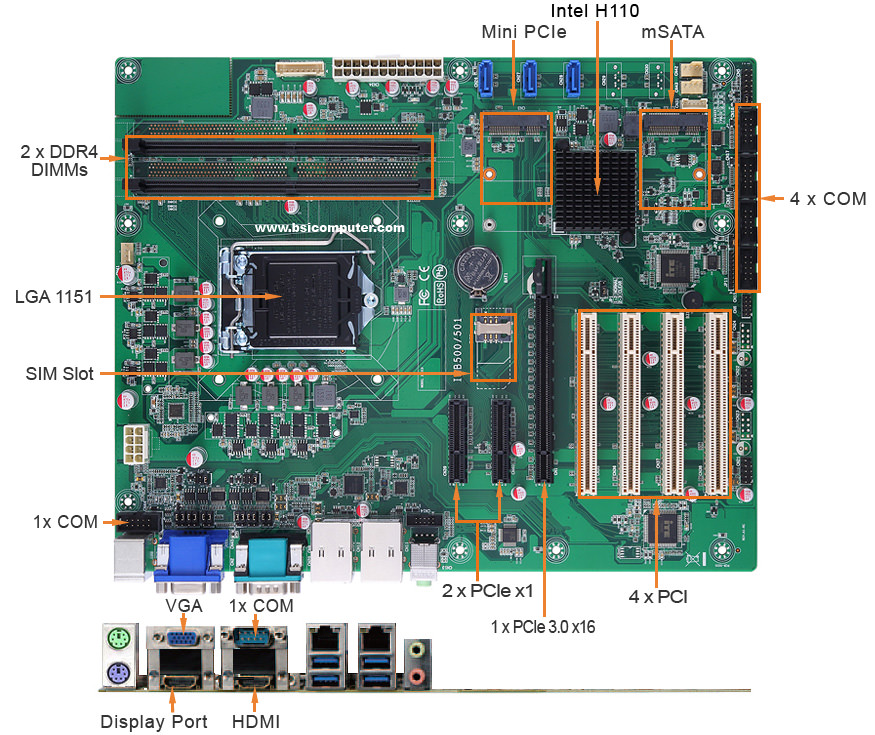

- IMB-H110A Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G3900 (2M Cache, 2.80 GHz)
- Up to Intel Core i7 Processor
- Intel H110 Chipset
- DDR4 Memory
- SATA Hard Drive
- Built-in VGA, HDMI, Display Port and Audio
- Built-in Dual Gigabit LAN
