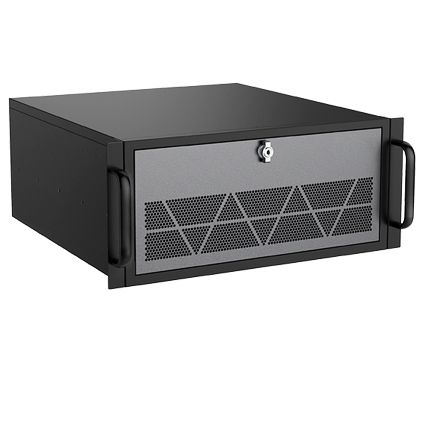

RMS550 5U Rackmount Computer
Features:
- 5U Rack Mount Industrial Computer
- ATX/Micro ATX Motherboard (12" x 9.6")
- 2 x 3.5" Internal Drive Bays
- 3 x 2.5" Internal Drive Bays
- 7 x Expansion Slots

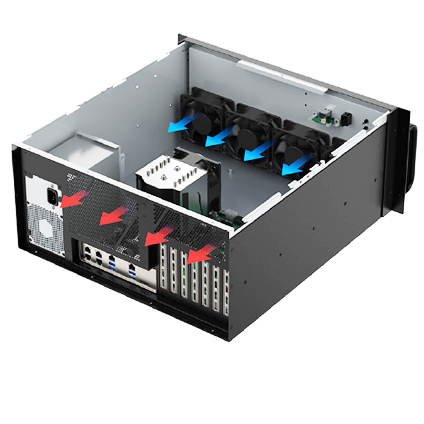

- 4 x 92mm Dual Ball-bearing Cooling Fans
- Front Access: 2 x USB Ports

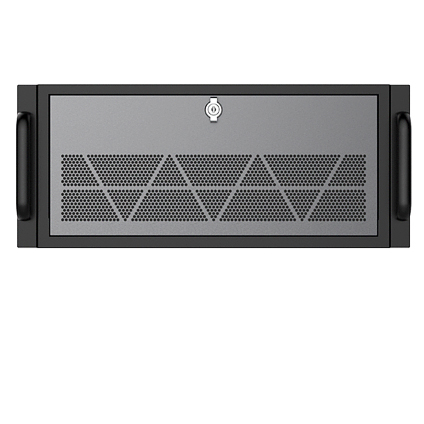

- Front Bezel with Locks
- Material of Main Chassis: Heavy Duty Metal
- Operating Shock: Half-sine Wave Shock 5G, 11ms, 100 Shocks per Axis (SSD)
- Operation Vibration MIL-STD-810G 514.6C-1 (SSD)
- RoHS Compliant Design
- 18.44" Deep Rack Mount PC

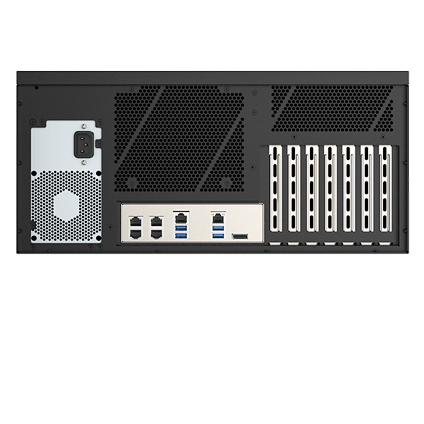

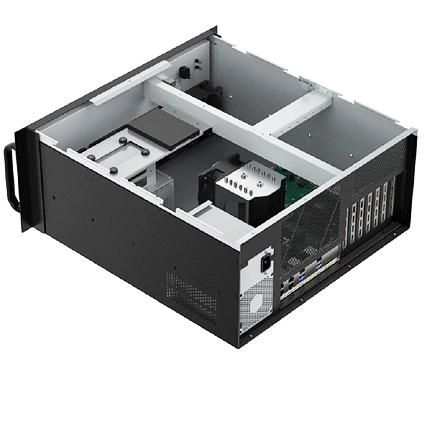

The RMS550 rack mount chassis is designed for robust performance and versatility. It supports an ATX motherboard and provides 7 expansion slots for added flexibility. The system includes 2 x 3.5" HDD and 3 x 2.5" HDD drive bays, along with 4 system fans for efficient cooling. For user interaction, it features a power switch, reset button, and indicators for power and HDD activity. Built with a heavy-duty metal construction, the chassis comes in a sleek black color with a silver frame. Its compact dimensions (562.5 x 431 x 200.2 mm) allow for easy integration into diverse setups. With an operating temperature range of 0°C to 60°C and resistance to vibration and shock, this chassis is CE/FCC compliant and ideal for demanding environments.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations
Model: ATX Rackmount Computer - RMS550
- Supermicro X14SAE ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- TPM2.0 Onboard
- 1 x Intel Thunderbolt 4 Type C
- Built-in 1 x GbE LAN, 1x 2.5GbE LAN
Base Price: |
$1,935.00 |

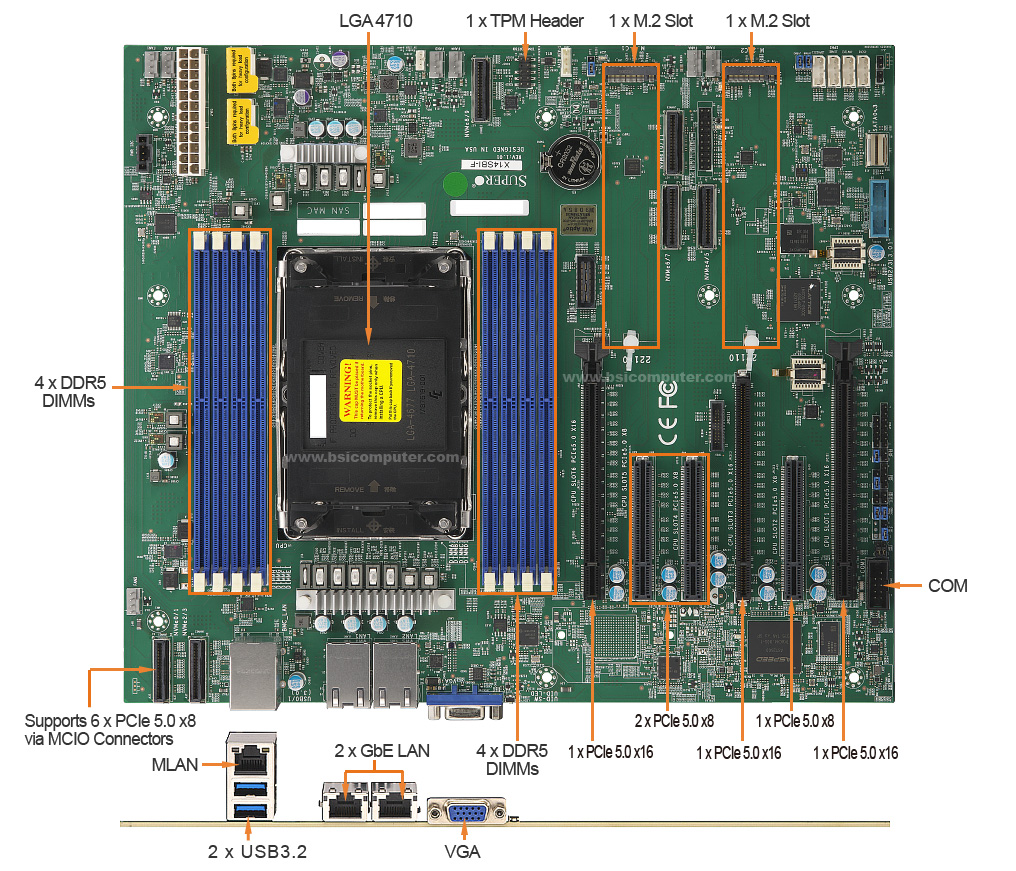

- Supermicro X14SBI-TF Motherboard
- Intel Xeon 6 Processors
- DDR5 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- Onboard TPM2.0
- 1 x TPM Header
- Built-in Dual GbE LAN, 1x IPMI LAN
Base Price: |
$2,725.00 |

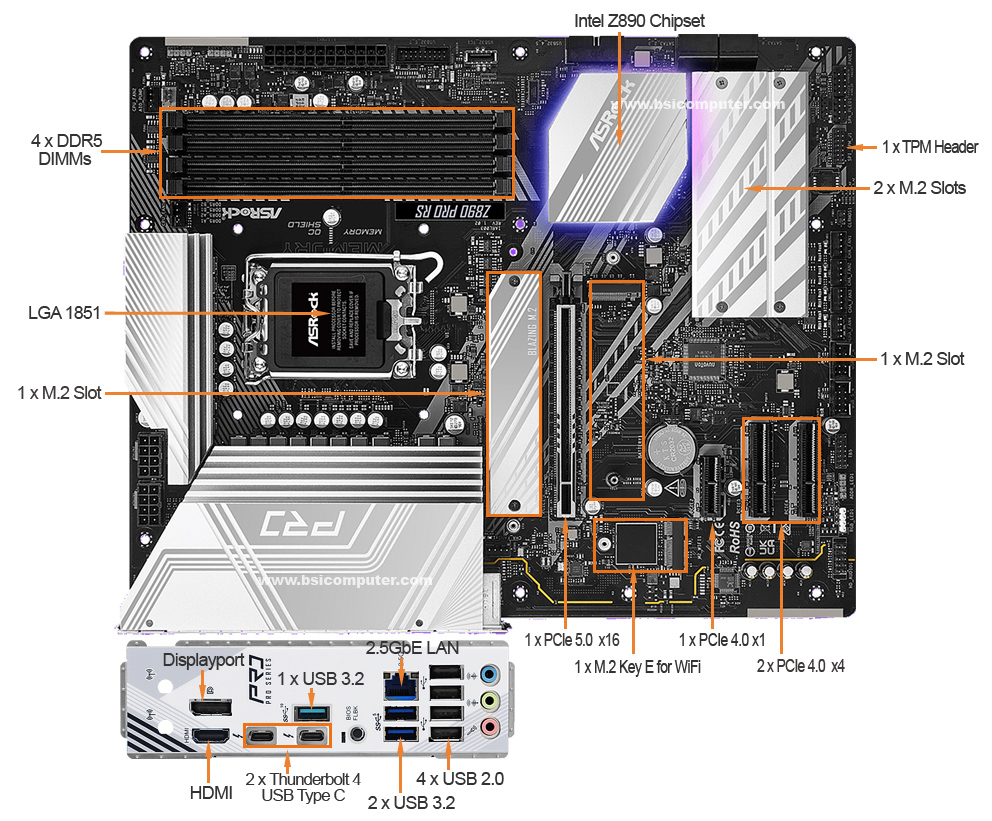

- ASROCK Z890 Pro RS ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 2.5GbE LAN
Base Price: |
$1,539.00 |

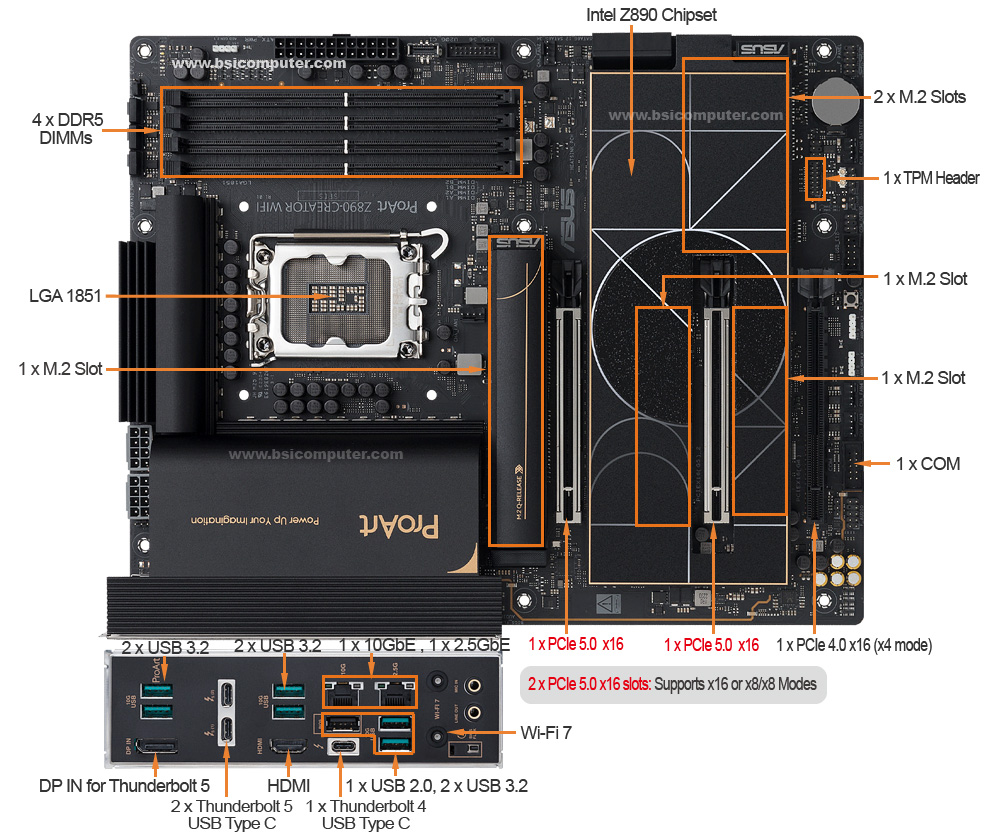

- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,909.00 |

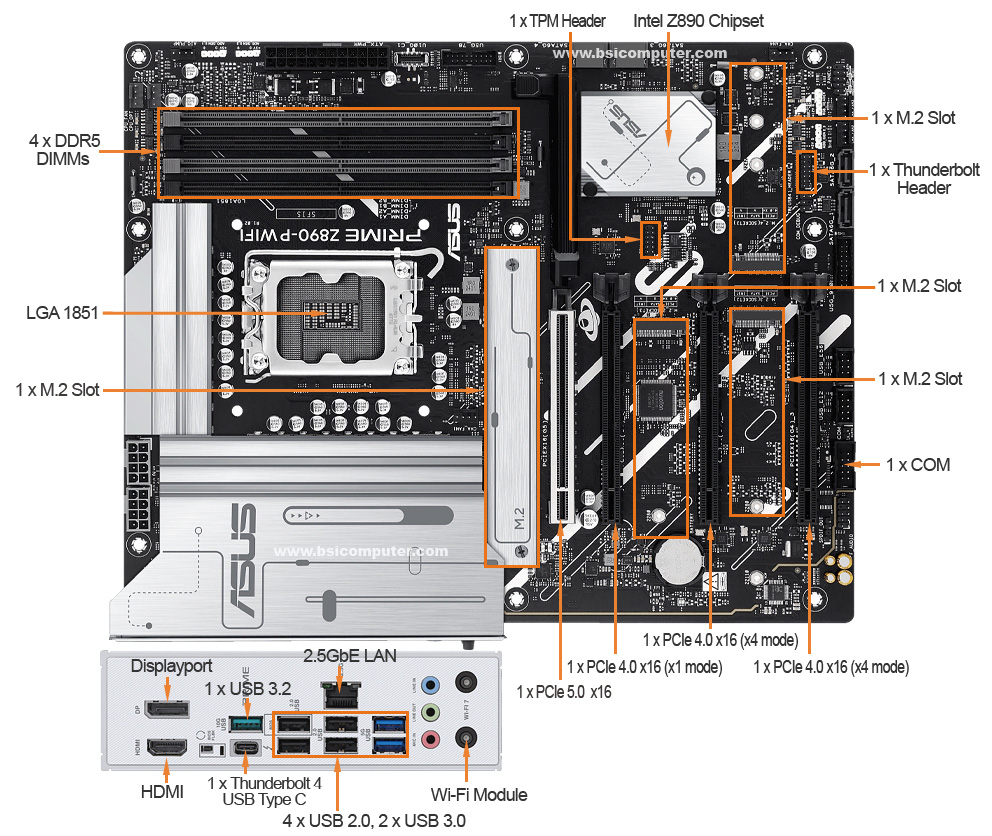

- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN
Base Price: |
$1,575.00 |
- ASRock IMB-X1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN
- Built-in 2 x GbE LAN, 1 x 10G LAN (ASRock IMB-X1715-10G, Optional)
Base Price: |
$1,825.00 |
- ASRock IMB-1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel Q870 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN
Base Price: |
$1,805.00 |

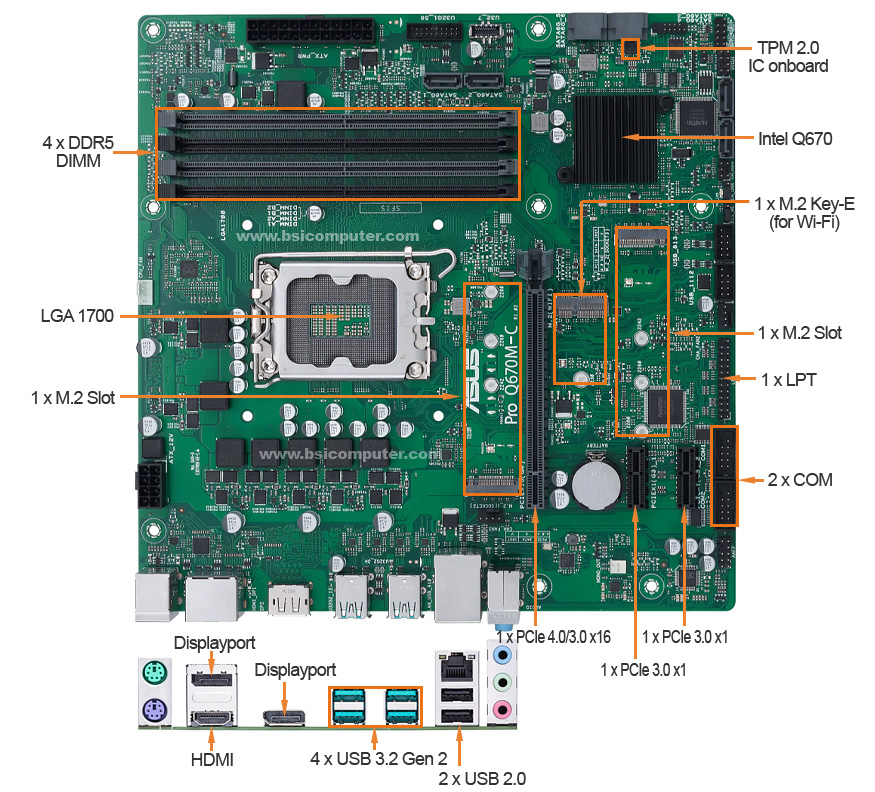

- ASUS PRO Q670M-C-CSM Motherboard
- 12th/13th Gen Intel Processor
- Intel Q670 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots, 1x M.2 Key E
- TPM 2.0 IC Onboard
- Built-in 1 x GbE LAN
Base Price: |
$1,295.00 |

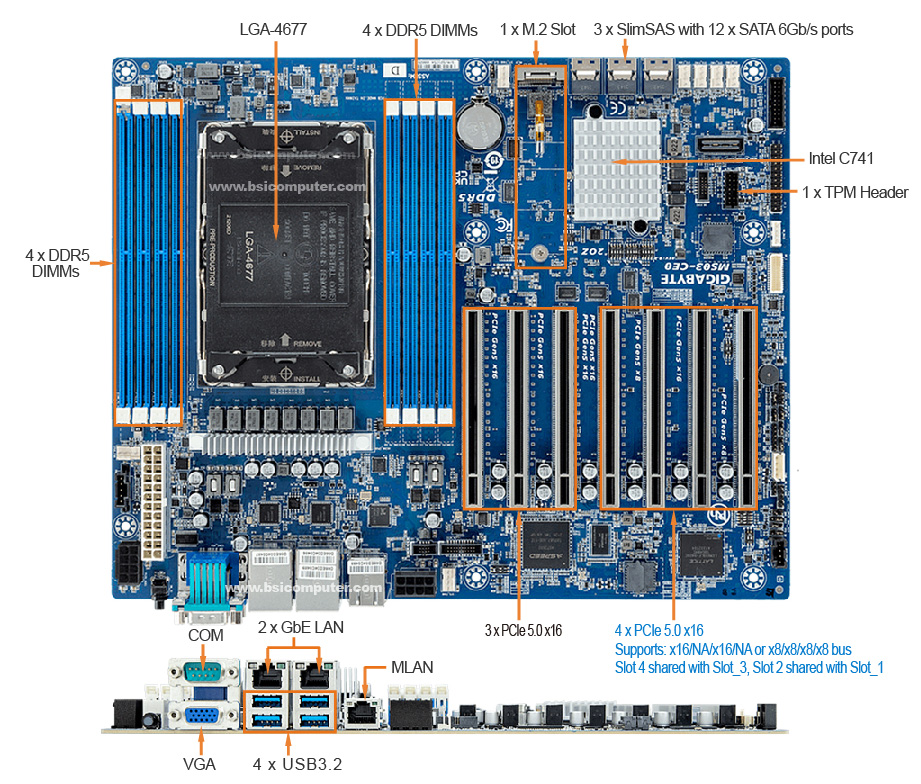

- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
Base Price: |
$2,839.00 |

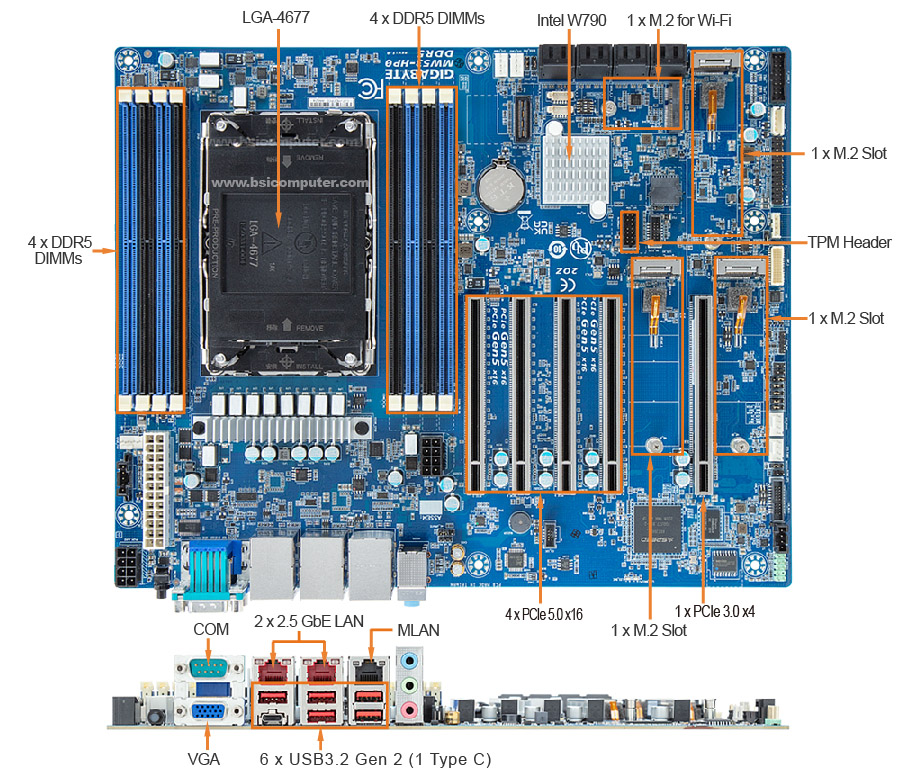

- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
Base Price: |
$2,479.00 |

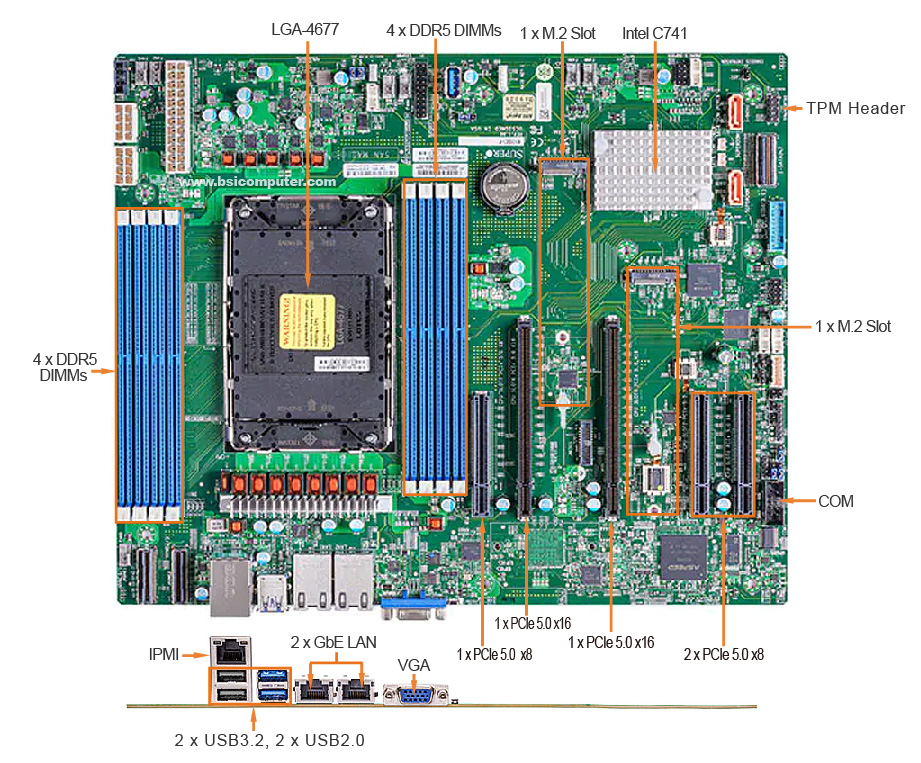

- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
Base Price: |
$2,649.00 |

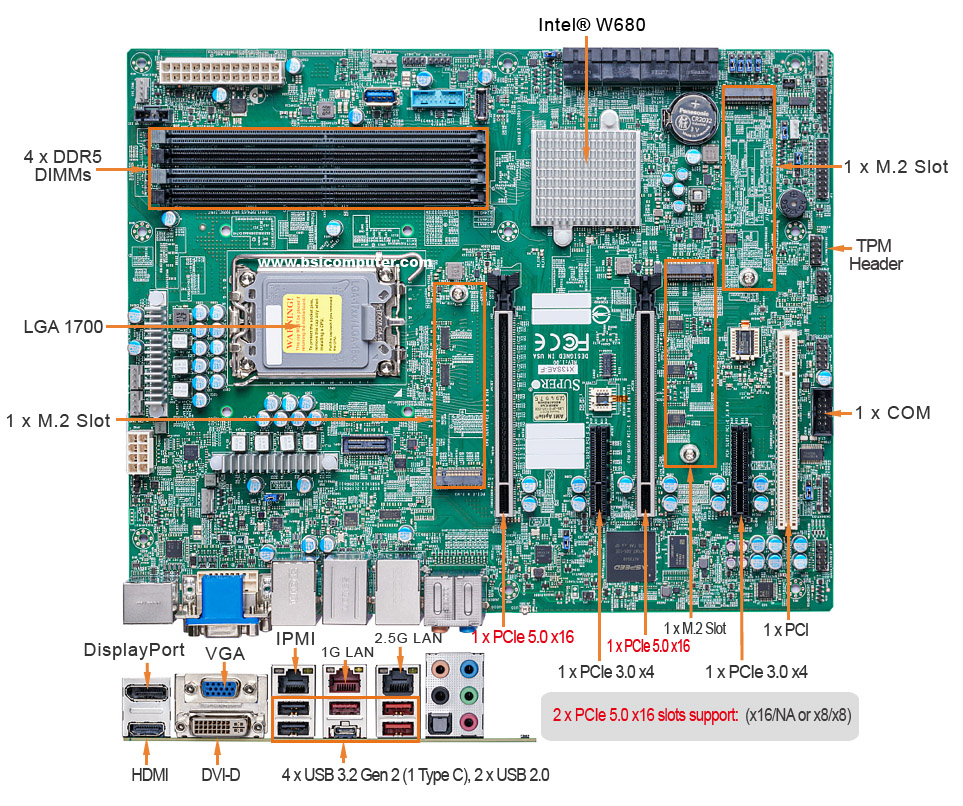

- Supermicro X13SAE-F Motherboard
- 12th Gen Intel Processor
- Intel W680 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 1 x TPM Header
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
Base Price: |
$1,705.00 |
Model: Industrial Rackmount Computer - RMS550

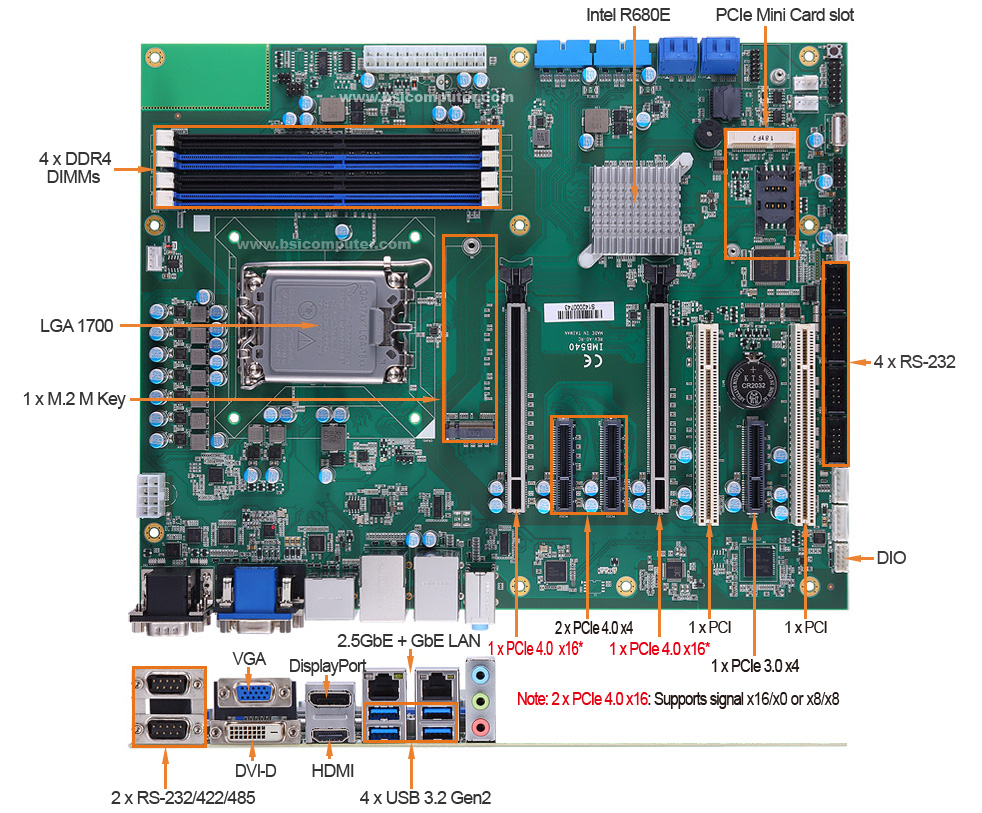

- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,665.00 |

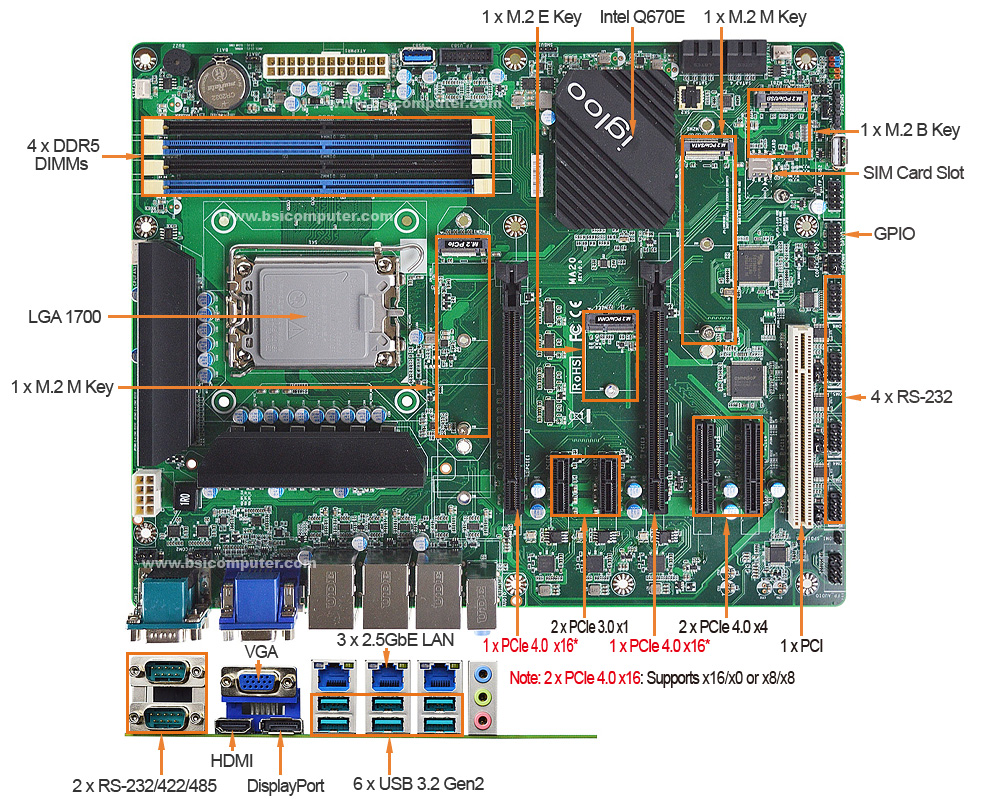

- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
Base Price: |
$1,525.00 |
