RMS575 4U Rackmount Computer
Features:
- 4U rack mount industrial computer.
- 5 drive bays (3 x 5.25" and 2 x 3.5" drive bays).
- ATX Mother board.
- 17.7" deep rack mount pc.
The RMS575 rack mount industrial computer is designed for industrial control and server applications in harsh industrial environments. The chassis is constructed of 18-gauge steel for ruggedness and corrosion resistance. A lockable-shielded door protects and affords easy access to the drives. Filtered ventilation fans prevent airborne dust particles from being drawn into the chassis.
Internally, RMS575 rack mount industrial computer chassis is equipped with five drive bays, three 5.25", one 3.5" drives are front accessible, one 3.5" drive is internal. A card retention system is included to securely hold add-on cards in their slots. Plus, hot-swap removable kit can be easily added on the drive bays.
The RMS575 rack mount pc supports industry standard ATX factor system boards. With this kind of versatility, the RMS575 rack mount pc can be customized for powerful industrial workstation, web server, back office server, proxy server and VPN gateway applications including collocation.
Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations

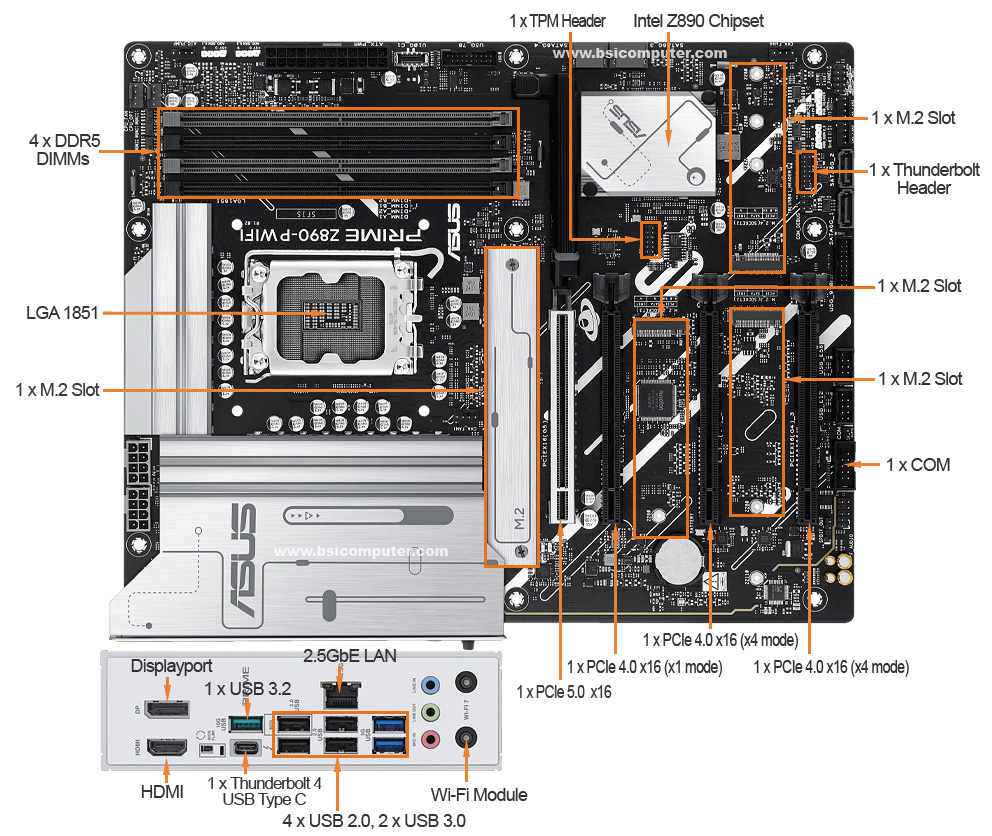

- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN
- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN

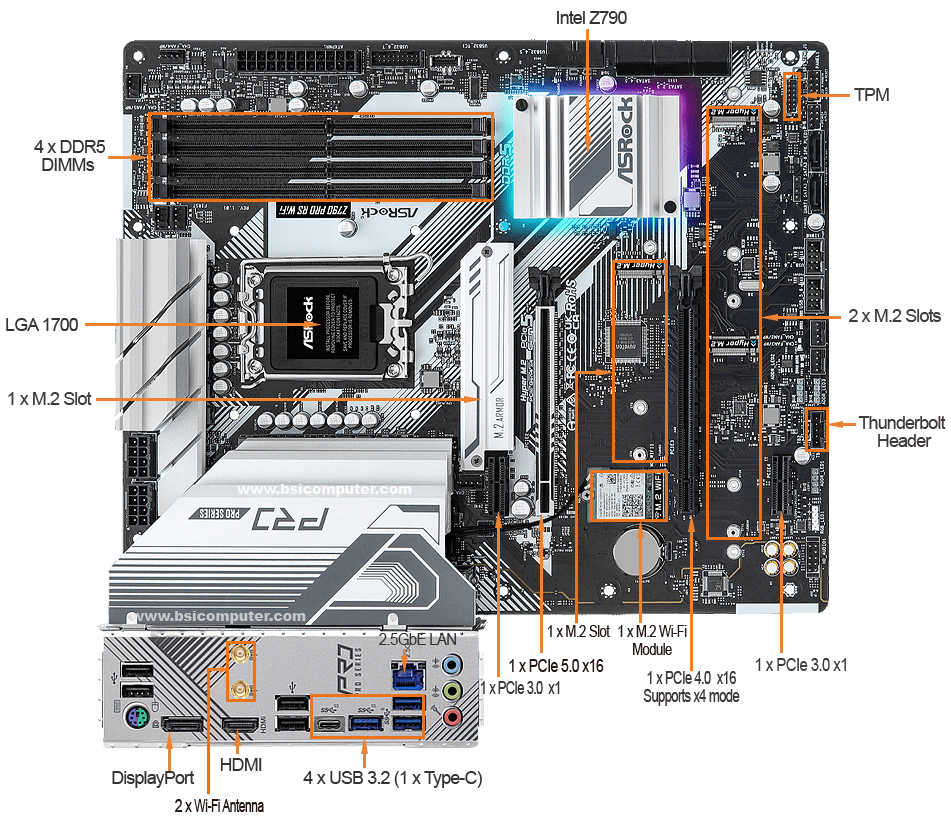

- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
- ASUS Q670EA-IM-A ATX Motherboard
- Long-Life Lifecycle Through Q1' 2030
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports
- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
- Supermicro X12SAE-5 Motherboard
- Intel Core i5-11400 Processor (12M Cache, 2.60 GHz)
Up to Intel Core i9 Processor (Optional)
Intel Xeon W-1300 Series Processor (Optional) - Intel W580 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
- Gigabyte MU72-SU0 Motherboard
- 3rd Generation Intel Xeon Scalable Processors
- Intel Xeon W-3300 Processor
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4 x PCIe 4.0 x16, 3 x PCIe 4.0 x8 (in x16)
- Built-in 2 x Gigabit LAN, 1 x Management LAN
- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6)
- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
- IMB-C621AA Industrial Motherboard 3 to 5 Years Life Time
- 3rd Gen Intel Xeon Scalable Processors
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor and Intel Xeon W-1200 Series Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
- IMB-Q470EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2035
- 10th/11th Gen Intel Processor
- Intel Q470E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0
- 2 x M.2 M Key, 1 x M.2 E Key, 1 x M.2 B Key
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- IMB-C246JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 8 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- TPM Onboard
- IMB-C246A Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel Processor
- Intel H410 Chipset
- DDR4 Memory
- M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
- IMB-Q370JT2 Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel Q370 Chipset
- M.2 NVME Solid State Drive
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- TPM Onboard
- Built-in Dual Gigabit LAN
- IMB-H310A Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel H310 Chipset
- DDR4 Memory
- SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- 1 x PCIe Mini Card Slot
- Built-in Dual Gigabit LAN
- IMB-Q170J Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G3900 (2M Cache, 2.80 GHz)
- Up to Intel Core i7 Processor
- Intel Q170 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- Built-in DVI-D, HDMI, DisplayPort and Audio
- Built-in Dual Gigabit LAN
