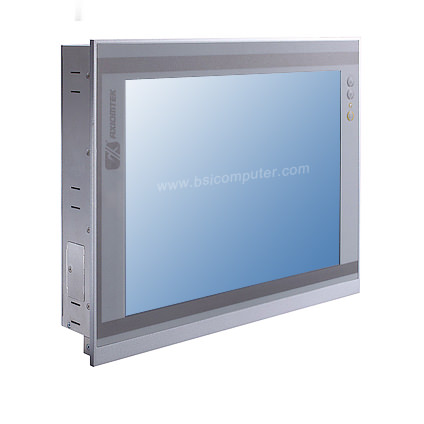

GOT3126T-834 - 12.1" Fanless Panel PC


  • 12.1" XGA TFT LCD Display
  • Intel® Atom™ E3827 1.75 GHZ Processor
  • Supports 1x 204-pin DDR3L SO-DIMM Memory up to 8 GB
  • Supports 2.5" SATA HDD & CFast™ or mSATA
  • Supports 2x USB2.0, 2x US3.0 & 3x COM Ports, 2x Gigabit Ethernet Ports
  • Adjust RS-232/422/485 Setting via BIOS
  • Supports Dual Express Mini Card Slots
  • Supports Panel Mount; and Wall Mount, VESA Arm, Desktop Stand (Optional)
  • Supports WLAN/3G Module and Antenna (Optional)
  • Supports Wide Temperature Range of -4°F ~ +131°F
  • IP65 NEMA 4 Rugged Protection, Aluminum Front Bezel

The GOT3126T-834 is a Fan-less Panel PC constructed with an IP65 rated aluminum front bezel, which ensures NEMA 4 rugged protection. The 12.1" XGA LCD display has a resolution of 1024 x 768 at 500nits. Supporting Intel's Atom E3827 1.75GHz processor and one 204-pin SO-DIMM DDR3L-1333/1600 for up to 8GB system memory, the GOT3126T-834 is sure to handle the work. Thanks to its design, a wide temperature range is supported from -20°C to +55°C. Internally there is sufficient room for a 2.5" SATA HDD and Cfast or mSATA. Dual PCI Express Mini Card slots are also supported.

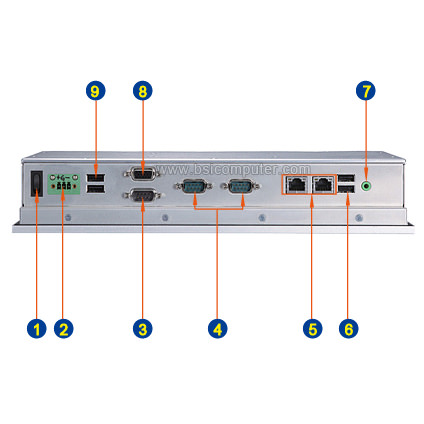

The external I/O consists of three RS-232/422/485 COM ports, two USB 3.0 and two USB 2.0 as well as two-10/100/1000Mbps. There is also an option for WLAN/3G module and antenna. The GOT3126T-834 accepts anywhere from 9~36VDC voltage and offers over current protection.

Barebone & Base Configurations

GOT3126T-834 Fanless Panel PC

  • 12.1" 1024x768 500 nits XGA TFT LCD w/ Resistive Touch Screen
  • Intel® Atom™ E3827 1.75 GHZ 1.6GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0 Port
  • 3 x RS-232/422/485 (DB9)
  • 2x PCIe Mini Card Slots
  • 802.11 a/b/g/n Wireless (Optional)
  • 9-36VDC Terminal Block Connector
  • 120W 24V AC-DC Power Adapter w/ Bare Wire (Optional)

Barebone Only:
