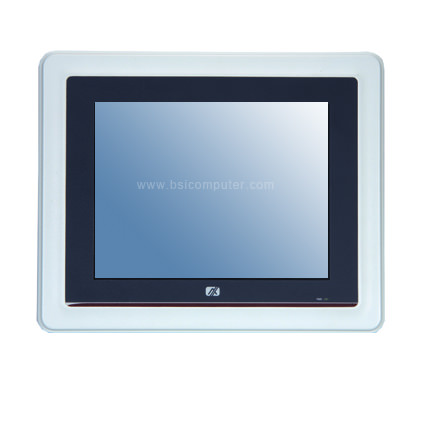

GOT5840T-845 - 8.4" Fanless Panel PC

Features:

  • 8.4" SVGA TFT LCD Display with LED Backlight
  • Fanless Design with Intel® Celeron® N3060 1.6 GHz Processor (up to 2.48 GHz)
  • Supports WLAN Module & Internal Antenna
  • Supports 2x USB3.0, 2x COM Ports, 2x Gigabit LAN Ports
  • Easy for Expansion: 2x PCIe Mini Card Slots

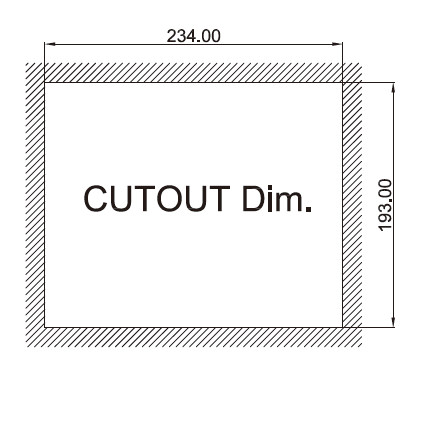

  • Supports Panel Mount, Wall Mount, VESA Arm, Desktop Stand (Optional)
  • Ultra Slim & Super Light Design
  • Plastic and IP65-Rated Front Bezel

The GOT5840T-845 offers a Resistive type 8.4" SVGA TFT LCD display backlit by LED and surrounded by a plastic IP65-rated front bezel. The Fan-less cooling system supports Intel's N3060 Celeron processor (up to 2.48 GHz) and one 204-pin SO-DIMM up to 8GB. The ultra slim and super light design has the optional to be used as a panel mount/wall mount/VESA arm or use a desktop stand.

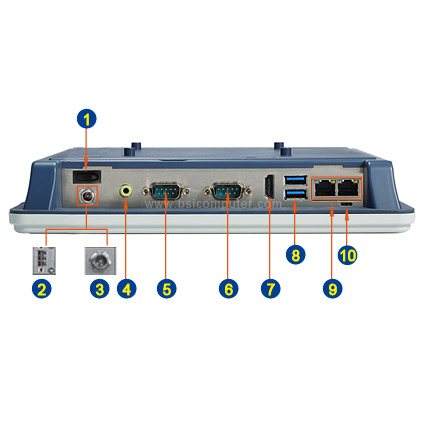

Two PCI Express Mini Cards as well as two Gigabit LAN are standard. There are also two USB 3.0 ports and two COM ports available. The two COM ports support RS-232 while COM 2 additionally supports 422/485. One HDMI provides Video out while an mSATA slot is available for storage. Two versions of the GOT5840T-845 are available. The first is an AC version (100~240V AC-DC 60W power adapter or 25 W) and the second a DC version (9~36VDC with over current protection fuse).

Barebone & Base Configurations

GOT5840T-845 Fanless Panel PC

  • 8.4" 800 x 600 350 nits SVGA TFT LCD LCD with LED Backlight Touchscreen
  • Intel® Celeron® N3060 1.6 GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 128GB SATA III 6Gb/s mSATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0
  • 1 x RS-232(DB9), 1 x RS-232/422/485 (DB9)
  • 2x PCIe Mini Card Slot
  • Wireless Module (Optional)
  • 9-36VDC Terminal Block Connector
  • 60W 100-240V AC-DC Power Adapter (Optional)

Barebone Only:

$745.00

Configured:

$815.00

Customize
