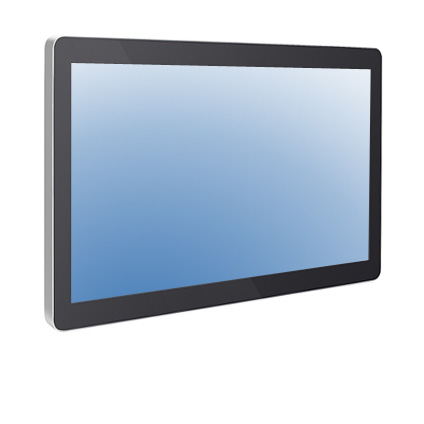

ITC150WM 15.6" FHD TFT Modular Panel PC with Intel® Smart Display Module (SDM) CPU Card

Features:

  • 15.6" Full HD TFT-LCD
  • Aspect Ratio: 16:9; Brightness: 300 nits
  • Slim Bezel Shape Under 40 mm Thickness
  • Projected Capacity Touch Supported, 10-point Touch
  • Swappable CPU Card Design
  • Supports Intel® SDM CPU Card
  • Metal Frame Structure for Various Application
  • Supports add-on Modules and Mounting Kits (optional)

The ITC150WM is a new entry to the slim bezel modular panel PC line of products. The panel comes equipped with a 15.6 inch FHD TFT-LCD screen and utilizes projected capacitive multi-touch functionality. The aspect ratio for the screen is 16:9 and displays at a brightness of 300 nits. As previously mentioned, since the panel is a slim model the bezel is only at a thickness of 40mm. The motherboard built into the panel supports the Intel SDM CPU card, which in turn can support Quad core Pentium processors or Dual core Celeron processors. By default the panel comes installed with LPDDR4 2400MHz memory with 4GB but an optional capacity of 8GB is also available. There is also an expansion interface m.2 key for a WIFI card available to the user if desired.

Base Configurations

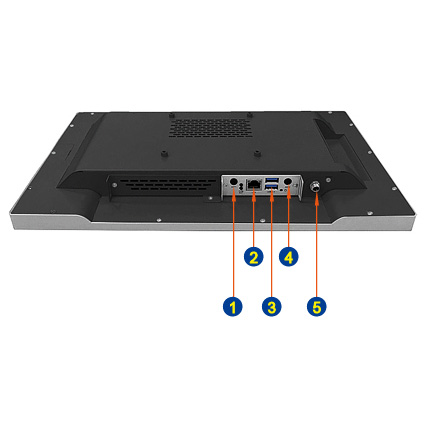

ITC150WMSDM300S-N4200 Fanless Panel PC

  • Model: ITC150WMSDM300S-N4200
  • CPU Card: SDM300-S
  • 15.6" 1920x1080 300 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
  • Intel® Pentium® Processor N4200 (2M Cache, up to 2.5 GHz)
  • 4G DDR4 Memory Onboard
  • eMMC 64GB Onboard
  • 1 x GbE LAN, 3 x USB 3.0, 2 x USB 2.0, 2 x Speaker
  • 2 x 12 VDC-in Power Connector
    96W AC to DC Power Adapter

Configured:

$1,325.00

Customize

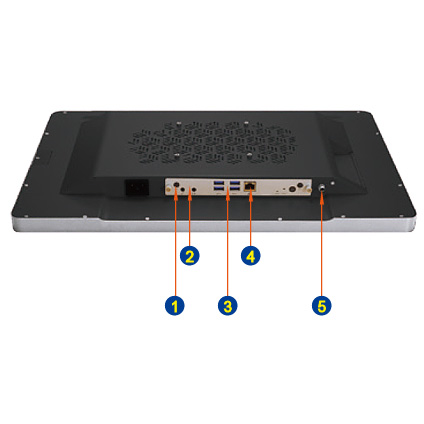

ITC150WM- SDM500L- 8265U Fanless Panel PC

  • Model: ITC150WM- SDM500L8265U
  • CPU Card: SDM500-L
  • 15.6" 1920x1080 300 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
  • Intel® Core™ i5-8265U Processor (6M Cache, up to 3.90 GHz)
  • 4G DDR4 SO-DIMM Memory
  • 256GB M.2 2242 SATA Solid State Drives
  • 1 x GbE LAN, 5 x USB 3.0, 2 x USB 2.0, 2 x Speaker, 1 x Mic-in, 1 x Line-Out
  • 2 x 12 VDC-in Power Connector
    96W AC to DC Power Adapter

Barebone Only:

$1,929.00

Configured:

$2,035.00

Customize
