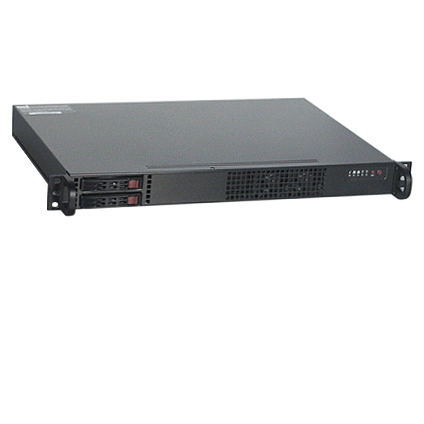

RMS1510 1U Rackmount Computer
Features:
- 1U Rack Mount Computer
- Micro ATX Form Factor Motherboard
- 2 x 2.5" Hot-Swap Drive Bays
- 3 x 8500 RPM Cooling Fans
- 1 x Low-profile Expansion Slot
- 11.3" Short-depth Rack Mount Computer

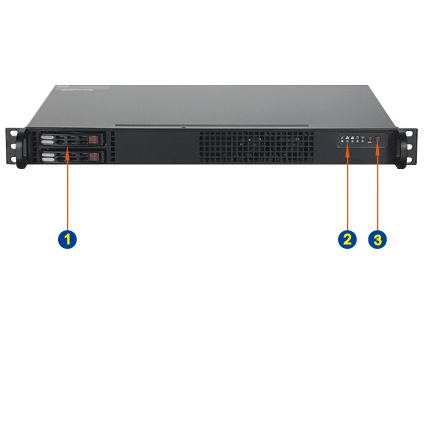

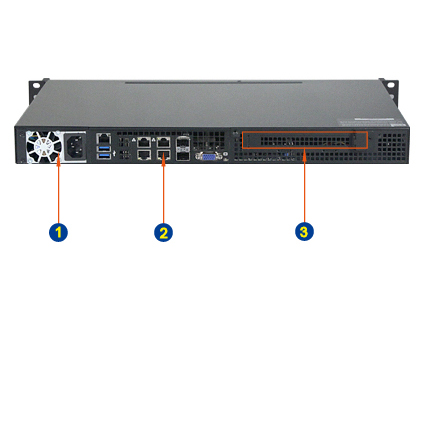

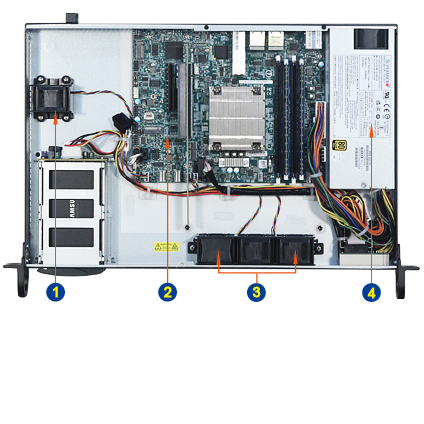

The RMS1510 1U server chassis is a compact yet powerful solution designed for high-performance computing in space-constrained environments. It features a 200W 80Plus Gold-certified power supply for energy efficiency and a low-noise design, making it suitable for office or lab deployments. The chassis includes two 2.5" hot-swap SAS/SATA HDD bays for flexible storage, one low-profile PCIe expansion slot, and three 8500 RPM cooling fans to ensure optimal thermal management. Front-panel controls include a power switch, reset button, and five LED indicators for easy monitoring.

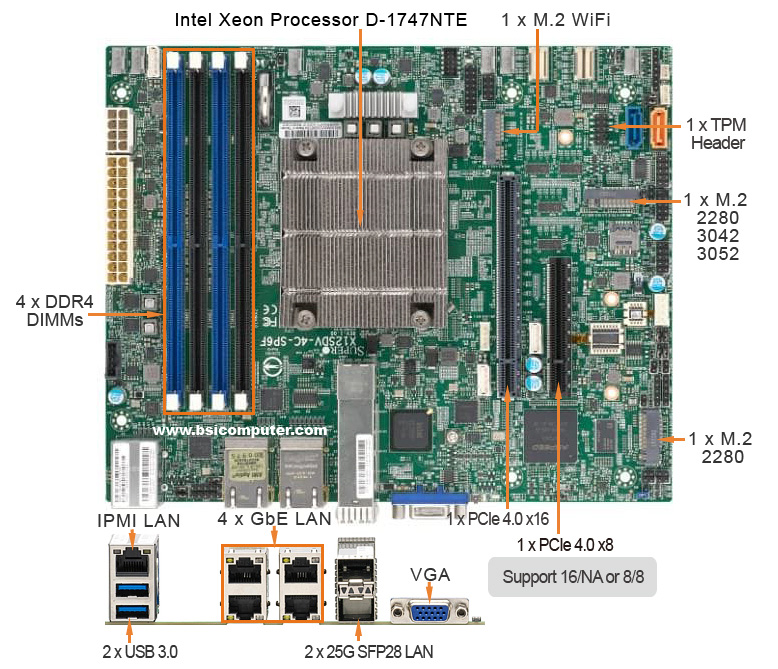

Included with the system is the Supermicro X12SDV-10C-SP6F-0 motherboard, a feature-rich platform powered by an Intel Xeon D-1747NTE processor (80W TDP) with Intel Quick Assist Technology. It supports up to 256GB of DDR4-2933 ECC RDIMM across four DIMM slots and offers flexible expansion with PCIe 4.0 x16 (or dual x8) slots and multiple M.2 slots (M-Key, B-Key, and E-Key) for NVMe, SATA, and wireless modules. Storage connectivity includes 10 SATA3 ports (RAID 0,1,5,10) and two SlimSAS NVMe x4 ports. Networking is robust, with quad 1GbE RJ45 ports (Intel I350-AM2 & i210-IT) and dual 25G SFP28 ports via the SoC, making it ideal for high-speed data transfer and virtualization workloads. This combination of chassis and motherboard delivers a power-efficient, scalable, and high-performance server solution.
Need a Custom Solution Not Offered Online? Click the Button Below.
Base Configurations
- Supermicro X12SDV-10C-SP6F Motherboard
- Intel Xeon D-1747NTE Processor (15M Cache, 2.50 GHz)
- DDR4 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 1 x TPM Header
- Built-in 4 x Gigabit LAN, 2 x SFP28 25 GbE LAN, 1x IPMI LAN
