RMS3842 4U Rackmount Computer


  • 4U Rack Mount Industrial Computer
  • Supermicro SuperChassis: 842XTQC-R606B
  • 5 x 3.5" SAS3 / SATA3 Hot-swap HDD Bays
  • 3 x 5.25" External Drive Bays
  • 1 x Slim DVD-ROM Drive Bay
  • 7 x Full-height, Full-length and 4x Full-height, Half-length Expansion Slots
  • Dual-channel Air Duct Design
  • 2 x Front USB 3.0 Ports & 1x COM Port
  • Front intake Cooling Fan and Optional Front Bezel with Removable Air Filter
  • Power Switch, Reset Switch & 6 x LED Indicators
  • 600W Redundant Power Supplies Platinum Level (94%)

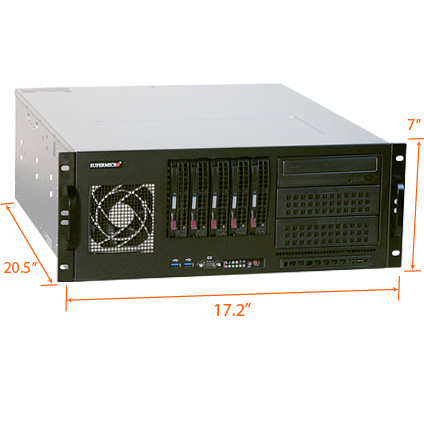

  • 20.5" deep rack mount pc.

The RMS3842 is a unique 4U rack mount server that supports 11 PCIe slots on a EATX motherboard. It is the best industrial server solution for Surveillance DCR;GPU support server: Flash Array server; Video and Music Production; Network Telephony and Data Acquisitions.

The RMS3842 supports Dual Intel Scalable processors. 5x 3.5" SAS3/SAT Hot-swap removable kit comes as standard; and 3 x 5.25" external drive bays can be filled with more removable kits to expand storage capacity.

Need a Custom Solution Not Offered Online? Click the Button Below.

Base Configurations

4U Rackmount Computer with Supermicro X11DPX-T Motherboard

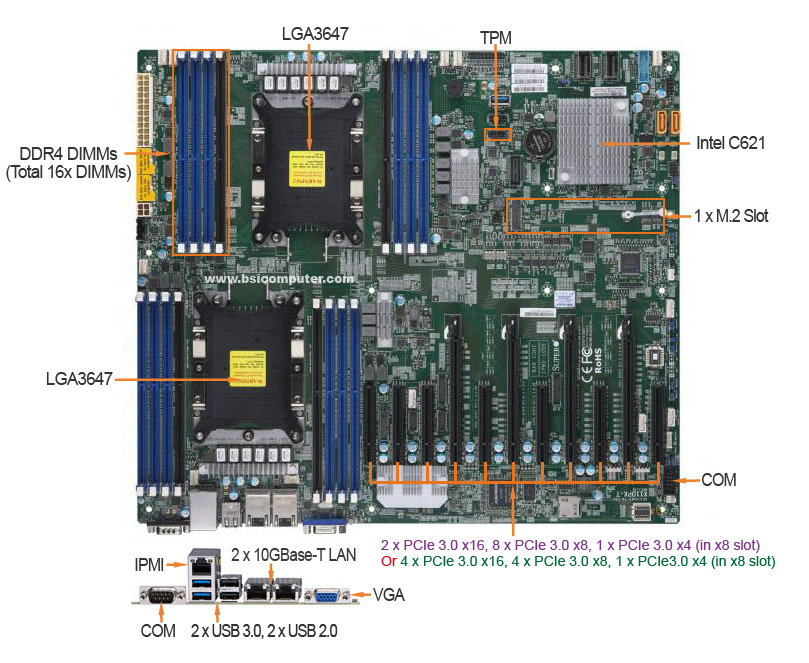

  • Supermicro X11DPX-T Motherboard
  • 2 x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • 32GB(4 x 8GB) DDR4 ECC Registered Memory
  • 5 x 3.5" Hot-swap Drive Bays
  • 250GB M.2 NVME Solid State Drive
  • 24x SATA DVD+/-RW Optical Drive
  • 1 x TPM Header
  • Built-in Video
  • Built-in 2 x 10GBase-T LAN Ports, 1 x IPMI LAN
  • 600W Redundant Power Supply, Platinum Level Certified
