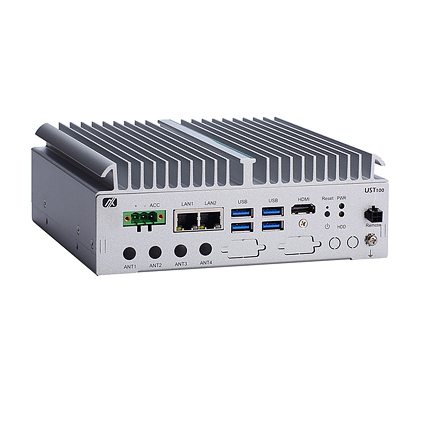

UST100-504-FL Embedded PC with 7th/6th Gen Intel Core/Pentium/Celeron CPU for Video Analytics in Vehicle PC Market


  • CE, FCC Certified; ISO 7637-2 Compliant
  • LGA1151 7th/6th Gen Intel® Core™, Pentium® and Celeron® Processors (up to 35W)
  • Intel® H110 Chipset
  • 1 x DDR4-1866/2133/2400 SO-DIMM, up to 16GB
  • 1 x 2.5" SATA Drive Bay
  • Expansion Capability for 3 x Mini PCIe Slots and 2 x Internal SIM Slots
  • Single-sided I/O Design for Easy Maintenance
  • 12/24 VDC Power Input, with Power Management (ACC Ignition)
  • Fanless and Wide Operating Temperatures from -40°F to +140°F
  • The UST100-504-FL is a Fanless Embedded system running on the Intel H110 chipset. The motherboard for the unit comes installed with an LGA1151 socket, which supports 7th or 6th generation Intel Pentium and Celeron processors. Storage options for the system comes with a 2.5” drive bay or an mSATA slot and the available RAM uses a SO-DIMM socket, which can provide memory up to 16GB.

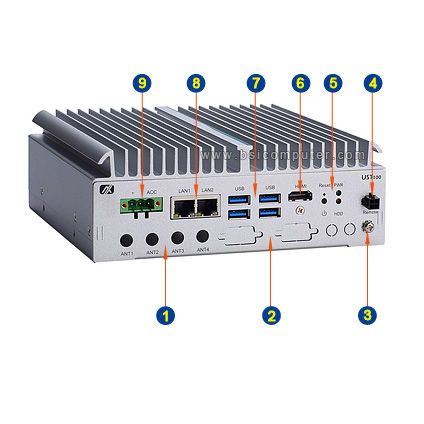

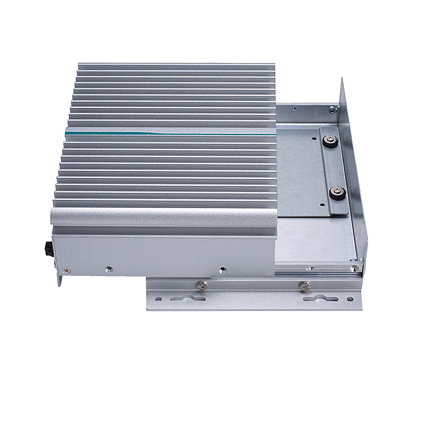

    The I/O interface for the system comes installed with 1 RS-232 port, and 4 USB 3.0 ports. Display options are provided with an HDMI port. Operational endurance is also flexible with an operating temperature anywhere between –40 to 60 degrees Celsius and a vibration endurance of up to 500 Hz. The system can also support power voltage ratings of 19 to 24 VDC. The system can be mounted onto a surface using an optional wall mounting kit.

    Barebone & Base Configurations

    UST100-504-FL Fanless Embedded Vehicle PC Configurations

    • Intel® Core™ i5-7500T Processor (6M Cache, 2.70 GHz)
      Intel® Core™ i7-7700T Processor (Optional)
    • 4GB DDR4 SO-DIMM Memory
    • 250GB 2.5" SATA Solid State Drive
    • 1 x RS-232/422/485
    • 1 x DB9 4-in/4-out Programmable DIO
    • 4 x USB 3.0
    • 2 x GbE LAN
    • 2 x Full-size PCIe Mini Card Slots, 1 x Half-size PCIe Mini Card Slot, 2 x SIM Sockets
    • TPM 2.0
    • HDMI and Audio
    • 12/24 VDC Power Input, ACC Ignition

    Barebone Only:
